Edc15c2 pinout

taffy · Unread post by **taffy** » 17 Apr 2019, 09:17

Hi does anyone have a pinout for edc15c2 its a 3 plug off a 2.2 hdi
Many thanks

taffy · Unread post by **taffy** » 17 Apr 2019, 09:30

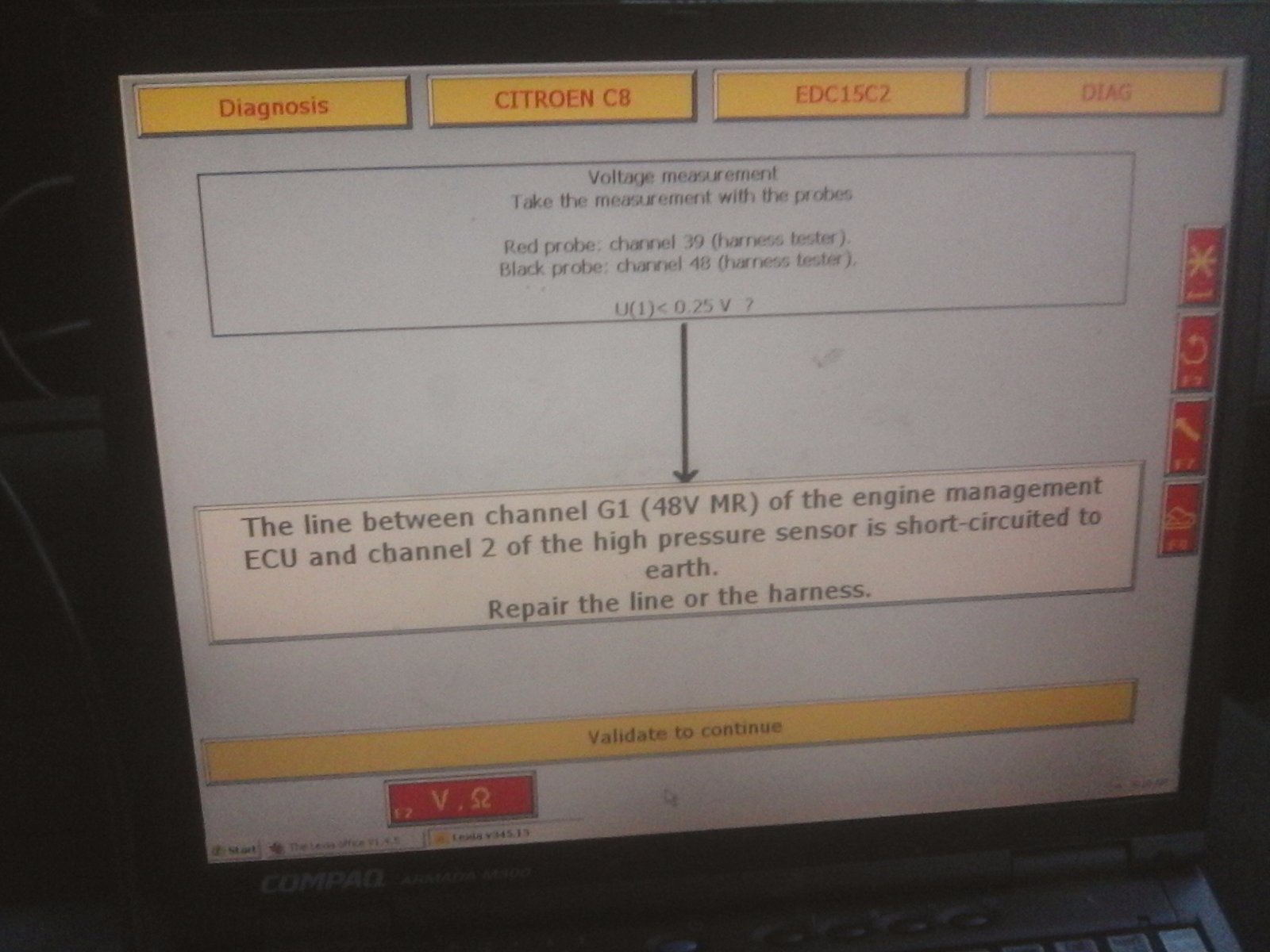

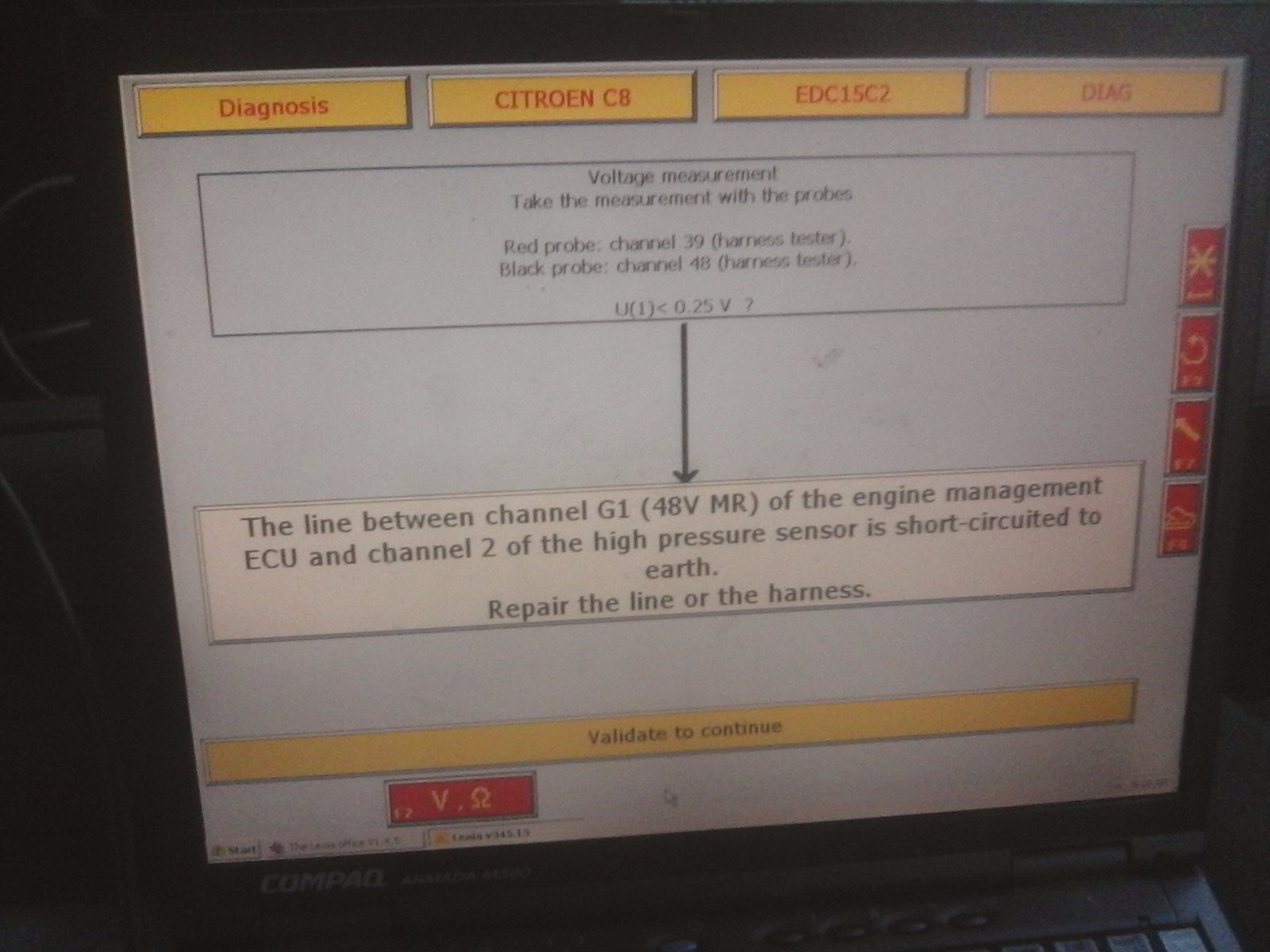

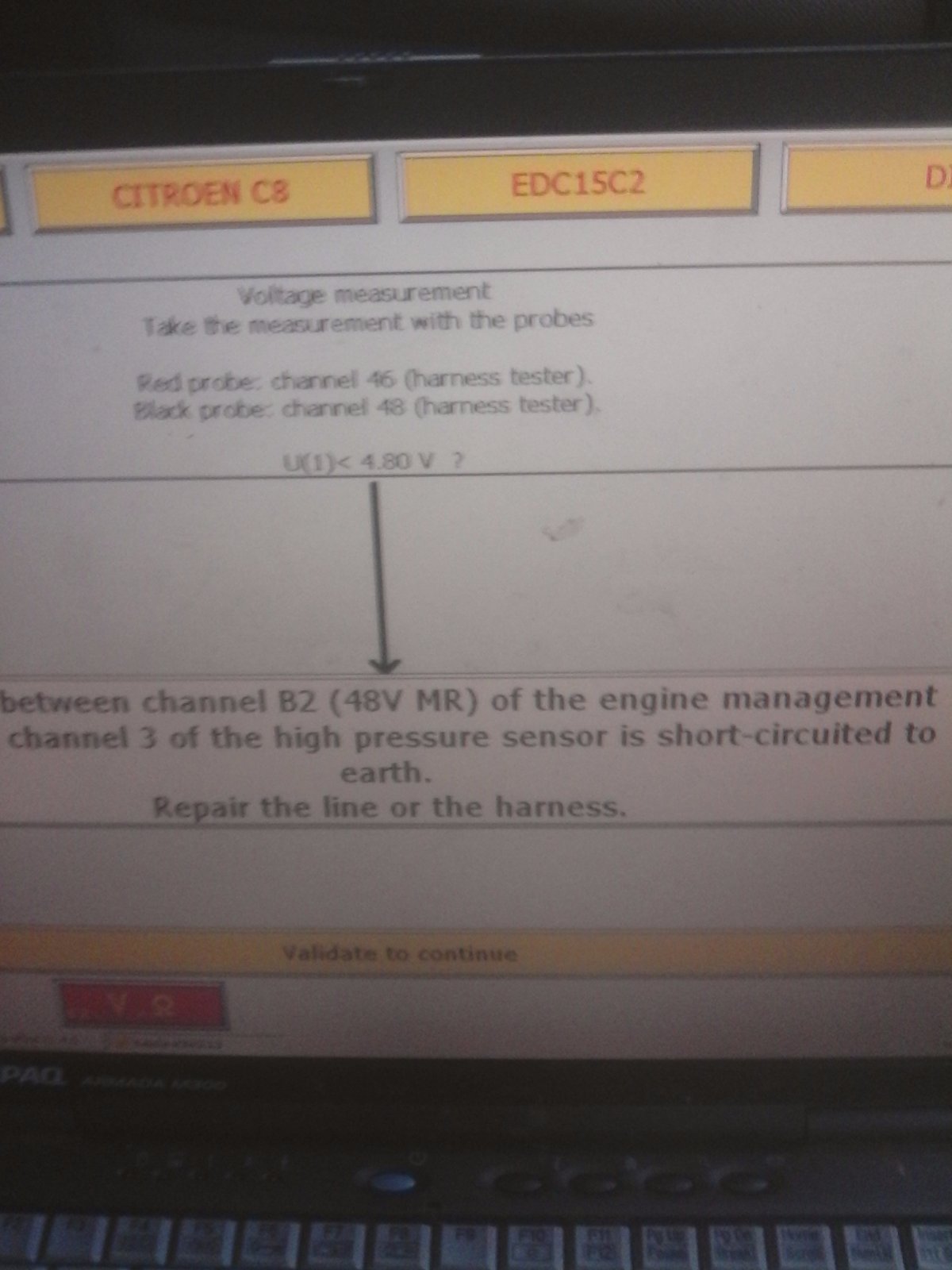

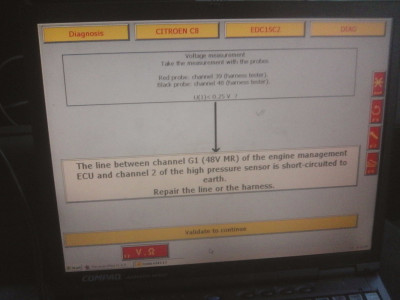

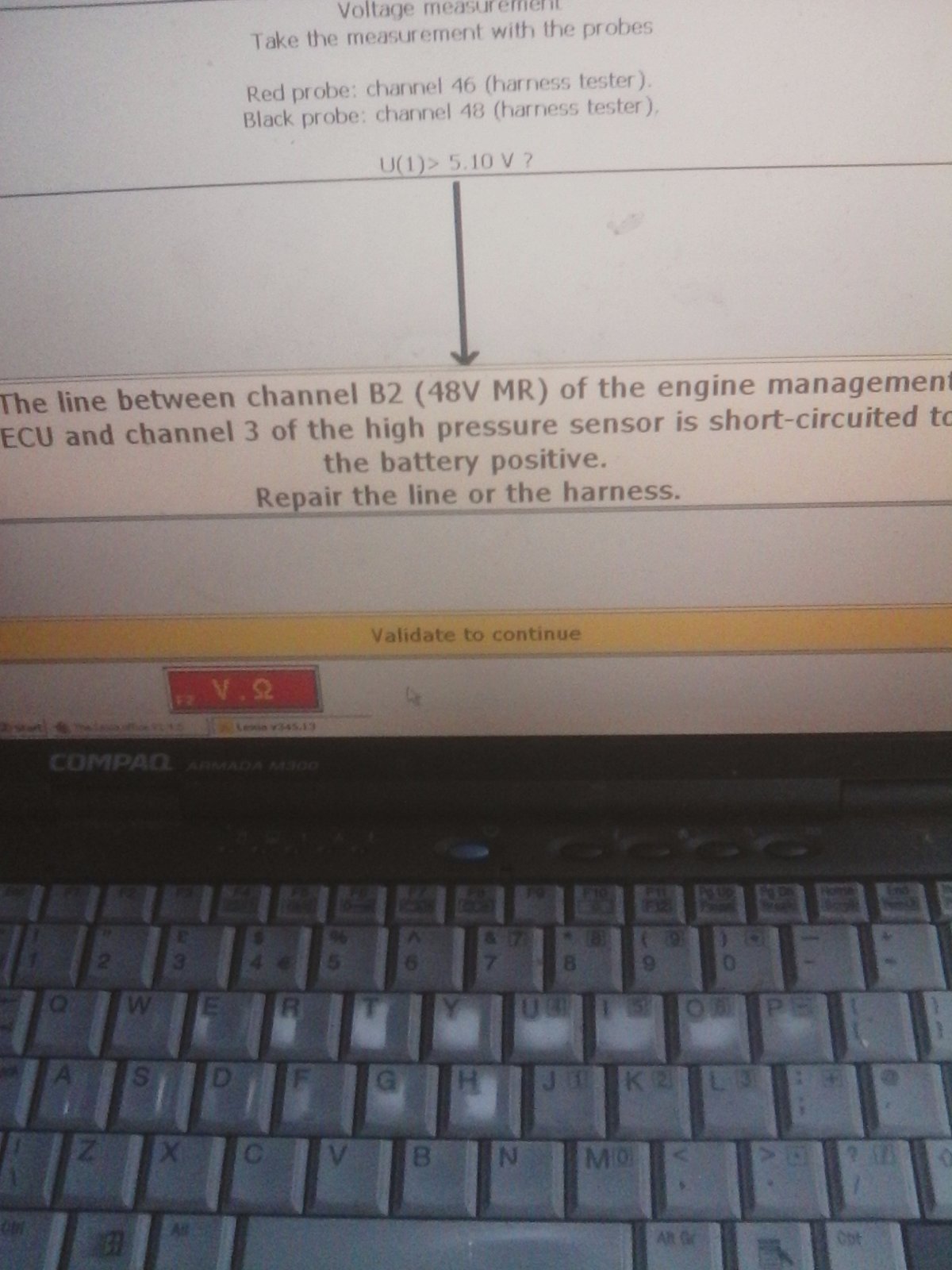

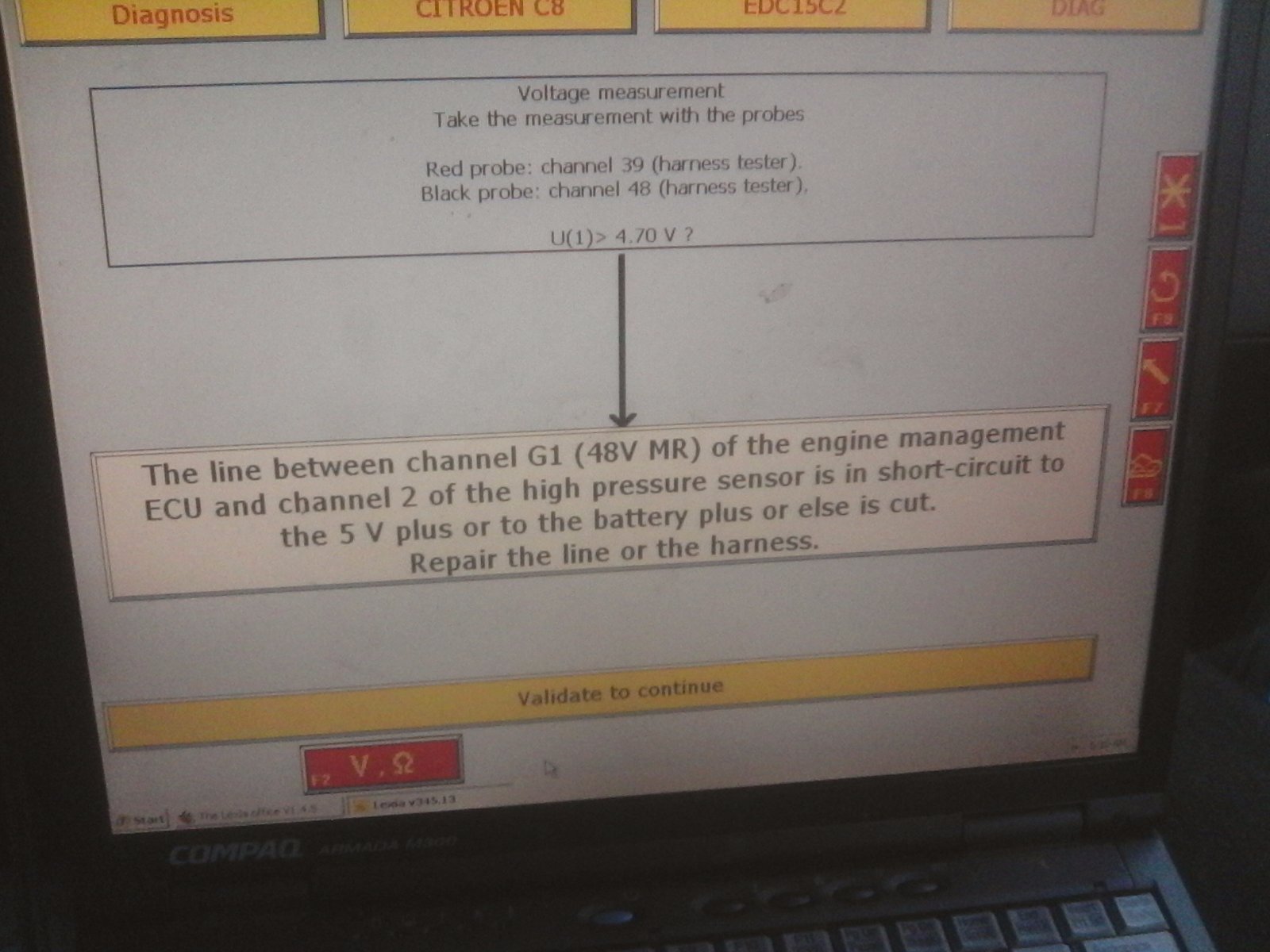

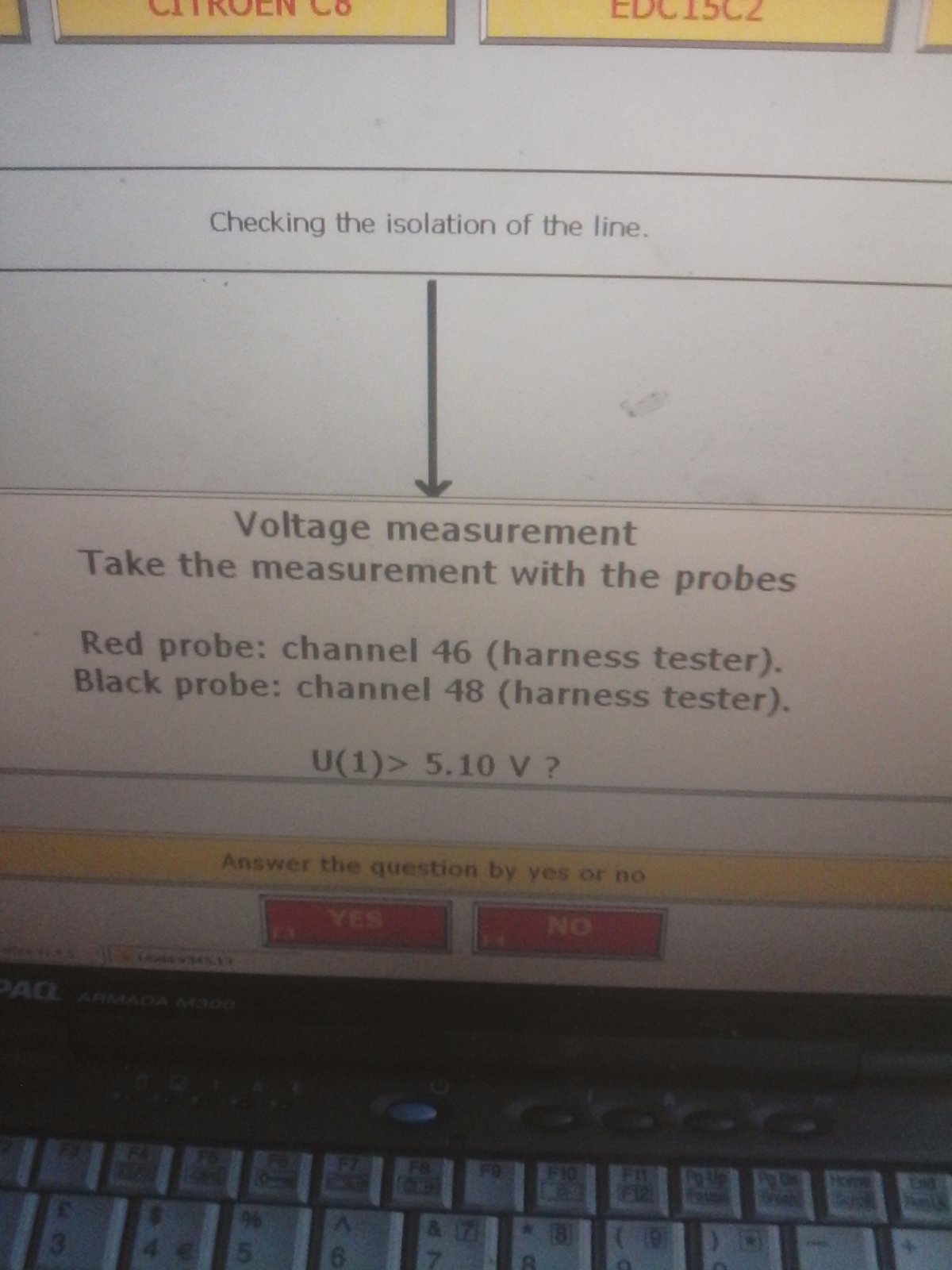

Heres what lexia suggests for fuel pressure signal fault

GiveMeABreak · Unread post by **GiveMeABreak** » 17 Apr 2019, 11:21

Ok, here you go:

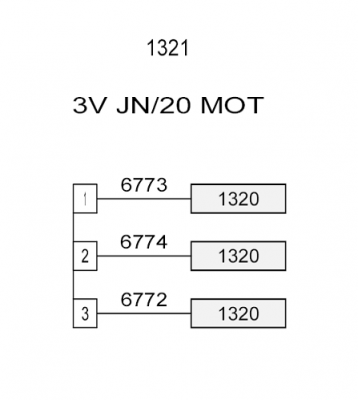

This is the 3 Pin High Pressure Diesel sensor connection to the Engine ECU as described - which should be a 3 pin yellow connector, then under that is the 20 MOT harness it runs through and finally, the location of the 20 MOT harness for you:

taffy · Unread post by **taffy** » 17 Apr 2019, 16:42

OK I'm trying work it out lol are h g and f locations on the ecu?

GiveMeABreak · Unread post by **GiveMeABreak** » 17 Apr 2019, 17:22

Those are generally marked on the plug casings or inside. They serve as an identifier.
