54 C3 1.4HDI Door unlock fault FIXED
This is the second continuation of this post viewtopic.php?f=3&t=60625 now the first problem has been fixed.
The following faults were logged
RADIO - Permanent fault. Of the radio aerial input (yet radio reception is perfectly clear)
AIRBAG - Temporary fault. Passenger's airbag deactivation Not Defined (P206F)
MULTIFUNCTION DISPLAY - Intermittent fault. No permanent positive of the display
INJECTION - Permanent fault. Exhaust Gas recycling excessive flow detected (P0402). Permanent fault. Pre-post heating relay circuit coherence (P1351).
After clearning them down (the INJECTION fault erasing failed, stating "Communication interruption during fault erasing") there remains the RADIO aerial fault and the INJECTION faults.

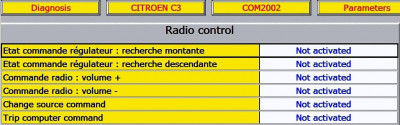

Checking the RADIO CONTROL configuration in COM2000 I'm shown this. Zoot alor! However, this post has been raised to address an evident fault with the door locks, which hasn't been flagged by the diagnostics. The only Lexia indication something's amiss I can find so far is within the BSI DOOR LOCKING parameters that shows "Front Left Door" status as "????"
The physical fault being, all doors are locked and only using the key in the driver's door can the driver's door be unlocked. Pressing any lock/unlock buttons, including two in the cabin, results in all doors being deadlocked only, requiring the driver to wind down the window and insert the key in the external lock to get out.
As usual, my first port of call will be relevant fuses but I'm not so hopeful it's such an easy fix this time.
The following faults were logged
RADIO - Permanent fault. Of the radio aerial input (yet radio reception is perfectly clear)
AIRBAG - Temporary fault. Passenger's airbag deactivation Not Defined (P206F)
MULTIFUNCTION DISPLAY - Intermittent fault. No permanent positive of the display
INJECTION - Permanent fault. Exhaust Gas recycling excessive flow detected (P0402). Permanent fault. Pre-post heating relay circuit coherence (P1351).
After clearning them down (the INJECTION fault erasing failed, stating "Communication interruption during fault erasing") there remains the RADIO aerial fault and the INJECTION faults.
Checking the RADIO CONTROL configuration in COM2000 I'm shown this. Zoot alor! However, this post has been raised to address an evident fault with the door locks, which hasn't been flagged by the diagnostics. The only Lexia indication something's amiss I can find so far is within the BSI DOOR LOCKING parameters that shows "Front Left Door" status as "????"
The physical fault being, all doors are locked and only using the key in the driver's door can the driver's door be unlocked. Pressing any lock/unlock buttons, including two in the cabin, results in all doors being deadlocked only, requiring the driver to wind down the window and insert the key in the external lock to get out.
As usual, my first port of call will be relevant fuses but I'm not so hopeful it's such an easy fix this time.
Last edited by MikeT on 22 Aug 2018, 17:24, edited 1 time in total.
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: 54 C3 1.4HDI Door unlock fault
Ignore that last lexia screen Mike - it is normal for none of those functions to be active on that model.
Please Don't PM Me For Technical Help
Marc
Marc
Re: 54 C3 1.4HDI Door unlock fault
Don't worry about the radio aerial fault, its a phantom fault & will be in almost every RD3 radio you check with Lexia.
Think we really need a wiring diagram for the CL.
Think we really need a wiring diagram for the CL.
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: 54 C3 1.4HDI Door unlock fault
Seeing as there's only one fuse listed I think my next planned step is to try the door actuators through Lexia.
p.s. In case it's relevant (ie like the sidelamp light indicating BSI was in BackUp Mode) the Child-lock LED is permanently lit, regardless how many times or for how long you press it.
Additionally, every press of either cabin doorlock/childlock buttons results in audible latching noises (and all doors remaining deadlocked).
p.s. In case it's relevant (ie like the sidelamp light indicating BSI was in BackUp Mode) the Child-lock LED is permanently lit, regardless how many times or for how long you press it.
Additionally, every press of either cabin doorlock/childlock buttons results in audible latching noises (and all doors remaining deadlocked).
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: 54 C3 1.4HDI Door unlock fault
I am just exploring the possibility with colleagues of an easier way of getting vector graphics to display in posts, that would make it easier for me to put up a wiring diagram Mike. Bear with me...
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: 54 C3 1.4HDI Door unlock fault
Do we need to send out a search party, Marc?
I've since found these very same symptoms have affected a fair few of these C3 models.
BSI repair/replacement is the fix.
- Paul-R
- Donor 2023
- Posts: 6945
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1380
Re: 54 C3 1.4HDI Door unlock fault
Does this mean that you don't need to try to get the doors open first? You could just send the BSI away and unlocking would be as normal when refitted?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: 54 C3 1.4HDI Door unlock fault
Assuming the underlying cause of failure has been removed, yes.
But for my own education purposes, I'm going to continue the diagnosis to confirm the BSI is faulty.
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: 54 C3 1.4HDI Door unlock fault
Mike's looking at it now - I've sent a few files for testing, but have been buried in other things for the last few days, so just surfacing for air.
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: 54 C3 1.4HDI Door unlock fault
Ok, back out from the undergrowth and this is a short term solution until Mike can look at being able to attach them in the normal way. The image is large, but has to be to see the detail at present, so you can't click on it to zoom it any more. I think the detail is good enough though and you should still be able to zoom via your browser / tablet / PC anyway as normal.
So here's the Central locking diagram in its entirety: I've put a few of the main components into a table.
So here's the Central locking diagram in its entirety: I've put a few of the main components into a table.
Code | Description |
6212 | Rear Left-Hand Door Lock Assembly |
6202 | Front Left-Hand Door Lock Assembly |
6217 | Rear Right-Hand Door Lock Assembly |
6207 | Front Right-Hand Door Lock Assembly |
6222 | Boot Lock Assembly |
6282 | Boot Opening Switch |
6264 | Child Safety Relay |
6220 | Door Locking Switch |
BCM2 | Right Multifunction Switch Block BCM2 |
CV00 | Steering Wheel Controls |
PSF1 | Engine Compartment Fusebox Panel |
1620 | Vehicle Speed Sensor / |
0004 | Instrument Panel / |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: 54 C3 1.4HDI Door unlock fault
The supposition is one (or more?) of those BSI relays isn't sending the required unlock signal(s).
To test this, I should be able to lock/unlock all four doors by applying a pulse of battery voltage (according to polarity) down Pins 13 & 15.
Once confirmed, I can look at getting the BSI fixed.
To test this, I should be able to lock/unlock all four doors by applying a pulse of battery voltage (according to polarity) down Pins 13 & 15.
Once confirmed, I can look at getting the BSI fixed.
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: 54 C3 1.4HDI Door unlock fault
But the K Line protocol message would need to be sent in binary format and transmitted as a pulsed voltage signal. The voltages on the K-Line are pulsed between two values in binary code. So wouldn't you just be sending gibberish? Especially as the K line may send the message in several parts, whereas a CAN protocol usually sends the message in one block.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: 54 C3 1.4HDI Door unlock fault
Bad terminology on my part, Marc. I mean signal as in a short burst (lest I burn the motors out) with BSI isolated.
The motors aren't K-linguistic (more's the pity as they could have flagged a diagnostic fault!). As long as they get power, they should turn.
The motors aren't K-linguistic (more's the pity as they could have flagged a diagnostic fault!). As long as they get power, they should turn.
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: 54 C3 1.4HDI Door unlock fault
I've not been well enough to revisit this car until today.
Following the BSI fault theory, I've removed the BSI, split the box and seperated the two boards.
Here they are side by side
SIEMENS BSI F01 00 HG
And this is the board we're interested in, the power/relay board
Seperating the boards gives me access to test suspect components - in this case, the relays (as shown in the wiring diagram from Marc)
Following the BSI fault theory, I've removed the BSI, split the box and seperated the two boards.
Here they are side by side
SIEMENS BSI F01 00 HG
And this is the board we're interested in, the power/relay board
Seperating the boards gives me access to test suspect components - in this case, the relays (as shown in the wiring diagram from Marc)
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: 54 C3 1.4HDI Door unlock fault
And we have a winner. In the last photo, top right, relay marked YH119 has an open circuit on the solenoid coil.
Anyone got any duff BSI's with these relays on I could have?
Anyone got any duff BSI's with these relays on I could have?
