Xantia S1 hydro leak what is it ???
Moderator: RichardW
-
- Posts: 260
- Joined: 18 Mar 2013, 16:07
- Location: Cambridgeshire
- My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate - x 16
Xantia S1 hydro leak what is it ???
I've just been under my 96 xantia to look at exhaust leaks and found there to be a hydraulic leak , there is a t piece small like 2mm 3mm on a bracket behind the steering system , the push on t piece has perished and is leaking quite nicely , I'd like to know what these hydro pipes are actually conected too , and doing ? I have ordered some t piece parts to fix it .
- moizeau
- Donor 2024
- Posts: 1590
- Joined: 12 Jan 2015, 16:08
- Location: France 36
- My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped) - x 317
Re: Xantia S1 hydro leak what is it ???
Exactly from where I don't know, but it is a low pressure return. Which is why it drips and doesn't squirt. Just changed exactly the same part for a friend. Did you buy a Citroen T piece as opposed to one from a garden centre because they need to be LHM friendly.
Pete
Notice the BX is still top the list but sadly gone
Notice the BX is still top the list but sadly gone
-
- Posts: 260
- Joined: 18 Mar 2013, 16:07
- Location: Cambridgeshire
- My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate - x 16
Re: Xantia S1 hydro leak what is it ???
No i didn't get a Citroen one cause I'd hate to think how much that would be yeah it's constantly dripping
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Xantia S1 hydro leak what is it ???
Could be part 12 on the diagram which is the 3 way union. Parts 7 and 9 are the oil return pipes.
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Xantia S1 hydro leak what is it ???
It is part 527014 and still available from Citroen according to parts. The price is £9.13 inc. VAT
Please Don't PM Me For Technical Help
Marc
Marc
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Xantia S1 hydro leak what is it ???
With age the rubber elbows, couplers and t-pieces deteriorate and split. The small (often 3.5mm) nylon and metal pipes and spigots they accept usually have an olive-like bulge to obtain a decent seal, and prevent movement. Replacements need to be 'rubbery' to do the job, which knocks out using those very cheap white plastic joiners on sale everywhere.
Some of these silly little bits are sometimes available from Citroen in a multi-pack (5 or 10), and can be a cheaper way to buy - unless you only need one every 15 years!
Some of these silly little bits are sometimes available from Citroen in a multi-pack (5 or 10), and can be a cheaper way to buy - unless you only need one every 15 years!
Chris
-
- Posts: 260
- Joined: 18 Mar 2013, 16:07
- Location: Cambridgeshire
- My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate - x 16
Re: Xantia S1 hydro leak what is it ???
Givemeabreak thank you , that's great info there .
Would you know where the 3rd pipe runs? , not seven or nine .
Would you know where the 3rd pipe runs? , not seven or nine .
- moizeau
- Donor 2024
- Posts: 1590
- Joined: 12 Jan 2015, 16:08
- Location: France 36
- My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped) - x 317
Re: Xantia S1 hydro leak what is it ???
I think that's the one that goes to the reservoir.
Pete
Notice the BX is still top the list but sadly gone
Notice the BX is still top the list but sadly gone
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Xantia S1 hydro leak what is it ???
#9 is the return from the height corrector, #7 looks like the return from the hydraulic pressure (safety) switch, so I'm guessing that the third pipe will lead back to the hydraulic reservoir.
On Xantia, a good few of these small low-pressure return pipes join up before reaching the reservoir, becoming, I think, just three in number when they get there . . . so lots of joining up. Apart from the occasional rubber joint leak, they rarely give any trouble.
On Xantia, a good few of these small low-pressure return pipes join up before reaching the reservoir, becoming, I think, just three in number when they get there . . . so lots of joining up. Apart from the occasional rubber joint leak, they rarely give any trouble.
Chris
- moizeau
- Donor 2024
- Posts: 1590
- Joined: 12 Jan 2015, 16:08
- Location: France 36
- My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped) - x 317
Re: Xantia S1 hydro leak what is it ???
At nearly a tenner it's a bit steep, but considering the part you changing will probably have been fitted in the factory, the new one will outlive the car! Fit and forget.
Pete
Notice the BX is still top the list but sadly gone
Notice the BX is still top the list but sadly gone
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Xantia S1 hydro leak what is it ???
Can you post or PM your VIN as there are about 20 variations of these depending on pump type and suspension setup etc, too many to post up without the VIN
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 260
- Joined: 18 Mar 2013, 16:07
- Location: Cambridgeshire
- My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate - x 16
Re: Xantia S1 hydro leak what is it ???
VF7**************[VIN obfuscated, can be read by forum staff]*************
Last edited by GiveMeABreak on 08 Aug 2018, 18:23, edited 1 time in total.
Reason: VIN Masked
Reason: VIN Masked
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Xantia S1 hydro leak what is it ???

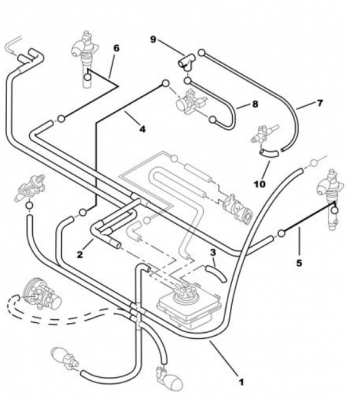

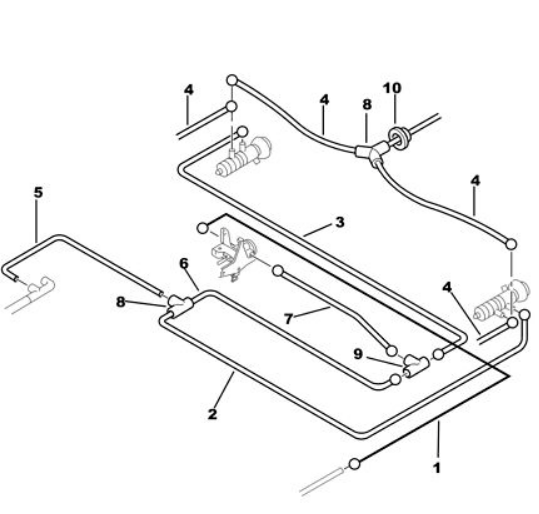

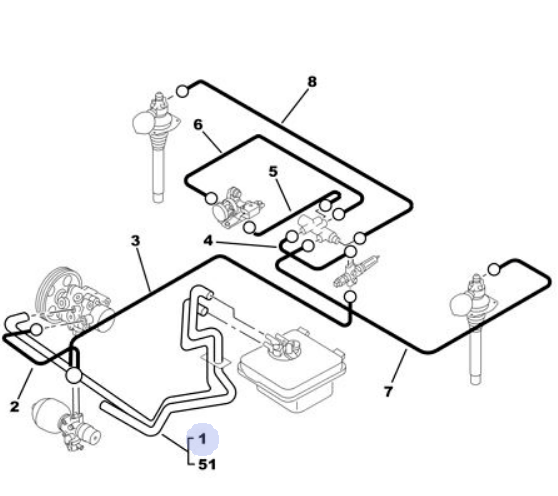

Ok, so here are all the hydraulic supply and return pipes, including the Power Steering for your specific Xantia.
