Hydraulik pipe leak
I found there is leak in pipe which runs from top through front bumper. I dont know if it is leak back pipe or something else. It is leaking from the end of hose which connect to metal pipe through a clamp ( same as attached). What is the procedure to replace this clamp. Do I have to lower the suspension to release pressure or just change it in normal height.
How do I undo the following clamp?
How do I undo the following clamp?
- Attachments
-
- xantia_v6
- Forum Admin Team
- Posts: 9083
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 833
Re: Hydraulik pipe leak
I think that you need to post a photo of the pipe and the clamp so that we know which one you are talking about.
- Stickyfinger
- (Donor 2016)
- Posts: 10433
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1289
- Contact:
Re: Hydraulik pipe leak
most leakback pipes can be done without.
That type of retainer is often the reason for the leak.
That type of retainer is often the reason for the leak.
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Hydraulik pipe leak
You haven't stated what model of C5 you have - the systems differ as does the pipework.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 124
- Joined: 18 Jul 2017, 11:07
- Location: Australia
- My Cars: Citroen C5
- x 6
Re: Hydraulik pipe leak
Its C5 V6 01. I checked yesterday and looks like it stop leaking when put another clamp in front of existing one.

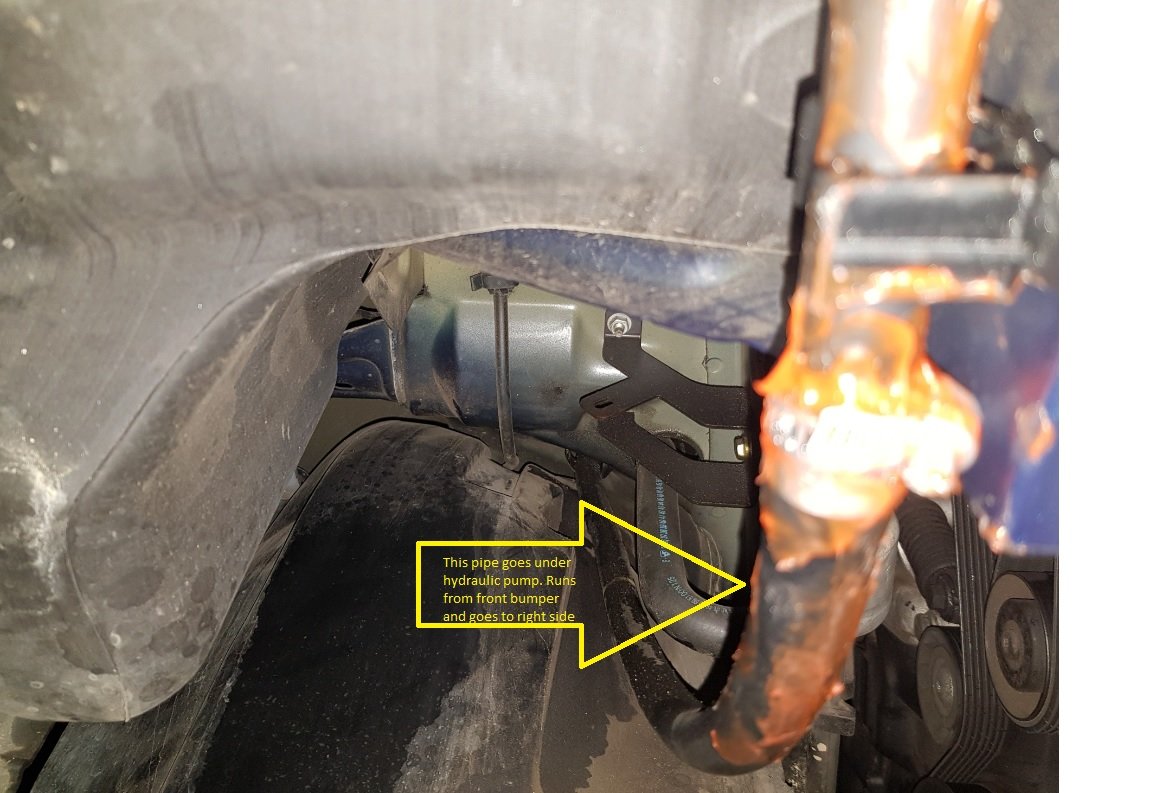

Its hard to take the photo but it goes under the hydrolic pump (please see the photo). I put some sealant to see if it stops the leaking.
Its hard to take the photo but it goes under the hydrolic pump (please see the photo). I put some sealant to see if it stops the leaking.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Hydraulik pipe leak
I'm still having a problem identifying that hose from the picture, but one thing for sure is never use any sealant on hydraulic pipes - if any foreign matter gets into the hydraulic system it can easily contaminate the whole system!
If it is just a return pipe from the front or rear and only has a jubilee clip in (as per your photo), that is simply tightened and untightened using a small flat blade screwdriver to turn the screw. You should be able to loosen it and see if it has pinched or cut into the rubber pipe, and possibly move the clip and re-tighten it. But I really would remove any sealant straight away!
If you have your VIN, I can post up some diagrams of the piping for you to help us better identify the pipe correctly.
If it is just a return pipe from the front or rear and only has a jubilee clip in (as per your photo), that is simply tightened and untightened using a small flat blade screwdriver to turn the screw. You should be able to loosen it and see if it has pinched or cut into the rubber pipe, and possibly move the clip and re-tighten it. But I really would remove any sealant straight away!
If you have your VIN, I can post up some diagrams of the piping for you to help us better identify the pipe correctly.
Please Don't PM Me For Technical Help
Marc
Marc
- xantia_v6
- Forum Admin Team
- Posts: 9083
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 833
Re: Hydraulik pipe leak
Is that perhaps an A/C hose?
-
- Posts: 124
- Joined: 18 Jul 2017, 11:07
- Location: Australia
- My Cars: Citroen C5
- x 6
Re: Hydraulik pipe leak
Hi Marc
I sent you vin number.
Thanks
I sent you vin number.
Thanks
GiveMeABreak wrote: ↑07 Aug 2018, 10:04 I'm still having a problem identifying that hose from the picture, but one thing for sure is never use any sealant on hydraulic pipes - if any foreign matter gets into the hydraulic system it can easily contaminate the whole system!
If it is just a return pipe from the front or rear and only has a jubilee clip in (as per your photo), that is simply tightened and untightened using a small flat blade screwdriver to turn the screw. You should be able to loosen it and see if it has pinched or cut into the rubber pipe, and possibly move the clip and re-tighten it. But I really would remove any sealant straight away!
If you have your VIN, I can post up some diagrams of the piping for you to help us better identify the pipe correctly.
-
- Posts: 124
- Joined: 18 Jul 2017, 11:07
- Location: Australia
- My Cars: Citroen C5
- x 6
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Hydraulik pipe leak
Ok, I have your VIN now, so see if you can identify the pipe - this is the system fitted to your 3.0i V6 24v 210 (ES9J4S):
If you can specify which Diagram A to F and the number of the pipe in the diagram, I'll be able to identify the one for you.
Click to Zoom these Images
If you can specify which Diagram A to F and the number of the pipe in the diagram, I'll be able to identify the one for you.
Click to Zoom these Images

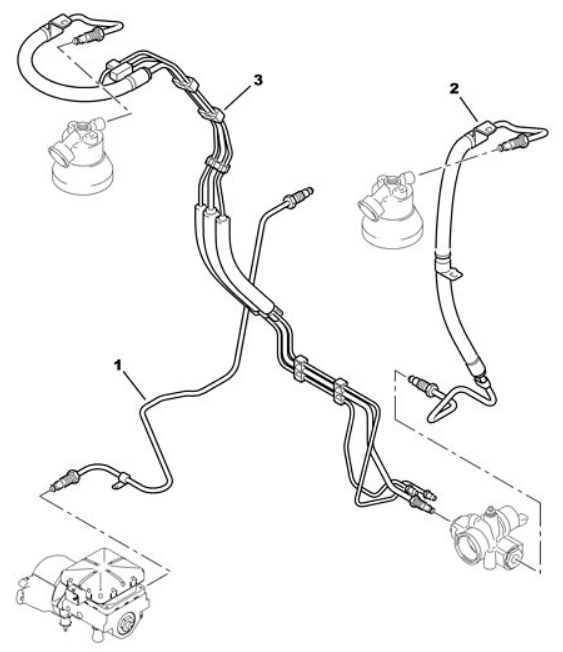

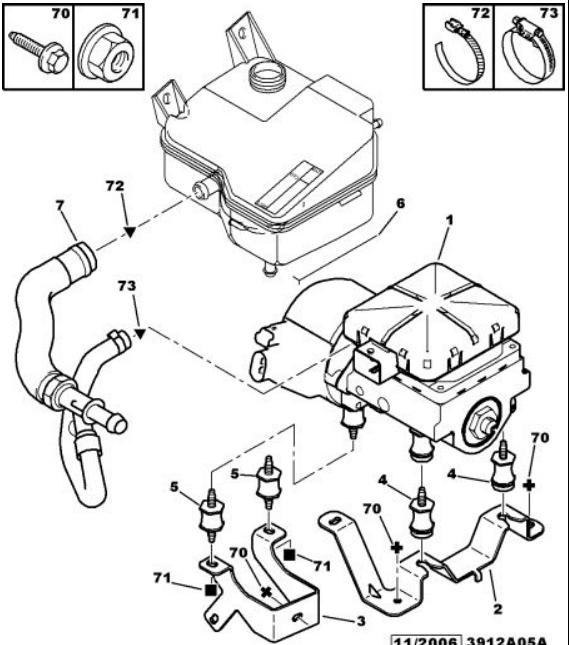

(A) HP Pump | (B) Power Steering Piping |

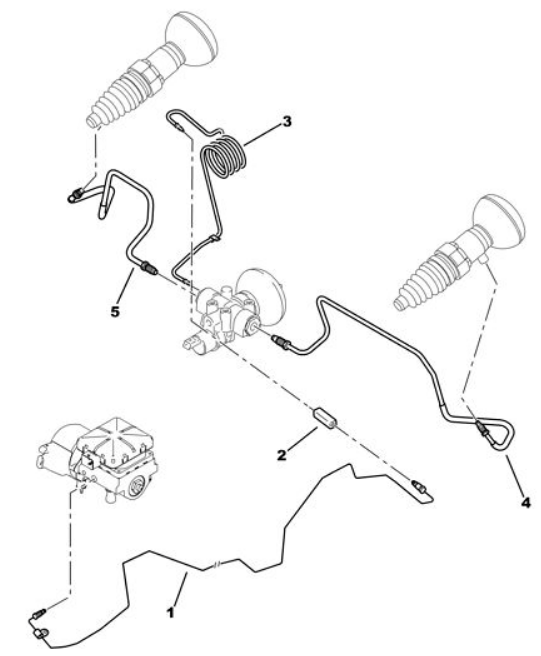

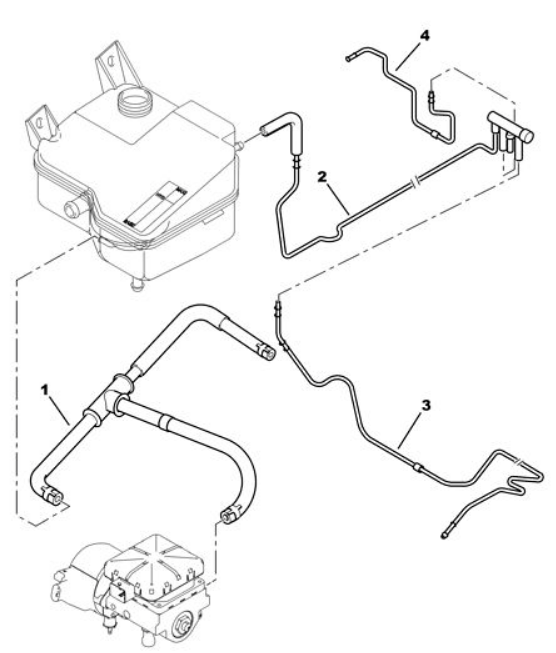

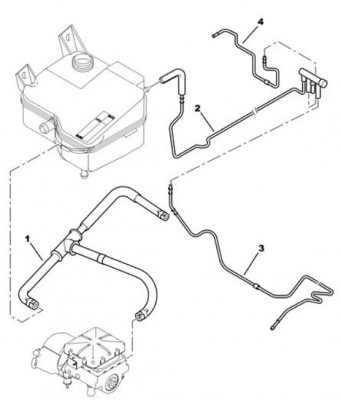

(C) Supply Pipes Front | (D) Return Pipes Front |

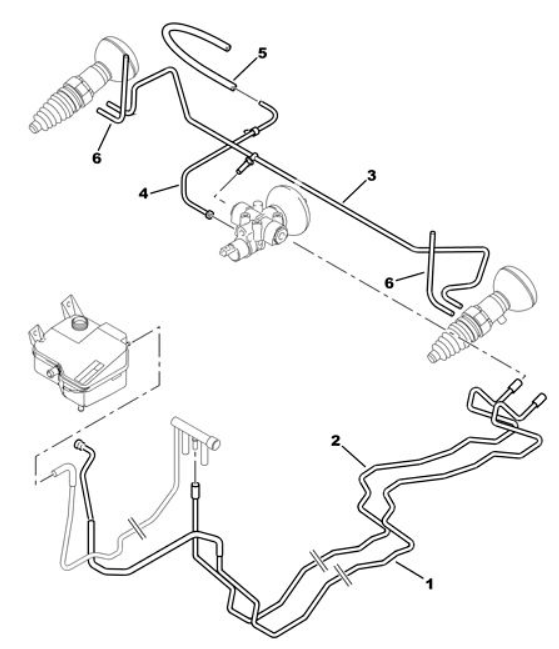

(E) Supply Pipes Rear | (F) Return pipes Rear |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 124
- Joined: 18 Jul 2017, 11:07
- Location: Australia
- My Cars: Citroen C5
- x 6
Re: Hydraulik pipe leak
It look similar to image B.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Hydraulik pipe leak
Yes, ok, but which number on table B?
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 124
- Joined: 18 Jul 2017, 11:07
- Location: Australia
- My Cars: Citroen C5
- x 6
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Hydraulik pipe leak

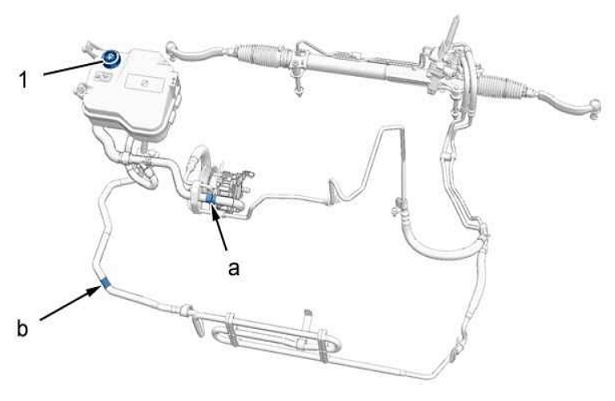

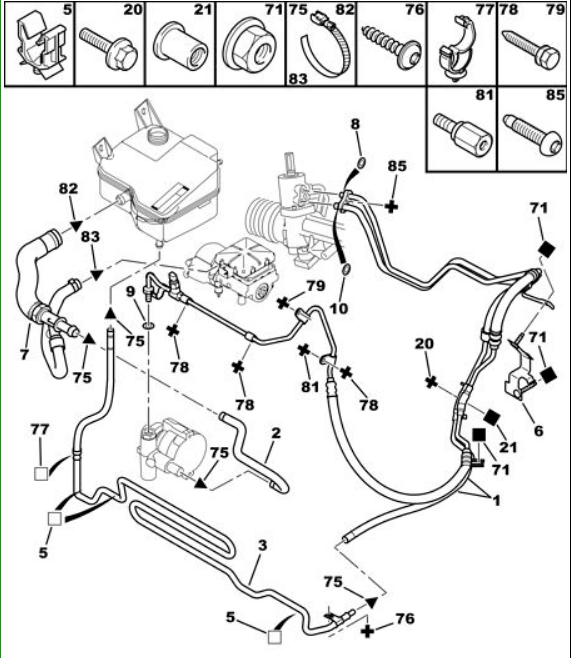

77 is actually a clip, but if you mean pipe '3', that is the low pressure power steering pipe, seen a little better below where 'B' is on the diagram:
I believe it's curled up at the front to help cool the fluid on some models. So if you need to take the pipe off, be aware that although it is low pressure, you will get fluid coming out (and don't re-use any old LDS fluid).
You could always try another jubilee clip - if you unscrew them all the way, you should be able to remove the band, place the clip around the pipe, feed the band back into the ratchet and gently start tightening it up.
I believe it's curled up at the front to help cool the fluid on some models. So if you need to take the pipe off, be aware that although it is low pressure, you will get fluid coming out (and don't re-use any old LDS fluid).
You could always try another jubilee clip - if you unscrew them all the way, you should be able to remove the band, place the clip around the pipe, feed the band back into the ratchet and gently start tightening it up.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 7206
- Joined: 08 Jun 2011, 18:04
- Location: GL15***
- My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE - x 2508
Re: Hydraulik pipe leak
That clip has a 7mm screw head, you can use a socket on it...……….easier than using a screwdriver.
