Replacing Spheres on a 1997 Citroen Xantia Estate 1.9 TD

Post by BMBCreative »

Hi Folks,

I'm starting to get a fairly bumpy ride in my 1997 Citroen Xantia Estate 1.9 TD (Desire), mostly on the back wheels. All the spheres were re-gassed about 10 years ago but now it looks as if they need replacing. The front spheres don't seem too bad, It's mainly the back.
I have a few questions though if someone here can help me?

Is it better to replace all the spheres at this stage or just the back ones?
Is my version of the Xantia Estate Hydractive or no?
It seems there are 6 spheres in total - (2 back, 2 front, and 2 accumulator spheres?) It seems easy enough to find front and back but when i mention the accumulator ones suppliers don't seem to know what I'm talking about (Mister auto etc) ... Are the accumulator ones different/ specialist?

Any recommended suppliers? (I am in Ireland).

Thanks in advance,
Bryan
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37017
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Replacing Spheres on a 1997 Citroen Xantia Estate 1.9 TD

Post by GiveMeABreak »

Bryan - the best option first is to pop up or PM your VIN. I can then get determine what type of system you have and also the correct OEM sphere part numbers with the correct pressures etc.

You can then decide where to get them from with this information. They do vary depending on shape and engine and of course hydractive or not. I would certainly NOT rely on third party non-specialist suppliers for the correct ones without first arming yourself with what you should have. It has been shown numerous times that it is a lottery out there.

I can then get you the OEM parts and prices, that you can use for sourcing replacements according to wishes / budget. They are not all the same and quality has been shown to vary - especially with regard to the membranes used in construction.
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Replacing Spheres on a 1997 Citroen Xantia Estate 1.9 TD

Post by Hell Razor5543 »

May I suggest you contact AEP Direct? They know what they are on about, can supply most spheres, and (for orders over £50) they do free P&P;

http://www.aepdirect.com/

I have used them myself in the past, and was happy with the service. If you do decide to use them make sure you give them your reg number. That way they can check that the spheres you have ordered are the right ones for your car.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Replacing Spheres on a 1997 Citroen Xantia Estate 1.9 TD

Post by white exec »

Bryan, are you sure the spheres were "regassed", and not just replaced?
If they have been regassed, each sphere would be fitted with a chromed Valprex valve (with a green plastic protection cap) screwed into their tops, instead of the factory-original blanking cap (plain round thing, about 16mm diameter).

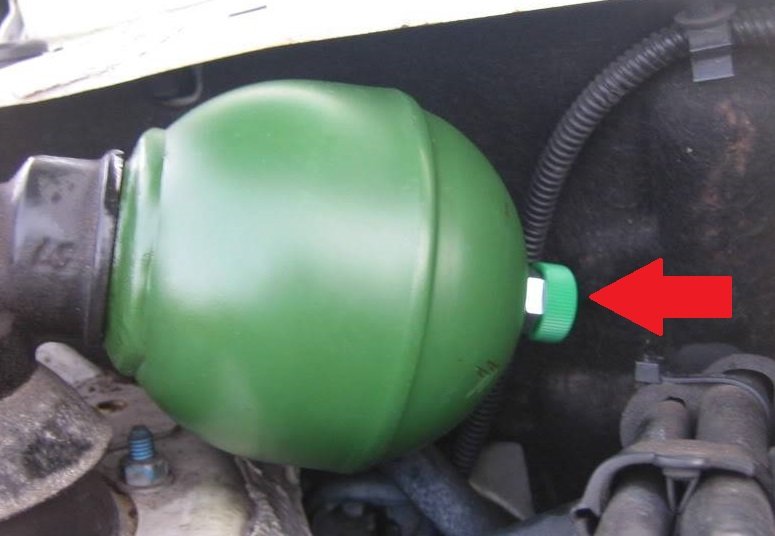

Valprex valve.jpg
