Hi all
I've been having a rattling issue at the back of my C5 since I've bought the car, and since the nice weather I've been driving around a lot more with the windows down. For the record my AC does work but for short trips I sometimes prefer the windows down.
I noticed that the brakes being applied, stops the rattle completely, so I thought I'd have a look on servicebox to see if there is any suggestion on there as to what anti rattle components there are. Looking at the first attachment from ServiceBox, you can see part 8 - anti rattle 2 shim set - which my car doesn't have. If you ask me, part 8 looks to be an addition after these diagrams were initially drawn up.

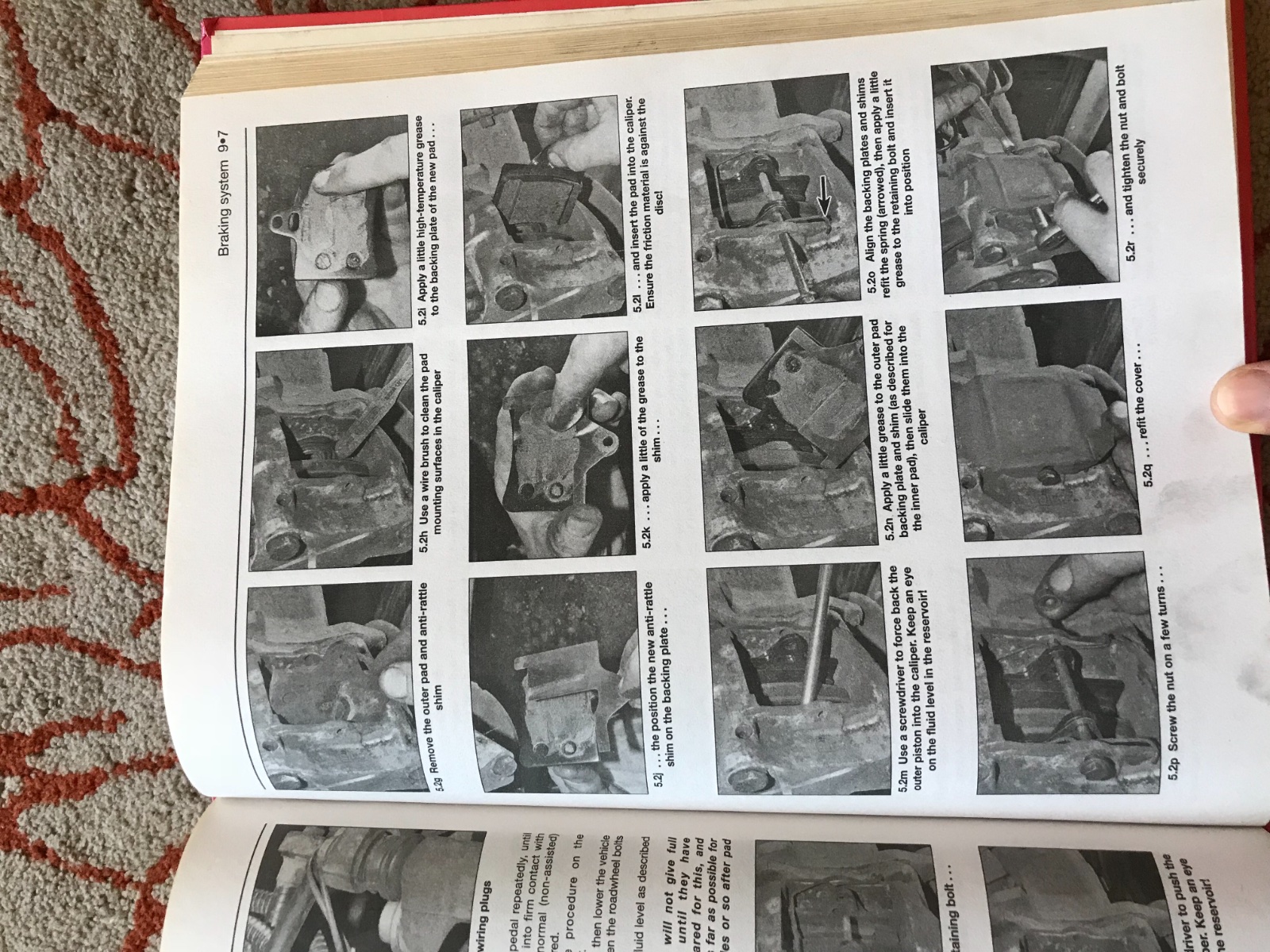

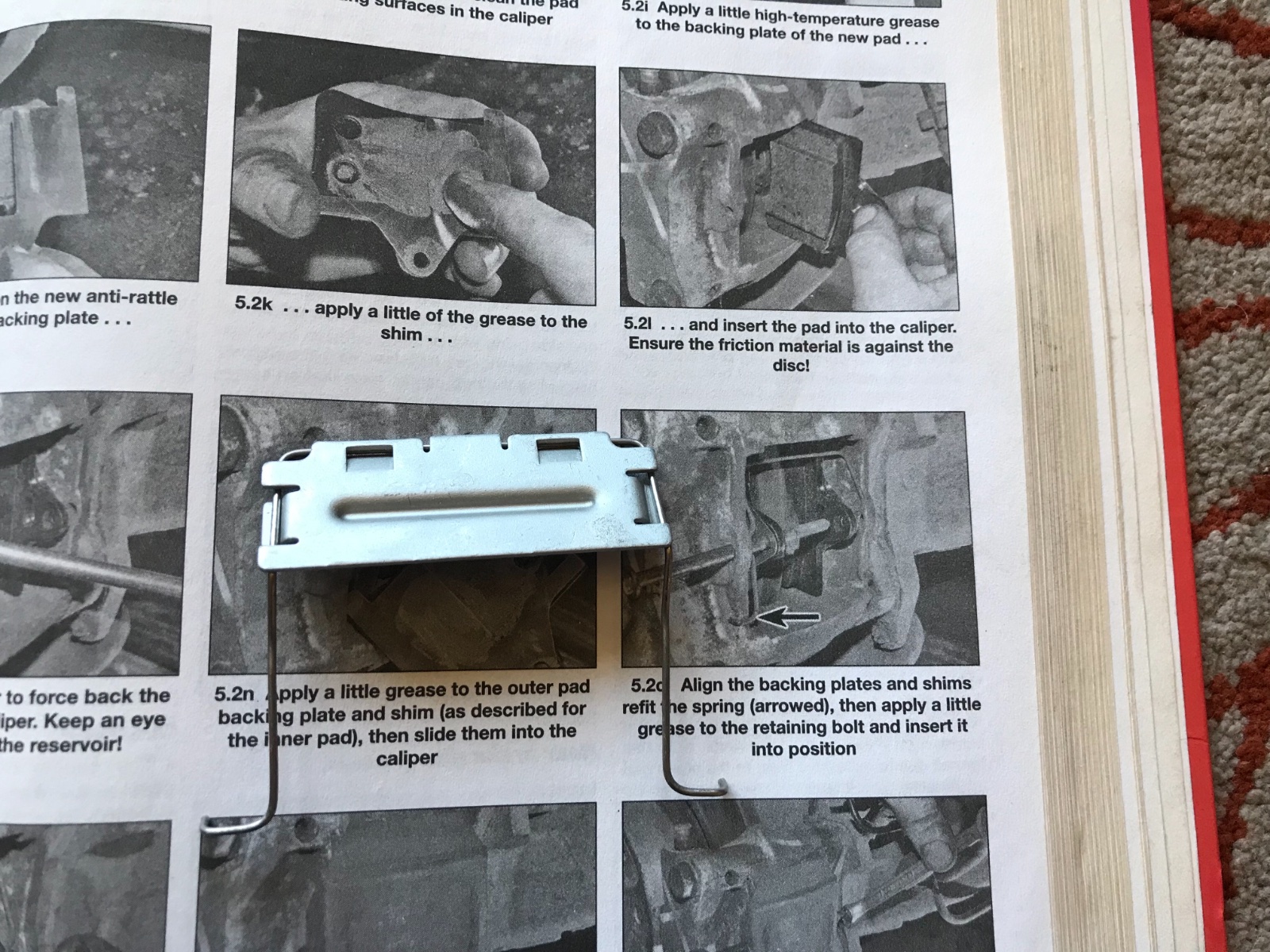

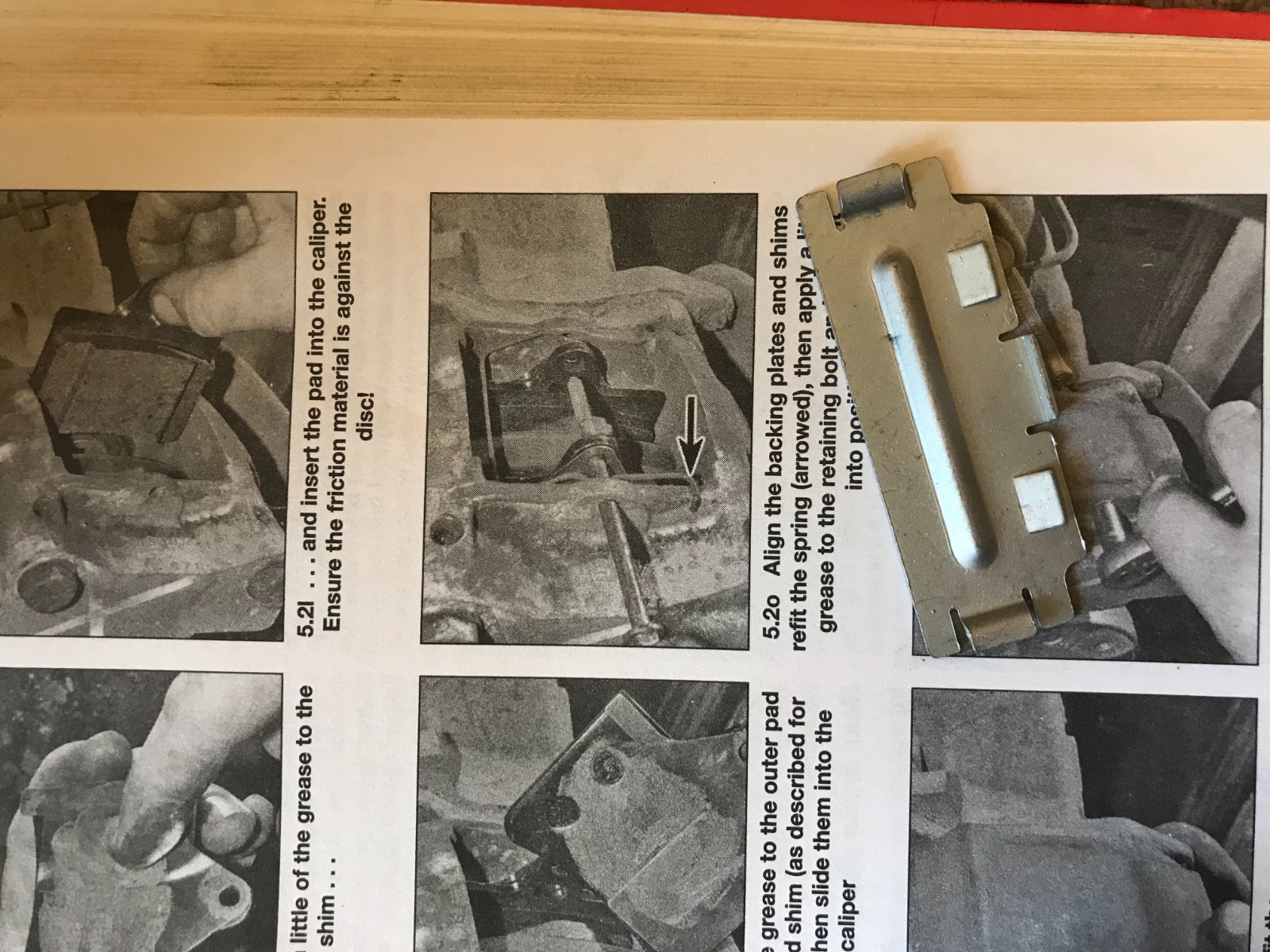

Thought I'd take a look in the Haynes and sure enough this part isn't in the photos.

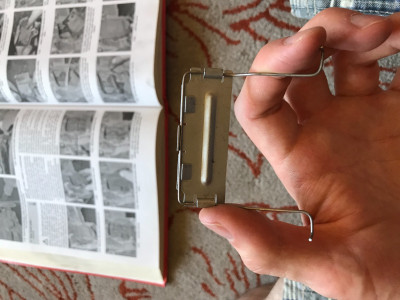

So I ordered some from Citroen for around £20 for the pair, along with a new brake fitting kit from Euro Car Parts for a whole £9, in the hope this will stop my rear brake pads rattling. However now I have them, I can't really see what difference they'll make. See the photos below for the shim and fitting kit 'constructed'.
Am I being an idiot, I can't see how this will help anything?
Cheers.
Facelift C5 (not X7) rear brake anti rattle
Moderator: RichardW
- Dommo
- Posts: 1191
- Joined: 11 Apr 2009, 09:43
- Location: Stoke-on-Trent
- My Cars: Current
07 C5 VTX+ 2.2 HDi 173hp
97 S1 Activa
06 Boxster S
93 XM 2.1 Turbo SD
Previous cars
91 Toyota Soarer UZZ32 Active Suspension
97 S1 VSX 1.9 Turbo D
99 Xantia Activa
98 2.1TD Xantia
99 306 - x 19
Re: Facelift C5 (not X7) rear brake anti rattle
Apologies about the angle of the photos, on my phone they don't show up on their sides, so I'm not sure why they do here!
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Re: Facelift C5 (not X7) rear brake anti rattle
AFAIK, along with anti-rattle shims, some components are designed to stop brake pad squeal too.
- GiveMeABreak
- Forum Admin Team
- Posts: 37331
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Facelift C5 (not X7) rear brake anti rattle
You'd be surprised - rather than repeating - have a look here for an explanation:
https://auto.howstuffworks.com/auto-par ... -shims.htm
https://auto.howstuffworks.com/auto-par ... -shims.htm
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6931
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1378
Re: Facelift C5 (not X7) rear brake anti rattle
Well I have a problem with that so called explanation in the first sentence. The shims do NOT fit between the brake pads and brake discs (rotors they call them). They sit between the pads and the pistons of the caliper. I didn't bother reading further if they can get something so basic wrong.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Facelift C5 (not X7) rear brake anti rattle
That HowStuff... 'explanation' is more than a tad confusing, IMO.
Shims and anti-rattle springs are quite different things, and there to tackle separate issues.
Shims are there to reduce squeal, by acoustically coupling the brakes pad to the heavy metal caliper, which, being heavy, isn't capable of vibrating at a high frequency. Shims may be plain steel, or plastic or mastic coated, and are there to provide better contact between pad and caliper than could be achieved with the pad alone. Shims may be single or double on each side. Traditionally (and especially with plain steel shims), adding a smear of copper grease to the shim/pad/caliper contact surfaces improves the acoustic contact.
Some brake pads are mastic-coated on the backs, intended to bond/anchor themselves to the caliper. Other pads don't have this, so shims/brake grease can be important.
Anti-rattle springs are there to stop the pads chattering/clunking up and down (and in and out) in the caliper, when the brakes are relaxed. The a-r springs should apply a continuous pressure on the outboard edges of the pads, not dissimilar to pressing firmly there with your finger.
Bumpy ground can produce rattle, which will stop when brakes are applied. Squeal is just that - squeal - and often happens under light braking. Many Citroen rear disc brakes don't do a lot of work under normal use (front brakes do the lion's share), and pad surface can become glazed (polished), which encourages squeal. Some deliberately hard braking can sometimes get rid of it, until next time.
Shims and anti-rattle springs are quite different things, and there to tackle separate issues.
Shims are there to reduce squeal, by acoustically coupling the brakes pad to the heavy metal caliper, which, being heavy, isn't capable of vibrating at a high frequency. Shims may be plain steel, or plastic or mastic coated, and are there to provide better contact between pad and caliper than could be achieved with the pad alone. Shims may be single or double on each side. Traditionally (and especially with plain steel shims), adding a smear of copper grease to the shim/pad/caliper contact surfaces improves the acoustic contact.
Some brake pads are mastic-coated on the backs, intended to bond/anchor themselves to the caliper. Other pads don't have this, so shims/brake grease can be important.
Anti-rattle springs are there to stop the pads chattering/clunking up and down (and in and out) in the caliper, when the brakes are relaxed. The a-r springs should apply a continuous pressure on the outboard edges of the pads, not dissimilar to pressing firmly there with your finger.
Bumpy ground can produce rattle, which will stop when brakes are applied. Squeal is just that - squeal - and often happens under light braking. Many Citroen rear disc brakes don't do a lot of work under normal use (front brakes do the lion's share), and pad surface can become glazed (polished), which encourages squeal. Some deliberately hard braking can sometimes get rid of it, until next time.
Chris
- GiveMeABreak
- Forum Admin Team
- Posts: 37331
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Facelift C5 (not X7) rear brake anti rattle
Bad example - I think that chap was getting mixed up with calliper shims used to correct the disk and calliper alignment
Anyway you get the drift - some also have a backing plate that goes behind the pad too on the rear pads to further reduce vibration / heat / noise etc.
This chap is doing a replacement and you can see the plates at about 14:58 and again when fitting at 17:58:
This is on a MK I C5, but informative:
Anyway you get the drift - some also have a backing plate that goes behind the pad too on the rear pads to further reduce vibration / heat / noise etc.
This chap is doing a replacement and you can see the plates at about 14:58 and again when fitting at 17:58:
This is on a MK I C5, but informative:
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 7207
- Joined: 08 Jun 2011, 18:04
- Location: GL15***
- My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE - x 2511
Re: Facelift C5 (not X7) rear brake anti rattle
I've not seen those metal plates before, maybe an addition to the x7, usually there's just the wire anti rattle held in place by the through bolt, looking at the pictures are you sure you have them the correct way round in the wire, I would have thought that the flat face would go against the edge of the pads.
I like the guy's safety boots in your video Marc.
I like the guy's safety boots in your video Marc.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
- GiveMeABreak
- Forum Admin Team
- Posts: 37331
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Facelift C5 (not X7) rear brake anti rattle
None of those on my X7 Gibbo - so maybe those were a MK I feature or an aftermarket solution perhaps?
Yes, loving the Carlos Fandango super safe mechanic's flip flops with built in invisible steel toe caps!
Yes, loving the Carlos Fandango super safe mechanic's flip flops with built in invisible steel toe caps!
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37331
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Facelift C5 (not X7) rear brake anti rattle
Yes, just confirmed, they are part of the rear brake kit for the MK I - see part 3 - they can be seen next to the pads.
They are also on the MK II, but not on the X7 - so they probably modified the design and built them onto the back of the pad perhaps - I've never had any squeaks on mine.
So you would get these if your ordered the kit - but not if you just replace the pads - so one assumes these are reusable - as the guy seemed to be doing in the video, cleaning them off.
They are also on the MK II, but not on the X7 - so they probably modified the design and built them onto the back of the pad perhaps - I've never had any squeaks on mine.
So you would get these if your ordered the kit - but not if you just replace the pads - so one assumes these are reusable - as the guy seemed to be doing in the video, cleaning them off.
Please Don't PM Me For Technical Help
Marc
Marc
- Dommo
- Posts: 1191
- Joined: 11 Apr 2009, 09:43
- Location: Stoke-on-Trent
- My Cars: Current
07 C5 VTX+ 2.2 HDi 173hp
97 S1 Activa
06 Boxster S
93 XM 2.1 Turbo SD
Previous cars
91 Toyota Soarer UZZ32 Active Suspension
97 S1 VSX 1.9 Turbo D
99 Xantia Activa
98 2.1TD Xantia
99 306 - x 19
Re: Facelift C5 (not X7) rear brake anti rattle
The shims you're on about on the back of the pads have been fitted to every Xantia I've owned and the Mk1 and Mk1 facelifted C5's as well. They are usually reusable, but I've had a set of pads before where they were bonded to the back of the pad so obviously they weren't removable on those.

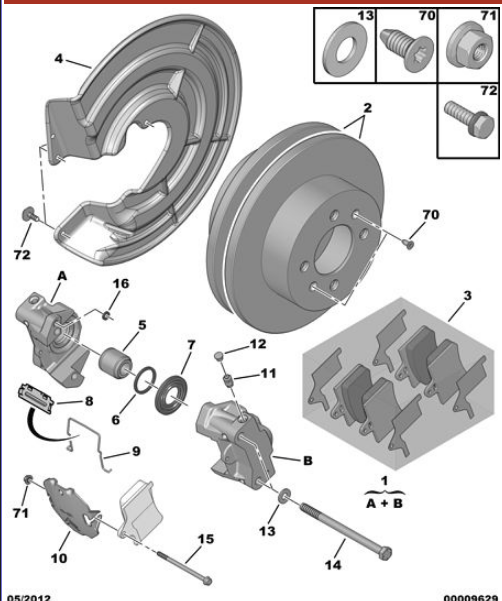

The part I'm on about is part 8 on servicebox - you can see it looks like an addition to the image.
