Wiring diagram for xenons - 2007 mk1 facelift C5
Moderator: RichardW
-
- Donor 2023
- Posts: 913
- Joined: 11 Jan 2006, 21:11
- Location: Eastbourne , East Sussex
- My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6 - x 24
Wiring diagram for xenons - 2007 mk1 facelift C5
Does anyone have the wiring diagram for the xenons and washer jets please for 2006 / 07 C5 Xenons? Want to retrofit some to mine
Simon
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37337
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5722
Re: Wiring diagram for xenons - 2007 mk1 facelift C5

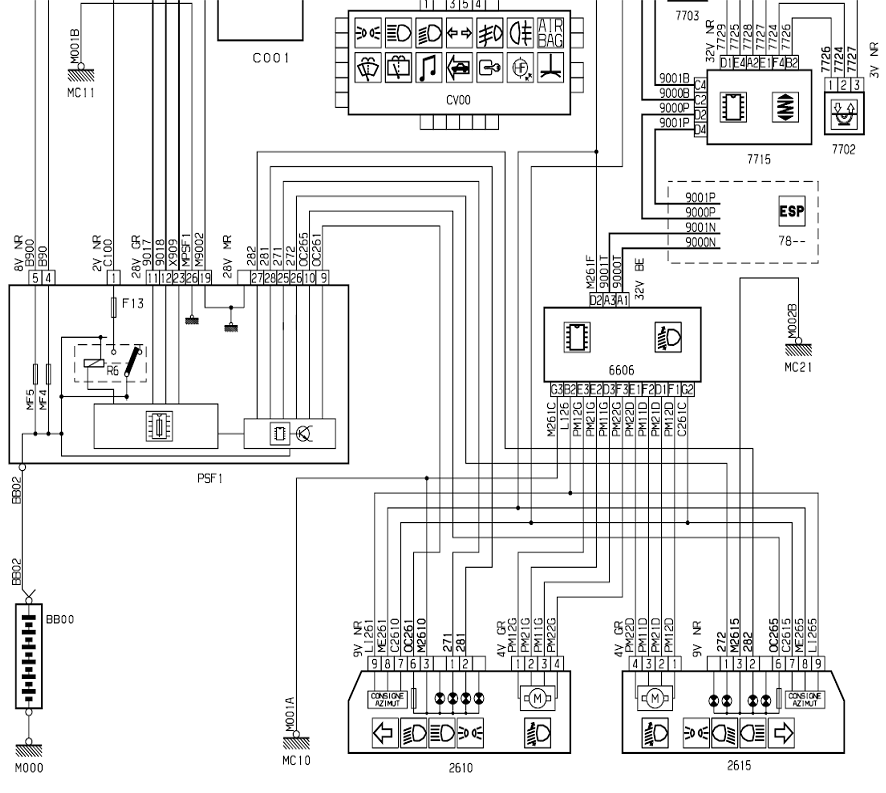

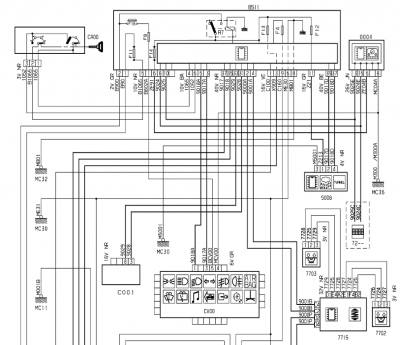

Here you go, unfortunately, the wiring codes are a bit nondescript. I've overlapped the second half for continuity. I've assumed you've got ESP on your vehicle - as it will need the steering wheel angle sensor for the directional function to work.
Click to zoom these
Click to zoom these
Code | Description |
2615 | Right-hand headlamp |
2610 | Left-hand headlamp |
MC10 | MC 10 Earth |
6606 | Front body height sensor + power supply |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 913
- Joined: 11 Jan 2006, 21:11
- Location: Eastbourne , East Sussex
- My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6 - x 24
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
Thank you marc! Looking to retrofit some directional xenons to mine , will investigate what (if any) of teh wiring is in situ already
Simon
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37337
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5722
Re: Wiring diagram for xenons - 2007 mk1 facelift C5

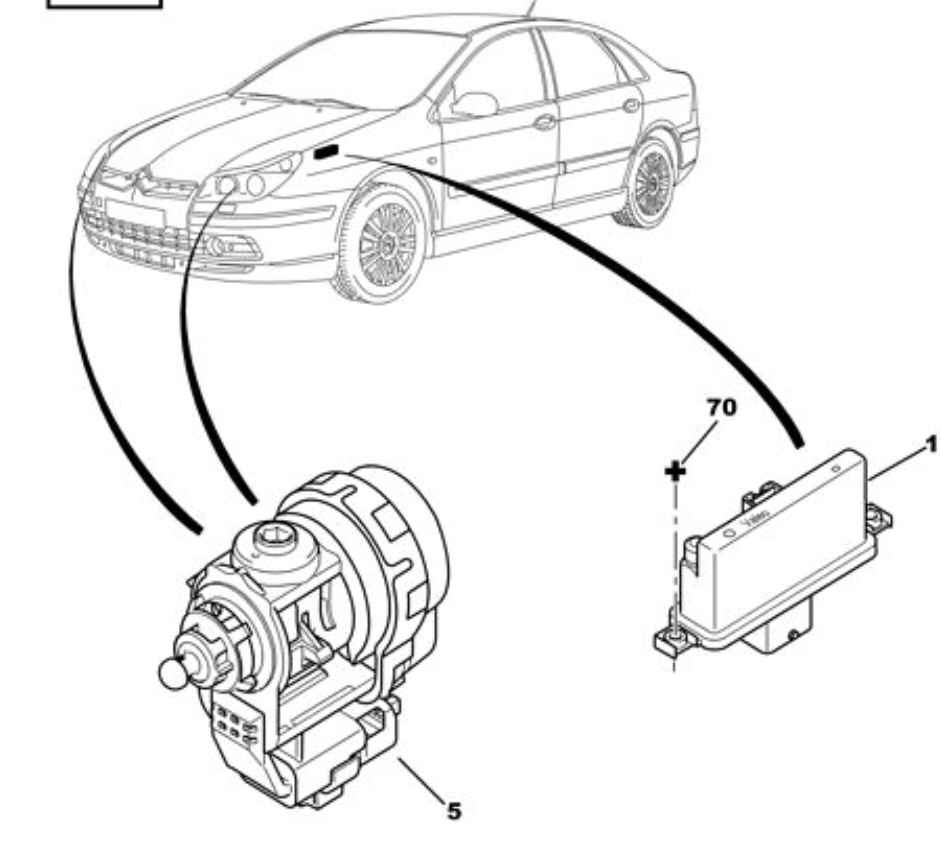

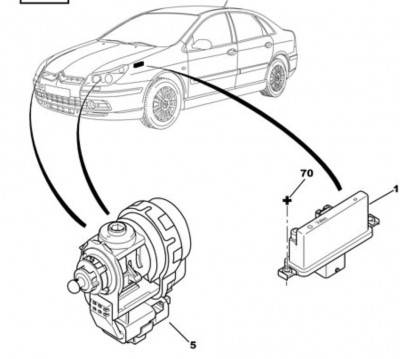

No problem, don’t forget you’ll need the Headlight Auto Adjustment unit too. Number 1 in the diagram. The headlamp corrector (5) should already be incorporated into the headlight unit.
Please Don't PM Me For Technical Help
Marc
Marc
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37337
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5722
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
6224R6 is the replacement part, and 6224K8 was the original.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 913
- Joined: 11 Jan 2006, 21:11
- Location: Eastbourne , East Sussex
- My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6 - x 24
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
Thank you again! Got some parts coming , so got a new project
Simon
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37337
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5722
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
I don't envy that job - have you got all the headlamp washer rams , tubing and wash tank then? Are you replacing the bumper or drilling out the headlamp washer jets?
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 913
- Joined: 11 Jan 2006, 21:11
- Location: Eastbourne , East Sussex
- My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6 - x 24
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
I have a 2007 facelift now and the bumper is pre cut
Simon
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37337
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5722
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
Even better!

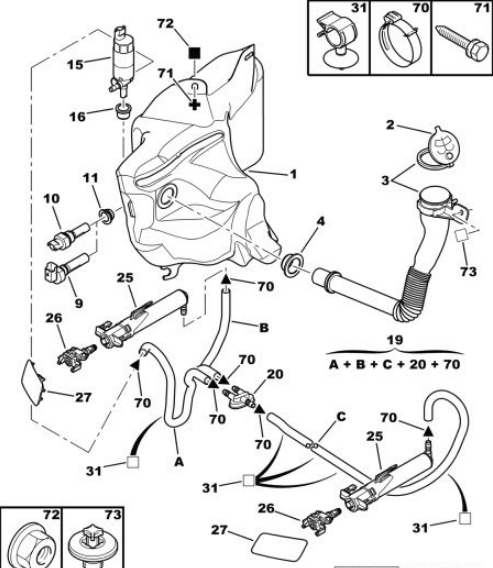

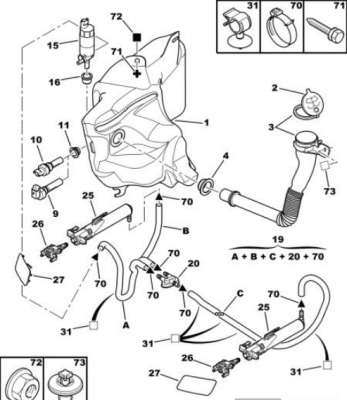

Here's all the parts of the washer for ref incase you don't have it already.
Here's all the parts of the washer for ref incase you don't have it already.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 913
- Joined: 11 Jan 2006, 21:11
- Location: Eastbourne , East Sussex
- My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6 - x 24
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
Will wait till better weather , but have the headlights, control box and washer jets - will check on wiring and teh washer bottle!
Simon
- Dommo
- Posts: 1191
- Joined: 11 Apr 2009, 09:43
- Location: Stoke-on-Trent
- My Cars: Current
07 C5 VTX+ 2.2 HDi 173hp
97 S1 Activa
06 Boxster S
93 XM 2.1 Turbo SD
Previous cars
91 Toyota Soarer UZZ32 Active Suspension
97 S1 VSX 1.9 Turbo D
99 Xantia Activa
98 2.1TD Xantia
99 306 - x 19
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
I’ve recently looked into this, fitted some xenon headlamps into the car, the loom powered the xenons (which only do dip beam, they are not bi-xenon), and main beam etc all corectly.
The loom for the directional portion is not there, or at least it isn’t on my VTX+
So you will never be able to get them fully functional without a new loom I’m afraid. Half the wiring is missing on the ‘lesser’ spec loom.
The loom for the directional portion is not there, or at least it isn’t on my VTX+
So you will never be able to get them fully functional without a new loom I’m afraid. Half the wiring is missing on the ‘lesser’ spec loom.
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37337
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5722
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
Did you fit different xenons then I.e. non Citroen ones? The Proper Citroen bi-xenon for the C5 MKII works in main and dipped beam modes as well as having a second main beam standard headlamp to compliment them. So I’m guessing you have fitted some aftermarket ones then?
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 913
- Joined: 11 Jan 2006, 21:11
- Location: Eastbourne , East Sussex
- My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6 - x 24
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
Mine is a mark 1 facelift? thought they were only directional?
Simon
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37337
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5722
Re: Wiring diagram for xenons - 2007 mk1 facelift C5
Mark I facelift or more commonly referred to as MK II (late 2004 - 2007). Yes they are bi-directional, having motors incorporated into the headlamp for levelling and directional functions. But if you don’t have the necessary kit / wiring needed for the directional functions, they will remain static in backup mode as if you had turned the directional function off.
