Confused windscreen washer; front not working. [C5 Mk1)

Post by Spurious »

Hi all.

The continuing adventure of the new to me C5. Another niggly little fault!

The windscreen washer motor is deciding to wash the rear windscreen when pulling on the stalk to wash the front. Kinda annoying. So both switches for the washers only wash the rear. Not too good on the grimey roads out and about.

Motor seems to be working as it's washing the rear. There's plenty of water in the tank

So what I've know;
BSI reset; no change.
Clean out the pipes; the ones on the bonnet are clear. There's a joining plastic connection connecting this pipe and then descending down into the wing. I've tried to blow on it to force it back into the tank. It's not budging; it's like it's closed off.

Is there a valve that actuates where the water goes? Could that be stuck shut? Any other ideas?

Thanks all.
Phase 2 Xantia HDi
Sold
Phase 1 Xantia Activia
Sold :(
Phase 2 Citroen C5
Sold

And a current semi-working MK1 C5 Hdi 110.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by GiveMeABreak »

Your washer pump might be washed out!

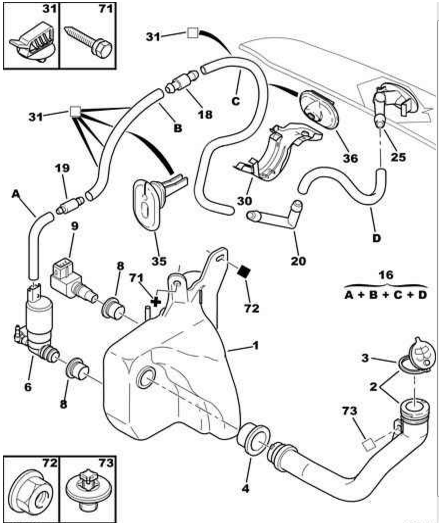

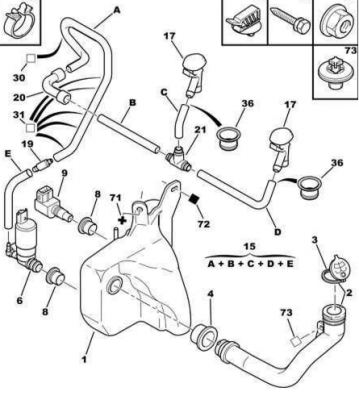

Here's a couple of diagrams for the front and the rear washing circuit / pipes etc.
Front
Spurious Washer A.PNG
Rear
Spurious Washer Rear.PNG
The pump is Part number: 6434 75 for your C5 Estate (item number 6 on the diagrams). Assuming it's not a kinked pipe anywhere - there could be some crud or scale in the pump, but at these prices it probably won't break the bank to replace it.

There's one on Amazon for £8 here:
https://www.amazon.co.uk/6434-75-Window ... B0114DFBHS
Or a Genuine Citroen one on the bay of evil for £10 here:
https://www.ebay.co.uk/itm/Citroen-Peug ... 2366735107
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Hell Razor5543 »

The reservoir is down in the offside bumper area. It is likely there is a valve in the line somewhere to make sure the water does not flow back down (so you will have water spraying when you require it NOW, not in a few seconds time). I have replaced the pump (you can get them from GSF for a few quid), and you could, once you get the pipes off the pump (don't get them the wrong way round), try blowing from that end, to see if there is a blockage (other than the valve).
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Gibbo2286
(Donor 2020)
Posts: 7170
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Gibbo2286 »

I'm not sure but isn't part 19 in those diagrams the one way valve?

On my mk 2 the hose had a hole rubbed into it where it passes over the under wing protection and the water was just running out onto the floor
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by GiveMeABreak »

Part 19 just states Union Gibbo - and this model states 'sans clapet' for the pump (without valve) - It's correct for the VIN of this vehicle.
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Hell Razor5543 »

Part 18 might be the valve.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by GiveMeABreak »

18 is a 2-way union.
Please Don't PM Me For Technical Help

Marc
Spurious
Posts: 36
Joined: 02 Jan 2013, 14:03
Location: Greater Manchester (Formerly of Ireland)
My Cars: Well missed Xantia Activa
Another missed Xantia 2.0hdi
Current C5 Estate HDi
x 1

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Spurious »

GiveMeABreak wrote: 09 Jan 2018, 17:22 18 is a 2-way union.


That's what it is. It's just plastic, there's no one-way valve in it. That's the one near the corner of the bonnet.

I'll have to trace it back to the pump and troubleshoot from there. Is it a faff getting it off? Could you get under it from the wheel cover?
Phase 2 Xantia HDi
Sold
Phase 1 Xantia Activia
Sold :(
Phase 2 Citroen C5
Sold

And a current semi-working MK1 C5 Hdi 110.
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Hell Razor5543 »

You will have to remove the forward plastic cover. It is not too bad, just a bit cramped. I wonder if the nozzles have valves in them?
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
old'uns
Posts: 558
Joined: 06 Mar 2010, 20:21
Location: Cannock / 72800 sarthe
My Cars: '02 C5 - gone
'09 X7 - gone
CMax - X7 replacement - gone
Acadiane - lost to a V5c applicant
'06 C5 VTR auto est
'90 Honda Beat
'73 ST70 Dax
'75 ST Dax - 120 powered
x 127

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by old'uns »

sure i had this on my mk1.....diaphragm on the pump had a hole in it?
TBH can't remember how i fixed it, a long time ago!
currently '06 C5 2.0 HDi auto estate Tip run and France trekker - well should be!! occupied currently by '10 Superb DSG 170 elegance- whistles and bells that work
Spurious
Posts: 36
Joined: 02 Jan 2013, 14:03
Location: Greater Manchester (Formerly of Ireland)
My Cars: Well missed Xantia Activa
Another missed Xantia 2.0hdi
Current C5 Estate HDi
x 1

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Spurious »

Hell Razor5543 wrote: 09 Jan 2018, 17:46 You will have to remove the forward plastic cover. It is not too bad, just a bit cramped. I wonder if the nozzles have valves in them?



They might do as the little plastic unions don't.

Thanks for all the ideas. I'll strip it back during the week at some point and see if I can figure out what's going on.

Is there a reason why the rear washer is working when the front is activated? Blockage diverting the pressure along to the back?
Phase 2 Xantia HDi
Sold
Phase 1 Xantia Activia
Sold :(
Phase 2 Citroen C5
Sold

And a current semi-working MK1 C5 Hdi 110.
dnsey
Posts: 1538
Joined: 20 Oct 2004, 01:39
Location:
My Cars:
x 19

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by dnsey »

The washer pump uses a shuttle valve to direct the water to front or back, depending on which way the motor turns, which is of course decided by the switching system. The valve can stick and cause your symptoms, but it's not really worth trying to repair except for fun, as you can get a pattern replacement pump complete for under a tenner.
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Hell Razor5543 »

The pump is a motor that can run either way (depending on the polarity of the voltage). When it spins one way the front nozzles get the water, while spinning it the other way sprays the rear windscreen.

This is the pump I got from GSF;

https://www.gsfcarparts.com/catalogsear ... +wash+pump
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
Fake Concern
Posts: 1033
Joined: 27 Dec 2012, 10:41
Location: East Sussex
My Cars:
x 64

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by Fake Concern »

dnsey wrote: 09 Jan 2018, 19:23 The washer pump uses a shuttle valve to direct the water to front or back, depending on which way the motor turns, which is of course decided by the switching system. The valve can stick and cause your symptoms, but it's not really worth trying to repair except for fun, as you can get a pattern replacement pump complete for under a tenner.

This is most likely your problem. I've fixed them, it's pretty easy I followed a youtube guide for my daughter's Clio, but the C4 was the same & I expect so is the C5.

Fake Concern, Volvo C30 T5 2011
Mrs Concern, Renault Moodus 1.6 Privilege 2004
Ms Concern No1, Pug 207 1.4 2008
Ms Concern No2, Citroen C4 VTS 2007
dnsey
Posts: 1538
Joined: 20 Oct 2004, 01:39
Location:
My Cars:
x 19

Re: Confused windscreen washer; front not working. [C5 Mk1)

Post by dnsey »

Yes, it can certainly be done (I too have repaired them), but IME the valve body can become quite brittle, and break when removing it from the pump housing. You're then left with no washers until you can get a new pump!
