Xantia front rises on full lock

Post by Stewart(oily) »

Hi all, I am sure I have encountered this in the past, the front end of my 99 Xantia rises when the car is on full lock,it drops slowly back to normal once straightened up and behaves normally when doing citaerobics, I lubricate height correctors every year though it is due some fresh LHM .
BXs since 1993 built 1.9 TZD turbo, got a S2 Xantia estate, brilliant car! 2013, Xantia HDI LX 110 2000 new car with 122,000, l C2 HDI Rusty rocket, C3 Picasso HDI new to me.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia front rises on full lock

Post by GiveMeABreak »

I think all my hydro Citroens have done this, extra clearance for the wheel arch.
Please Don't PM Me For Technical Help

Marc
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia front rises on full lock

Post by CitroJim »

It's completely normal...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
MikeT
Posts: 4809
Joined: 11 Jun 2007, 16:17
Location: Christchurch, Dorset. UK
My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon
x 231

Re: Xantia front rises on full lock

Post by MikeT »

Even my C5 does it.
User avatar
Mandrake
Posts: 8615
Joined: 10 Apr 2005, 17:23
Location: North Lanarkshire, UK
My Cars:
x 664

Re: Xantia front rises on full lock

Post by Mandrake »

GiveMeABreak wrote: 08 Nov 2017, 14:23 I think all my hydro Citroens have done this, extra clearance for the wheel arch.

Not all Hydro Citroen's do it, only some of those with McPherson struts like Xantia, XM and C5.

GS, DS and CX with double wishbones never did this, and I believe the BX doesn't do it either. (I've never driven a BX)

It's not on purpose either, its a side effect of a geometry error caused by the way the roll bar is attached directly to the side of the hydraulic ram/strut.

If you watch closely you'll see that when you turn the steering the main body of the ram turns with it, as does the "loop" on the side of the ram that the drop-link bolts to. Whether you turn the wheel left or right you are pulling the top of the drop-link "away" from the roll bar at an angle, (it is no longer vertical as it is when the steering is straight ahead) this causes the roll bar to rotate in the same direction it would if the suspension height was too low - the height corrector, measuring only roll bar rotation, sees this "error" in the roll bar orientation, assumes the height is too low and lifts the car up a bit to compensate. When you straighten up it corrects the other way.

GS/DS/CX don't suffer from this problem because the roll bar attaches to the upper wishbone arm and thus is not affected by steering. I believe on the BX despite being a McPherson strut design the roll bar attaches to the lower arm instead of to the strut - if this is true, it also won't be affected by this problem as the lower arm will not move when steering...
Simon

1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White

2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia front rises on full lock

Post by GiveMeABreak »

I'm sure the X7 does it occasionally and that has a double wishbone setup without Mcpherson struts.
Please Don't PM Me For Technical Help

Marc
User avatar
Stickyfinger
(Donor 2016)
Posts: 10411
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: Xantia front rises on full lock

Post by Stickyfinger »

GiveMeABreak wrote: 08 Nov 2017, 16:31 I'm sure the X7 does it occasionally and that has a double wishbone setup without Mcpherson struts.


Mine does, but as much as the Mk1/2's did.

My Activa does not however......not that I have noticed anyway (will try that tomorrow)
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
User avatar
Mandrake
Posts: 8615
Joined: 10 Apr 2005, 17:23
Location: North Lanarkshire, UK
My Cars:
x 664

Re: Xantia front rises on full lock

Post by Mandrake »

GiveMeABreak wrote: 08 Nov 2017, 16:31 I'm sure the X7 does it occasionally and that has a double wishbone setup without Mcpherson struts.

Where and how are the height sensors connected ?
Simon

1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White

2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
User avatar
Stickyfinger
(Donor 2016)
Posts: 10411
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: Xantia front rises on full lock

Post by Stickyfinger »

roll bars
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia front rises on full lock

Post by GiveMeABreak »

On the Roll bars for the 4 cylinder and on each wheel for the 6 Cylinder Models, as here:

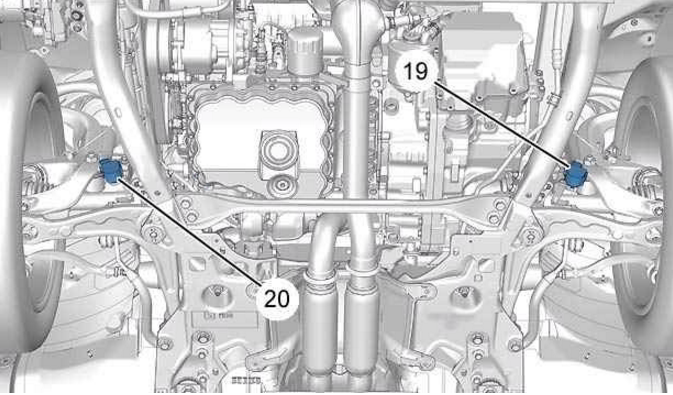

6 Cylinder Front

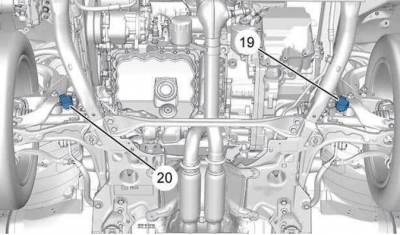

6 Cyl Height Correctors.PNG

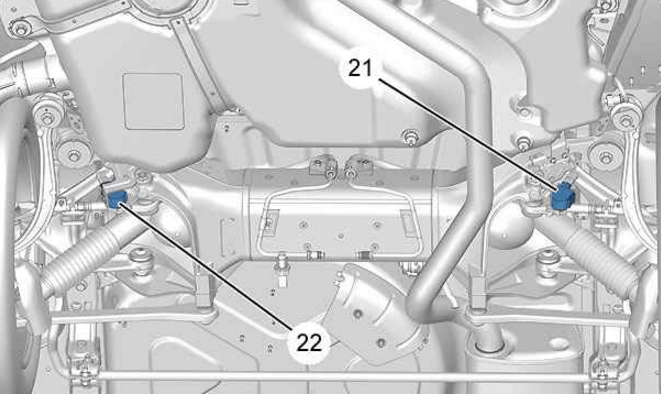

6 Cyl Rear
6 Cyl Rear Height Correctors.PNG

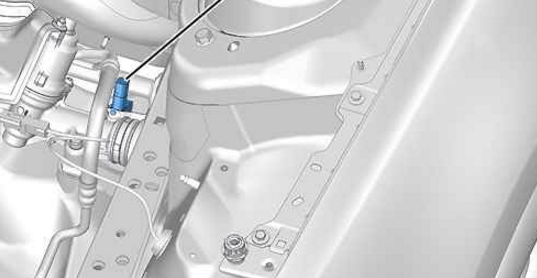

4 Cylinder Front

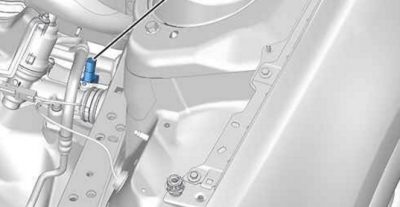

4 Cyl Height Corrector.PNG

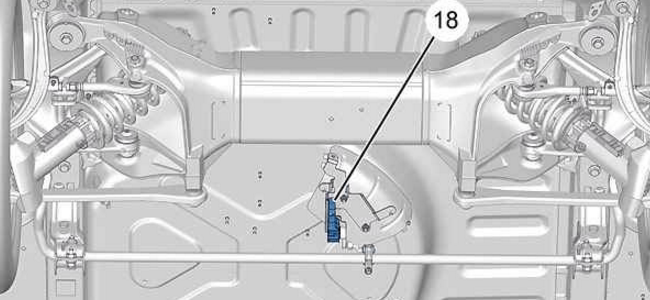

4 Cyl Rear
4 Cyl Rear Height Corrector.PNG
Please Don't PM Me For Technical Help

Marc
Stewart(oily)
Posts: 893
Joined: 07 Oct 2005, 16:31
Location: North Wales
My Cars: Citroens since 1990, BX Diesel, GTI, TZD with 1.9 TD running extra boost before it was fashionable!, ZX Volcane TD, S2 Xantia break 1.9TD, Xantia HDI 110, currently zipping about in a C2 Diesel. C2 died from the dreaded worm, C3 Picasso HDI Exclusive, the adventure continues.
x 31

Re: Xantia front rises on full lock

Post by Stewart(oily) »

Thank you all for the replies, you would think that after the last 11 years in Xantias, and even more in BXs previous to that you would think that I might have noticed :)
BXs since 1993 built 1.9 TZD turbo, got a S2 Xantia estate, brilliant car! 2013, Xantia HDI LX 110 2000 new car with 122,000, l C2 HDI Rusty rocket, C3 Picasso HDI new to me.
Xantippa
Posts: 490
Joined: 05 Feb 2012, 15:51
Location: Finland
My Cars: Now:
C5 X7 HDi 240 Exclusive Tourer
ZOE 22kwh Intense
Before:
C4 1,6 Coupe Automatic
C5 X7 HDi136 Exclusive Sedan A
Xantia HDi110 Berline
Xantia 1,8SX Berline
x 28

Re: Xantia front rises on full lock

Post by Xantippa »

On later C5 X7 4-cylinder models there is one height sensor front and two on the rear axle - at least on HDi180 model.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia front rises on full lock

Post by GiveMeABreak »

Show me please - that's not documented anywhere that I can see. Only ever one on the rear and one of the front for 4 Cyl models in the docs. :-?

Found it - though not obvious there is a right and left one mentioned - so we can now add this to the above!
It shows a left and right sensor but just one pickup, so wondering if this unit combines the 2 or there are 2 of these as well?

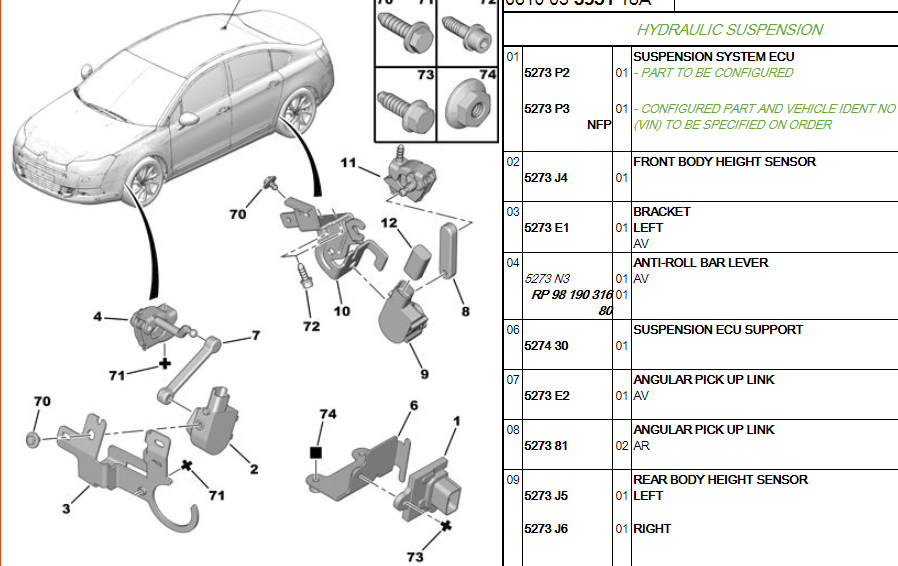

c5 180.PNG
