1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

Post by kenbw2 »

I'm looking to replace my fan/aux/alternator belt. I've done a few before on the XUD/TUD but I'm a bit stumped with this one.

On my TUD I had a metal rod that was tightened with allen keys. On my XUD the tensioner moved freely with a bit of leverage. This DW8 one doesn't seem to have either.

Could anyone point me towards a way to slacken off the belt?

kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: 1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

Post by kenbw2 »

I'm gonna have another go with this to replace the PAS pump, so I'll bump this thread.

Do I stick an allen key in the middle part and rotate it? Or will that take the pulley off?

Edit: upon further research, it looks like the top one is actually the tensioner. Could anyone confirm?
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37011
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5647

Re: 1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

Post by GiveMeABreak »

Ken - I'm not sure if I have your VIN, (ending 443?) but there are 29 (!) types of alternator for this vehicle. Anyway, looking at the generic picture and fixings below they state the main ones as:

(5) Retractor Roller
(7) Retractor Roller
(8) Tensioner Alternator
(70) Pin
Ken 1.PNG
Please Don't PM Me For Technical Help

Marc
Stewart(oily)
Posts: 893
Joined: 07 Oct 2005, 16:31
Location: North Wales
My Cars: Citroens since 1990, BX Diesel, GTI, TZD with 1.9 TD running extra boost before it was fashionable!, ZX Volcane TD, S2 Xantia break 1.9TD, Xantia HDI 110, currently zipping about in a C2 Diesel. C2 died from the dreaded worm, C3 Picasso HDI Exclusive, the adventure continues.
x 31

Re: 1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

Post by Stewart(oily) »

That looks like its holding the pulley on, there is usually something with a 3/8 square hole in it and a locknut, but on those I think its a heave the tensioner back, pin it, find the spring loaded one,
BXs since 1993 built 1.9 TZD turbo, got a S2 Xantia estate, brilliant car! 2013, Xantia HDI LX 110 2000 new car with 122,000, l C2 HDI Rusty rocket, C3 Picasso HDI new to me.
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: 1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

Post by kenbw2 »

GiveMeABreak wrote: 08 Nov 2017, 23:30 Ken - I'm not sure if I have your VIN, (ending 443?) but there are 29 (!) types of alternator for this vehicle. Anyway, looking at the generic picture and fixings below they state the main ones as:

(5) Retractor Roller
(7) Retractor Roller
(8) Tensioner Alternator
(70) Pin


I do have the VIN, and just discovered tonight that I should sign up to Citroen's service site, not Peugeot's. I assumed Peugeot would recognise Citroen VINs, but evidently not.

I did see the ridiculous number of alternators, but now I've inputted my VIN I'm down to just this:


Struggling to see what's what on there without the context of the belt, but it does appear that (7) is the tensioner roller, and would be in the middle.

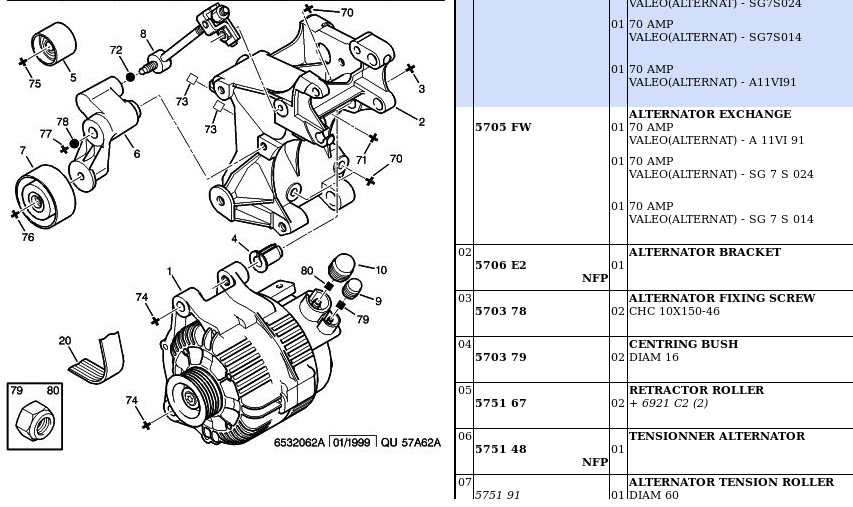

This seems to be in contradition with this diagram I found (mine looks like top-middle without the AC):


I remember that middle roler just wouldn't budge.

Do I have anything to lose by trying a spanner on the top one?
wheeler
Posts: 6849
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 718

Re: 1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

Post by wheeler »

looks like you have to slacken bolt 77 then either loosen or tighten the nut at the top of the rod at number 8 to loosen/tension the belt.
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: 1.9D DW8 Dispatch: Trying to replace the fan belt, is the tensioner auto- or manually adjusted?

Post by kenbw2 »

wheeler wrote: 09 Nov 2017, 10:43 looks like you have to slacken bolt 77 then either loosen or tighten the nut at the top of the rod at number 8 to loosen/tension the belt.


Finally got it.

This was the solution for mine, although even with diagrams I was confused. I was mistakenly looking between the timing belt cover and PAS pump. Had to go to a garage to ask where it was, which he showed me for the price of a coffee.

For anyone else struggling like I did:

First slacken the tensioner using a 10mm allen key just above the tensioner

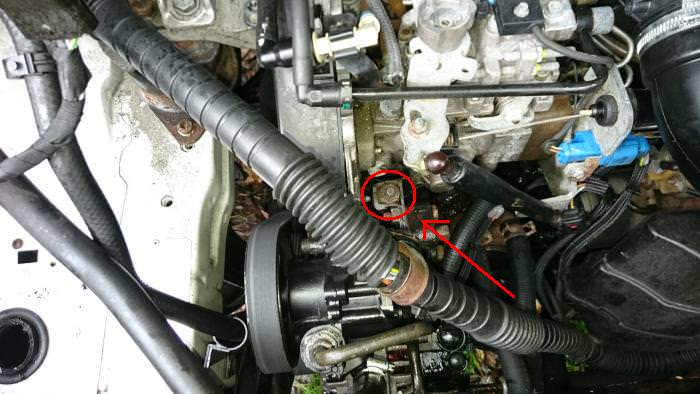

Then turn the nut just in front of the fuel pump anitclockwise:

Post Reply
