Xantia P bush fitting

Post by citroenxm »

Hi all..

Is there a knack to knowing the correct position for the front lower wish bone P bush to go on.? The arm i have already off the car doesnt haveca bush on it.. so i want to get the arm ready to do a swap over... but need to know what orientation and angle it needs to go on...

Thanks..
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
User avatar
CitroJim
A very naughty boy
Posts: 49534
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6163
Contact:

Re: Xantia P bush fitting

Post by CitroJim »

Yes, and no Paul... I have a set of scrap ones I use as templates... Somewhere on here are some photos I took of them alignments of the bushes... If you can't find them, and I can't right now, I'm happy to take some more pictures to show exactly the alignment..

Basically, you can use the casting flash webs as alignment references...

Let me know if you want some pictures Paul ;)
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Re: Xantia P bush fitting

Post by citroenxm »

Casting flash webs!? What on xantia cars is that!??
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
User avatar
CitroJim
A very naughty boy
Posts: 49534
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6163
Contact:

Re: Xantia P bush fitting

Post by CitroJim »

citroenxm wrote: 04 Jul 2017, 10:26 Casting flash webs!? What on xantia cars is that!??


Casting flash is the bits of metal that ooze out at the time of casting from the mould joints; the moulds are normally in two halves. Casting flashes are ground down as part of the finishing process but remain visible...

Do you want the pictures or not Paul?

If you do I'll take them and publish them and then you can see exactly what casting flash is ;)
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
CitroJim
A very naughty boy
Posts: 49534
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6163
Contact:

Re: Xantia P bush fitting

Post by CitroJim »

Paul, here's the pictures:

The 'casting flash' is the line you can see on the side of the arm ;)



Hope this helps you to align the bushes Paul...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
elma
Posts: 3745
Joined: 13 May 2007, 02:17
Location: United Kingdom
My Cars: Undisclosed
x 287

Re: Xantia P bush fitting

Post by elma »

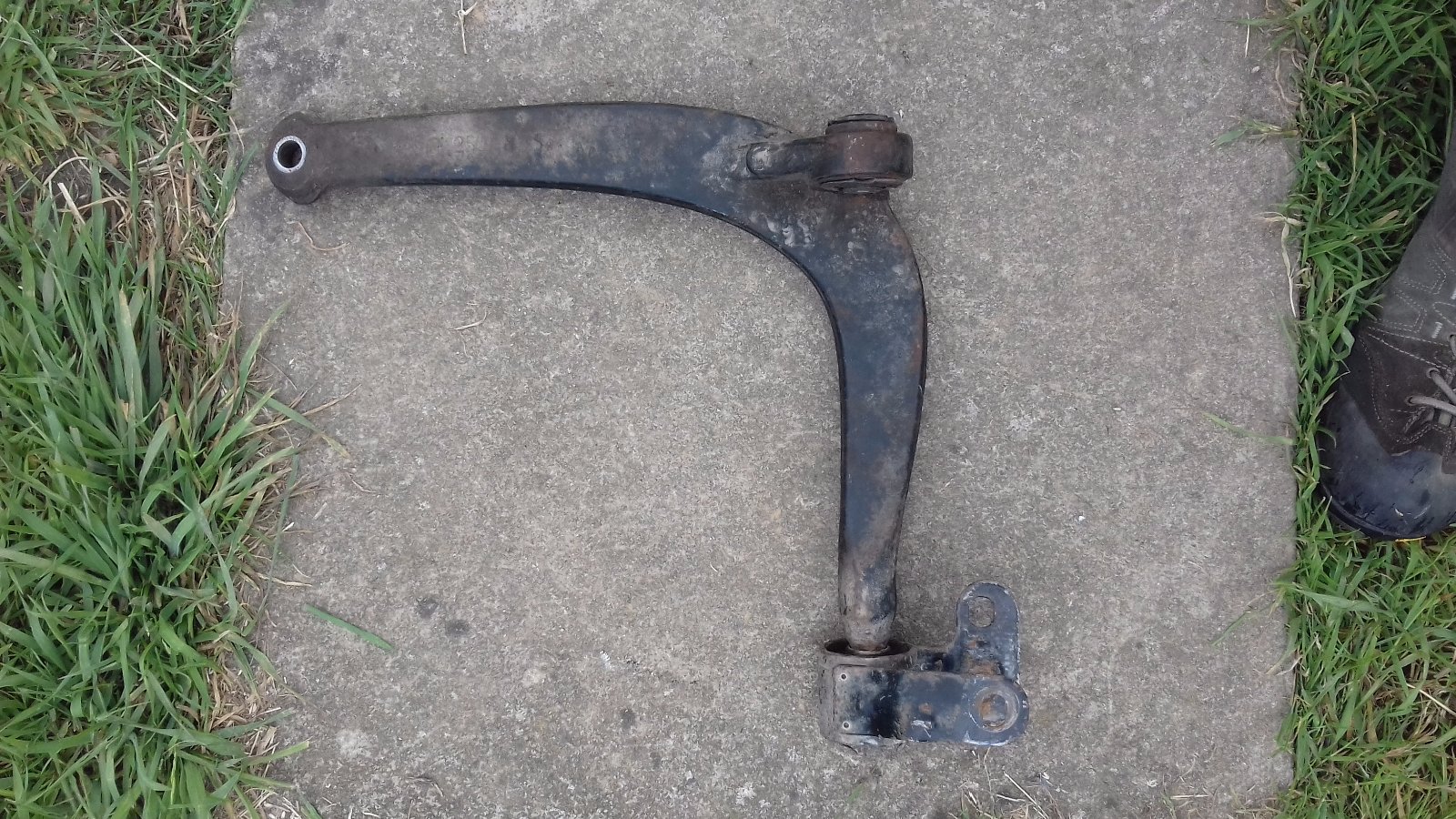

If it helps further heres an os arm with fairly new bushes.
