Citroen Parts List - Xantia

Post by Saraphee »

Would someone be kind enough to have a look at Citroen Service and see if they can give me numbers & diagrams for my 2.0i fuel tank and bits.
It seems my tank locking ring is not all it should be and having changed the mini board in the instrument cluster my mechanic now wants to change the sender unit.
Would be nice to see what we're talking about and at the same time gathering opinions on what we should be checking/changing next...................
User avatar
Old-Guy
Posts: 1798
Joined: 11 Sep 2008, 12:08
Location: Gloucestershire
My Cars: 2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
x 17

Re: Citroen Parts List - Xantia

Post by Old-Guy »

Xantia S1 2.0i tank unit.png
Xantia S1 2.0i Fuel pump.png
The relevant part numbers are
Item Part No Qty Description
06 96 107 921 01 GAUGE WITH PUMP
07 1531 25 01 FUEL TANK RING
08 1528 23 NFP 01 FUEL TANK SEAL DIAM 106X117 EP19
09 1530 13 01 (MUL) CLOSER DIAM 142 H10
01 DIAM 142 H10 - UNTIL RPO 07615
1530 15 01 DIAM 156 - SINCE RPO 07616
15 16 135 194 80 01 PUMP + FILTER KIT

15 is part of 06, available as a kit (because that's often what fails).
09 is the plastic 'bung' in the floor under the rear seat, carefully prise it out and you're looking at the tank unit (06) in the top of the fuel tank.
The Ring (07) needs to be treated with care - as with all plastic parts, they become brittle with age and heat. The ribs and indeed the whole ring are easily broken by rough attempts to un-screw the ring. The best way to remove it is to first lubricate the inside of the ring, give the freeing oil time to penetrate into the joint between it and and then very gently tap each rib in turn with a piece of wood until it moves. Do not use any tool which squashes the ring, this makes the thread bind and will probably break the ring.
2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - after 11 years now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
Saraphee
Posts: 111
Joined: 04 Dec 2015, 06:11
Location: N Thailand
My Cars: Citroen Xantia S1 Exclusive (Thai Version)
Citroen ZX 2.0i (Thai version)
Lotus Elite
Isuzu Grand Adventure
Rochdale Olympic
Scimitar SE5a
x 11
Contact:

Re: Citroen Parts List - Xantia

Post by Saraphee »

I think the ring (07) is what I'm looking for - because although my mechanic is not saying so I think that's what has happened to it - any ideas where I can find one, from a supplier who will post either to my forwarder in UK, or direct to me in Thailand please? Sadly too late to follow your advice on this one!
Is it possible to get sender alone or are they only available as one unit?
User avatar
Stickyfinger
(Donor 2016)
Posts: 10410
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: Citroen Parts List - Xantia

Post by Stickyfinger »

PM me your address....I have a spare (07) you can have.

If you wish to use the car before it arrives, do not fill the tank more than 3/4.....I lubricate the ring threads and seal with petroleum jelly before I replace the sender....
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Saraphee
Posts: 111
Joined: 04 Dec 2015, 06:11
Location: N Thailand
My Cars: Citroen Xantia S1 Exclusive (Thai Version)
Citroen ZX 2.0i (Thai version)
Lotus Elite
Isuzu Grand Adventure
Rochdale Olympic
Scimitar SE5a
x 11
Contact:

Re: Citroen Parts List - Xantia

Post by Saraphee »

PM sent - may I say your kindness is only exceeded by your excellent contributions to this forum.
If ever you pass through Chiang Mai you will find a warm welcome at my humble home.
Own Copyright
Own Copyright
User avatar
Stickyfinger
(Donor 2016)
Posts: 10410
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: Citroen Parts List - Xantia

Post by Stickyfinger »

Kob kun krub
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
User avatar
Stickyfinger
(Donor 2016)
Posts: 10410
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: Citroen Parts List - Xantia

Post by Stickyfinger »

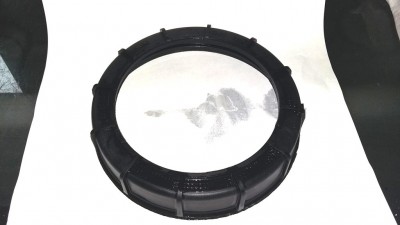

ready to send....
