C5 X7 Pollen Filter Replacement & Air System Clean How To
I thought I would post up a 'How To' on replacing the C5 X7 Pollen Filter and Cleaning the Air Con / Air System, specifically for the Right Hand Drive model, as the very few You Tube videos on this are for Left Hand Drive vehicles and are generally not in English. Citroen Service docs don't really help much either as they show the process for a Left Hand Drive model with pedals and different trim, as of course the heater components remain in the same place.
What You Will Need:
A Torx 20 Screwdriver
A Small Flat Blade Screwdriver

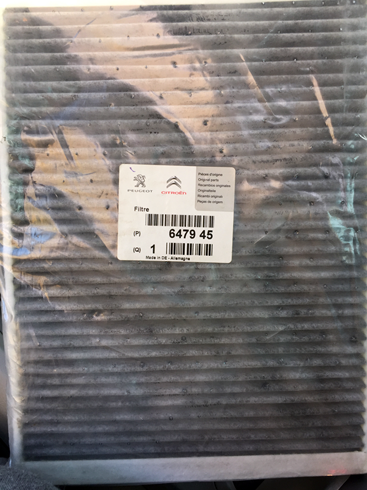

A Pollen Filter (Part 6479 45)
An Air Con Bomb or Similar (only if you are cleaning the A/C system) Air Con Bomb / similar Link
A Bright Torch

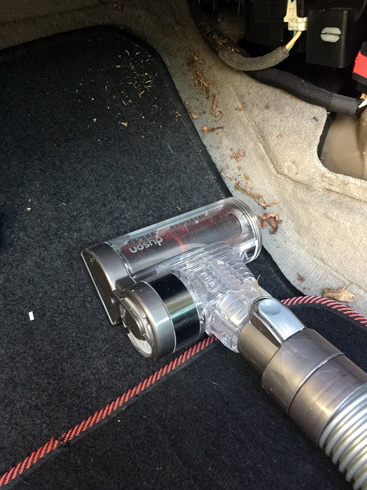

A Hoover
A Hot Bath Afterwards

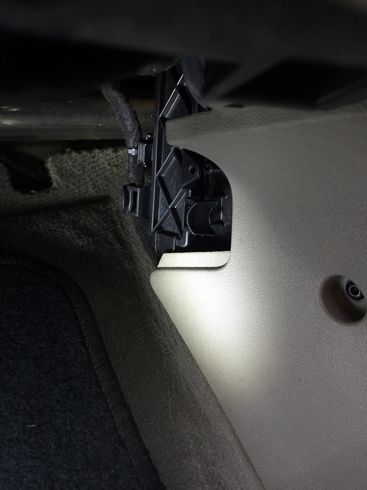

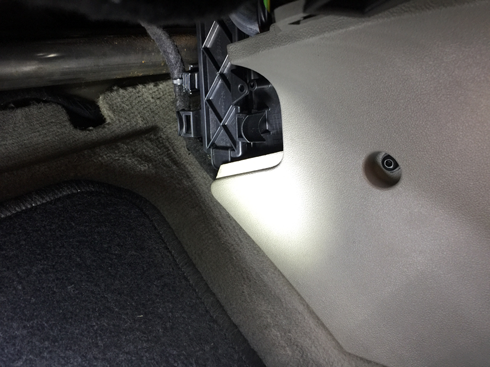

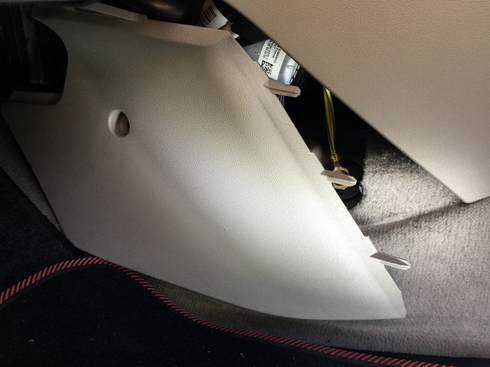

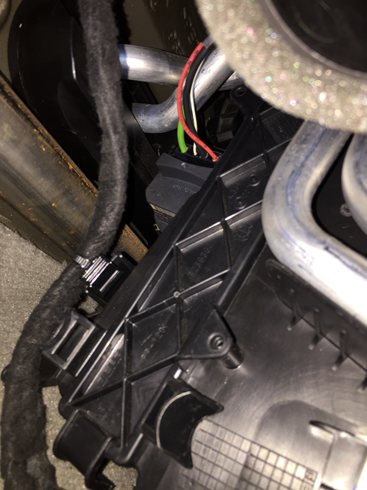

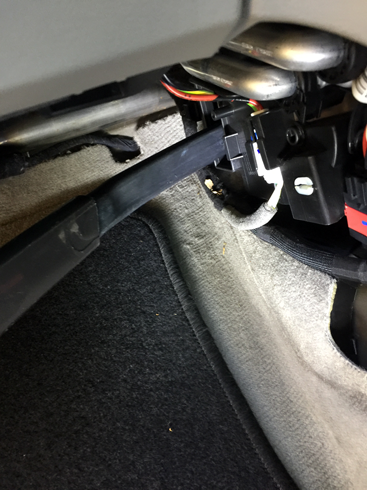

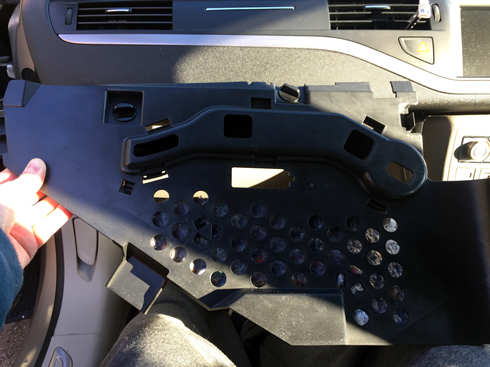

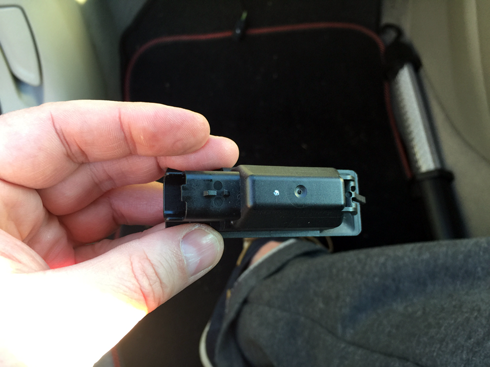

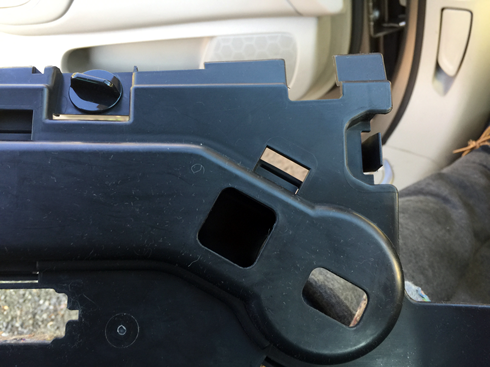

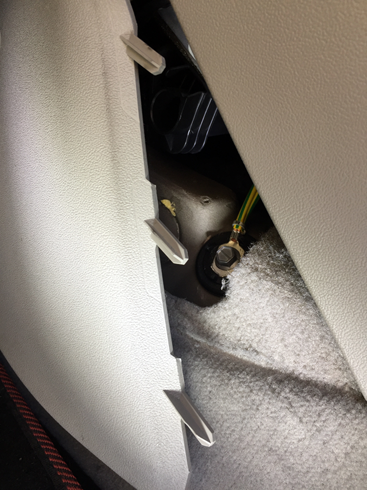

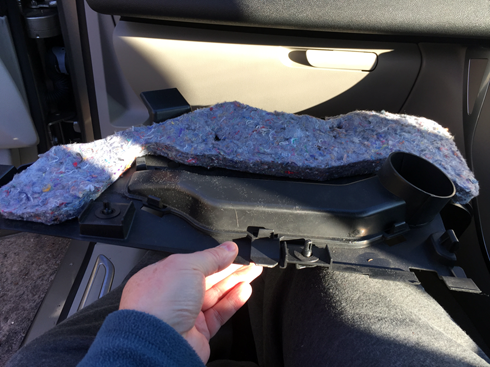

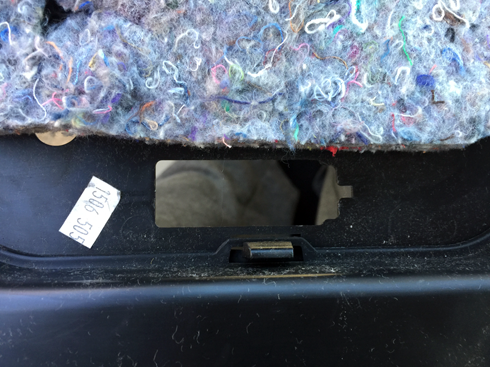

First of all there are 2 plastic screws under the passenger side glove box at the front that need to be turned 90°. On the right edge of the trim, you will see a snap connector - push this in and the trim will loosen. Be careful as the footwell passenger light (if fitted) will be attached. Using the Flat Head screwdriver, gently push in the small plastic lug of the Footwell Light and lever it out so that you can access the plug. Disconnect the plug by pushing in the lug and pulling. With the top trim removed, you can now see the Pollen Filter cover through the exposed recess. We will need to remove the right hand side trim to get further access. Undo the Torx screw. With the screw removed, gently slide the side trim forwards. There are 3 locating pins. Locating Pins: Now Assume the Position! VERY GENTLY pinch together the bottom 2 lugs to release the Pollen filter Cover. Once disengaged the cover will easily pull away. Note: There are 2 holes on the cover that are to allow the cover to be screwed back into place if you inadvertently break the lugs off

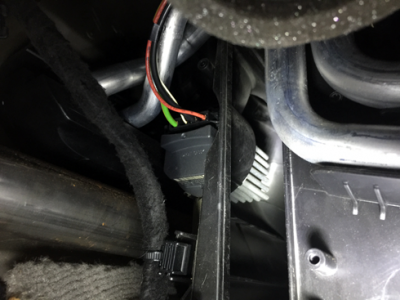

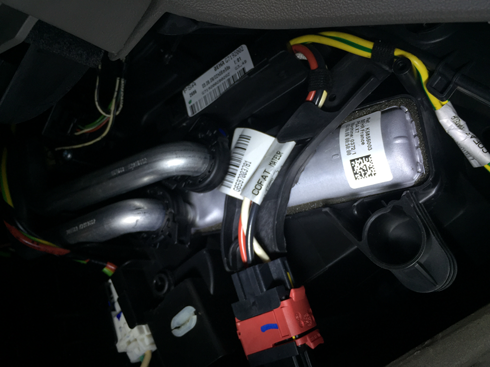

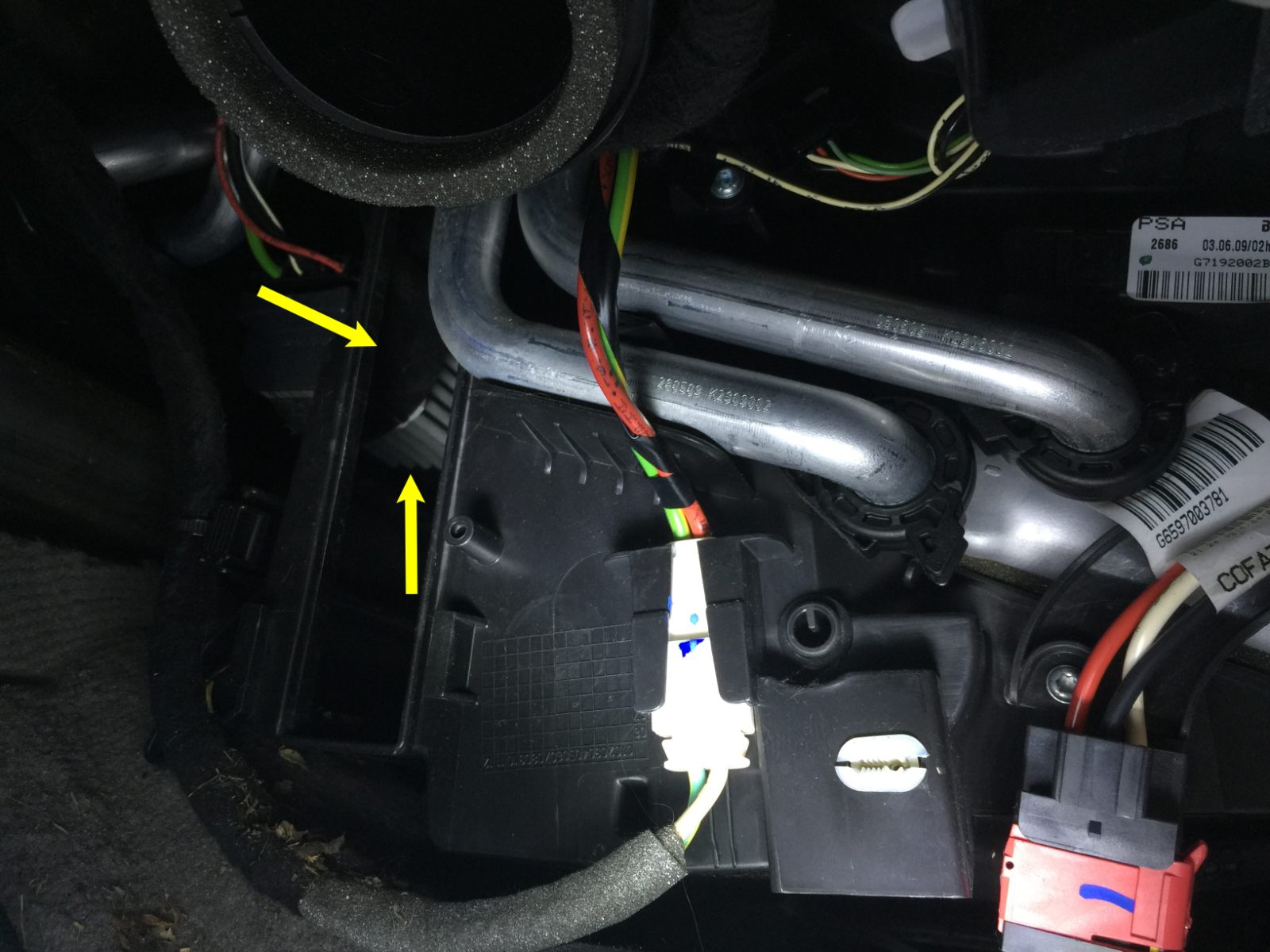

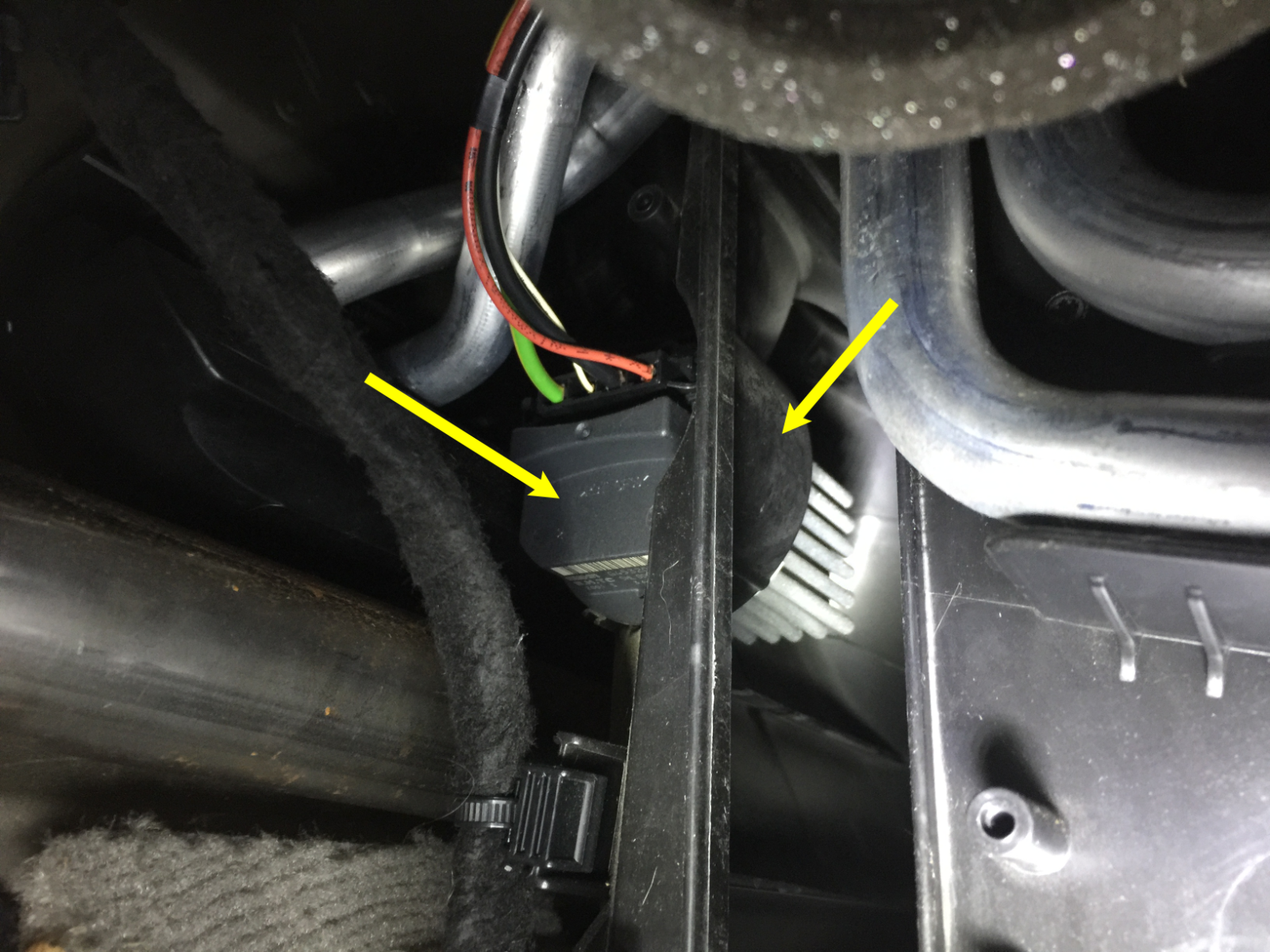

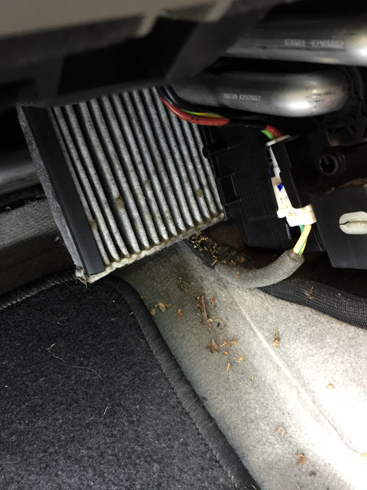

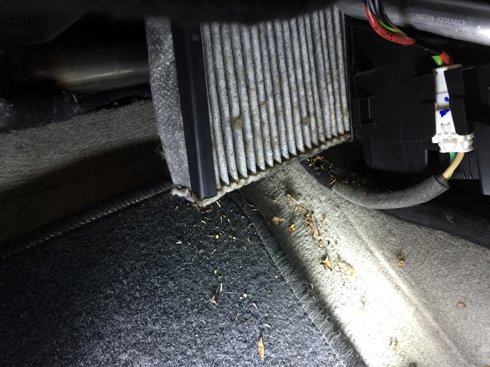

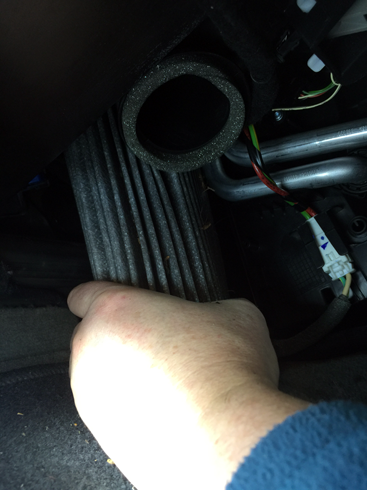

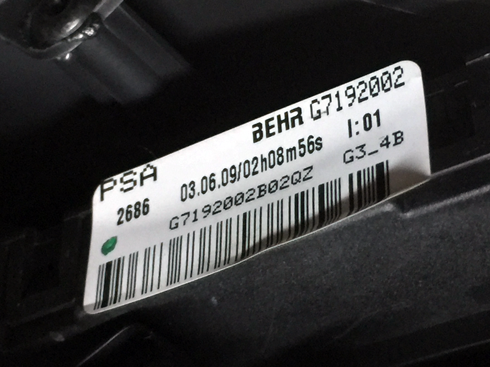

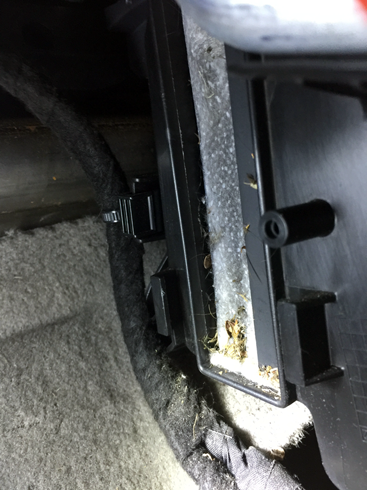

Now, get your torch in place and gently pull the filter out - be warned there will be a load of crud and bugs flying out as the old filter springs out! As You pull out the filter, try and roll it, whilst pulling gently as there isn't a lot of room to pull it out directly. Whilst we are here - this is the Heater Matrix Location! ... and the Heating Resistance unit - hmm, 2 Hours, 8 Minutes and 56 seconds on the label ??? - G7192002 is definitely the Heater resistance. perhaps that is the date and time is was made - how precise! And while we are still here, this is the Blower Motor Control Unit that you can just see up through the Pollen Filter housing (arrowed in Yellow). A better close up: Back to the job at hand - here's the grotty filter in all it's glory: Do I believe Citroen changed this last service... I don't think so Out with the big guns - time to hoover out all the rubbish. 'Bugs be Gone' We bought the car kit with our Dyson Animal - it has a bendy crevice tool - great for getting into the recess at an angle. Now for the Air System Clean (whilst the filter is out) Read the instructions carefully, as you don't want to be in the car when this goes off. These all work similarly, but basically, move all seats forward and tilted towards the front of the cabin. Close all windows and doors. Start the engine and use the following settings:
All Air vents Open
Ensure Air Distribution is Generalised throughout the car
Fan Speed Full
Set Temperature to coolest Level
Air Con On
Switch to RECYCLED AIR Mode

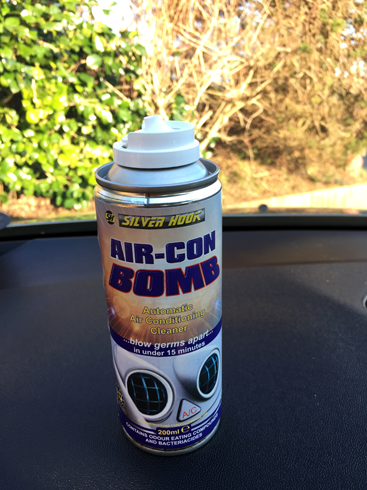

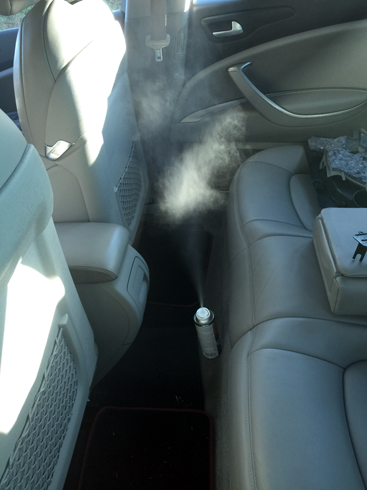

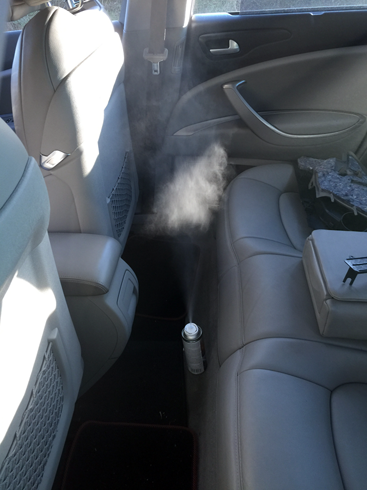

Place the Air Con Bomb in the Rear compartment on the floor in the middle. DO NOT activate it with your face looking down at it - Activate it from the side, then leg it and close the door. Wait until the Bomb has fully discharged itself, then wait another 5-10 minutes before opening the doors.

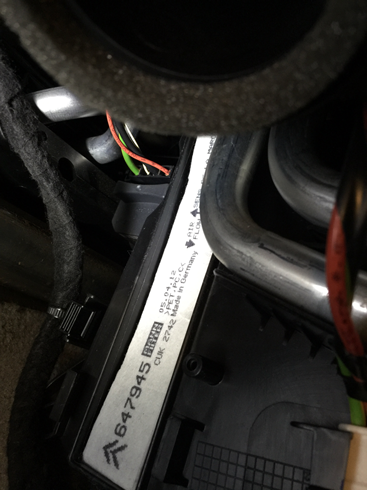

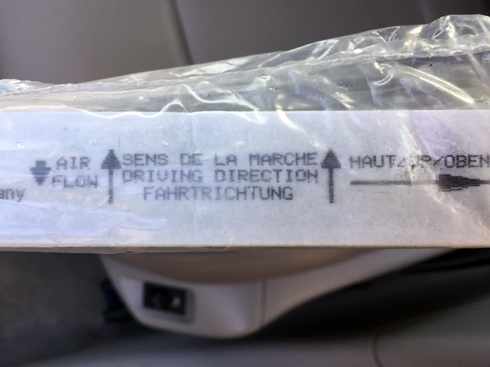

Enter the car and switch off the engine. Put the seats back and the passenger seat down to help with the acrobatics necessary to get the new filter in. Look at the notes or instruction either printed on the filter or on the instructions - the filter is designed to operate only one way and should be positioned so that the air flows correctly from the front of the car to the back of the car in the direction of the air flow as per the arrows: Get your torch again, and with the filter in the correct position, you will need to flex it gently, angle it in through the top, then at the bottom, wiggling it up and down as you gently push it in. Just keep using your fingers to push at the top and bottom equally until it goes in. Once in, pull it out slightly and give it a wiggle to help ensure that the concertina has expanded and that the filter is fully in position. Place your cover back on, and gently squeeze the clips, position the cover and release the clips. If you have broken these - you will need to use a couple of small screws to secure it back on. Slide your trim back on front to rear, ensuring the 3 pins locate properly, then screw back up once in position. Next thread the wiring plug back through the top trim, re-attach the Footwell Light and snap into place, position trim, click the snap connector into position and do up the trim screws. Job Done
Bath!
I can't really put a time on the job as I was taking pictures and had to wait for the chemicals to dissipate, but if I was doing the filter only, I would say about 30 minutes at least. Most of that is getting the old filter out, cleaning up and putting the new one back in.
What You Will Need:
A Torx 20 Screwdriver
A Small Flat Blade Screwdriver
A Pollen Filter (Part 6479 45)
An Air Con Bomb or Similar (only if you are cleaning the A/C system) Air Con Bomb / similar Link
A Bright Torch
A Hoover
A Hot Bath Afterwards
First of all there are 2 plastic screws under the passenger side glove box at the front that need to be turned 90°. On the right edge of the trim, you will see a snap connector - push this in and the trim will loosen. Be careful as the footwell passenger light (if fitted) will be attached. Using the Flat Head screwdriver, gently push in the small plastic lug of the Footwell Light and lever it out so that you can access the plug. Disconnect the plug by pushing in the lug and pulling. With the top trim removed, you can now see the Pollen Filter cover through the exposed recess. We will need to remove the right hand side trim to get further access. Undo the Torx screw. With the screw removed, gently slide the side trim forwards. There are 3 locating pins. Locating Pins: Now Assume the Position! VERY GENTLY pinch together the bottom 2 lugs to release the Pollen filter Cover. Once disengaged the cover will easily pull away. Note: There are 2 holes on the cover that are to allow the cover to be screwed back into place if you inadvertently break the lugs off
Now, get your torch in place and gently pull the filter out - be warned there will be a load of crud and bugs flying out as the old filter springs out! As You pull out the filter, try and roll it, whilst pulling gently as there isn't a lot of room to pull it out directly. Whilst we are here - this is the Heater Matrix Location! ... and the Heating Resistance unit - hmm, 2 Hours, 8 Minutes and 56 seconds on the label ??? - G7192002 is definitely the Heater resistance. perhaps that is the date and time is was made - how precise! And while we are still here, this is the Blower Motor Control Unit that you can just see up through the Pollen Filter housing (arrowed in Yellow). A better close up: Back to the job at hand - here's the grotty filter in all it's glory: Do I believe Citroen changed this last service... I don't think so Out with the big guns - time to hoover out all the rubbish. 'Bugs be Gone' We bought the car kit with our Dyson Animal - it has a bendy crevice tool - great for getting into the recess at an angle. Now for the Air System Clean (whilst the filter is out) Read the instructions carefully, as you don't want to be in the car when this goes off. These all work similarly, but basically, move all seats forward and tilted towards the front of the cabin. Close all windows and doors. Start the engine and use the following settings:
All Air vents Open
Ensure Air Distribution is Generalised throughout the car
Fan Speed Full
Set Temperature to coolest Level
Air Con On
Switch to RECYCLED AIR Mode
Place the Air Con Bomb in the Rear compartment on the floor in the middle. DO NOT activate it with your face looking down at it - Activate it from the side, then leg it and close the door. Wait until the Bomb has fully discharged itself, then wait another 5-10 minutes before opening the doors.
Enter the car and switch off the engine. Put the seats back and the passenger seat down to help with the acrobatics necessary to get the new filter in. Look at the notes or instruction either printed on the filter or on the instructions - the filter is designed to operate only one way and should be positioned so that the air flows correctly from the front of the car to the back of the car in the direction of the air flow as per the arrows: Get your torch again, and with the filter in the correct position, you will need to flex it gently, angle it in through the top, then at the bottom, wiggling it up and down as you gently push it in. Just keep using your fingers to push at the top and bottom equally until it goes in. Once in, pull it out slightly and give it a wiggle to help ensure that the concertina has expanded and that the filter is fully in position. Place your cover back on, and gently squeeze the clips, position the cover and release the clips. If you have broken these - you will need to use a couple of small screws to secure it back on. Slide your trim back on front to rear, ensuring the 3 pins locate properly, then screw back up once in position. Next thread the wiring plug back through the top trim, re-attach the Footwell Light and snap into place, position trim, click the snap connector into position and do up the trim screws. Job Done
Bath!
I can't really put a time on the job as I was taking pictures and had to wait for the chemicals to dissipate, but if I was doing the filter only, I would say about 30 minutes at least. Most of that is getting the old filter out, cleaning up and putting the new one back in.
Please Don't PM Me For Technical Help
Marc
Marc
Re: C5 X7 Pollen Filter Replacement & Air System Clean How To
Thanks for this, looks like something I might even be able to manage!
Cars in Wednesday for a full service. What filters would you expect to be included? You mention Citroen didn't do it - did you pay for it to be done and they Judy didn't do it?
Sent from my iPhone using Tapatalk
Cars in Wednesday for a full service. What filters would you expect to be included? You mention Citroen didn't do it - did you pay for it to be done and they Judy didn't do it?
Sent from my iPhone using Tapatalk
- GiveMeABreak
- Forum Admin Team
- Posts: 37402
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 X7 Pollen Filter Replacement & Air System Clean How To
Well That's what I think - because I have it regularly serviced with them - They are supposed to be replaced every 15k Km, so it is possible - but I think from now on I will Check myself - I've put a mark on the filter, so next time I want to check I'll know. They do different things at each service - so hard to say, but I'm glad I did it - the system is working with a new lease of life now - warp speed!
Please Don't PM Me For Technical Help
Marc
Marc
Re: C5 X7 Pollen Filter Replacement & Air System Clean How To
It's hit and miss with main dealers. The Scenic went to Renault for a full service at £150 and only got an oil and oil filter change.hoggers wrote:
Cars in Wednesday for a full service. What filters would you expect to be included? You mention Citroen didn't do it - did you pay for it to be done and they Judy didn't do it?
To me a full service is oil, air and fuel filters. Plus oil, spark plugs (on petrols) and whatever else is on the service schedule for the particular car at that age/mileage. It should also include checks of brake, pas and all other fluids with top ups if necessary handbrake adjustment, oiling and greasing of moving parts like door hinges, pedal pivots.
I'm yet to see a full service from a dealer I approve of, some independents do a fine job though in my opinion.
- Paul-R
- Donor 2023
- Posts: 6939
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1379
Re: C5 X7 Pollen Filter Replacement & Air System Clean How To
Nice guide Marc. It looks very similar to replacing the filter on the Mk1 from what I remember although I didn't have to get upside down.

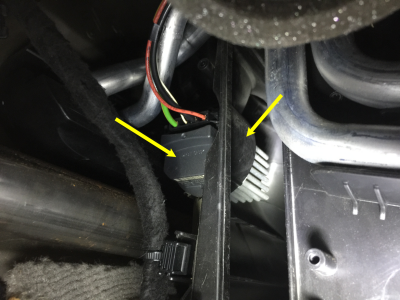

It's good to know that the resistance/control unit is on the passenger side this time as the heater blower decided not work on my car yesterday morning just when the inside was full of condensation after a cold night. I hoped that it return for the trip home but didn't so will be having a look at the fuse tomorrow. And possibly control unit...
It's good to know that the resistance/control unit is on the passenger side this time as the heater blower decided not work on my car yesterday morning just when the inside was full of condensation after a cold night. I hoped that it return for the trip home but didn't so will be having a look at the fuse tomorrow. And possibly control unit...
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- Stickyfinger
- (Donor 2016)
- Posts: 10445
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1296
- Contact:
Re: C5 X7 Pollen Filter Replacement & Air System Clean How To
GJob Marc, plan to do mine soon as well so this helps a lot
WHY is this showing as a double post ?
WHY is this showing as a double post ?
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- GiveMeABreak
- Forum Admin Team
- Posts: 37402
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 X7 Pollen Filter Replacement & Air System Clean How To
That's why I thought I'd take a pics of those other items whilst there as it may help put things into perspective seeing them in relation to the other parts.

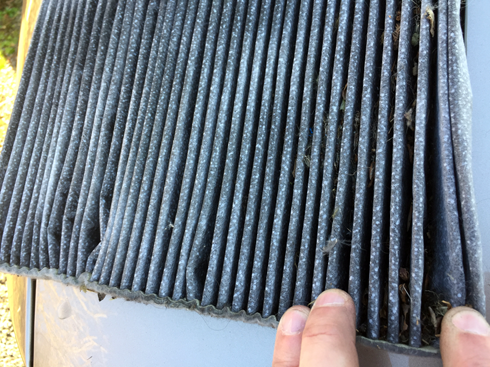

That filter was gross. The fan is running a hell of a lot better now Paul.
