Hi all,
I have the above mentioned van, a 2009 model, it's my second Relay and I've previously owned many Citroens, most notably a CX 2.4 Pallas and an SM.
Anyway, have you any idea how hard it is to Google the location of a relay on a Relay?
I've looked, but I cannot find the damned thing.
Glow plug relay, it's the big one with the 2 ring terminals and a multi plug.
Please, if anyone knows, it would be a big help. I need to replace it.
Thanks!
Citroen Relay 2.2hdi glow plug relay location?
Moderator: RichardW
-
- Posts: 5
- Joined: 09 Nov 2016, 17:38
- Location: Oxford UK
- My Cars: Relay L2H2 2.2hdi
- x 1
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay 2.2hdi glow plug relay location?
Welcome to the Forum.
If you post or PM your VIN it will help, as there are a multitude of Relay designs.
If you post or PM your VIN it will help, as there are a multitude of Relay designs.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 5
- Joined: 09 Nov 2016, 17:38
- Location: Oxford UK
- My Cars: Relay L2H2 2.2hdi
- x 1
Re: Citroen Relay 2.2hdi glow plug relay location?
Thanks,
VIN: VF7**************[VIN obfuscated, can be read by forum staff]
VIN: VF7**************[VIN obfuscated, can be read by forum staff]
-
- Posts: 5
- Joined: 09 Nov 2016, 17:38
- Location: Oxford UK
- My Cars: Relay L2H2 2.2hdi
- x 1
Re: Citroen Relay 2.2hdi glow plug relay location?
Whilst I'm here, I may as well tell the tale of woe.
New van to me, 130k miles. I've had it serviced plus new EGR valve, new silencer, new glow plugs, new fuel filter, new temp sensor. Also new heater control panel.
On cold mornings, it starts perfectly as always, then will tick over for about 30 seconds to a minute, then cut out.
It will repeat this behaviour until it starts to warm up, then is fine for the rest of the day.
The glow plugs do fire, they cut out after about 20 seconds, but I was wondering if the relay was sometimes not doing the job?
Everyone tells me it's not the glowplugs as once it's running, it should be fine... but I bougt a new relay just in case it was that, now I can't find the existing one...
It runs and performs flawlessly otherwise.
New van to me, 130k miles. I've had it serviced plus new EGR valve, new silencer, new glow plugs, new fuel filter, new temp sensor. Also new heater control panel.
On cold mornings, it starts perfectly as always, then will tick over for about 30 seconds to a minute, then cut out.
It will repeat this behaviour until it starts to warm up, then is fine for the rest of the day.
The glow plugs do fire, they cut out after about 20 seconds, but I was wondering if the relay was sometimes not doing the job?
Everyone tells me it's not the glowplugs as once it's running, it should be fine... but I bougt a new relay just in case it was that, now I can't find the existing one...
It runs and performs flawlessly otherwise.
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay 2.2hdi glow plug relay location?

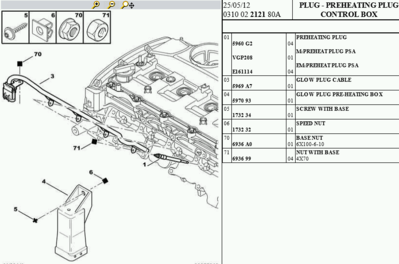

According to the specs, this has a pre / Post heating box which is controlled directly by the Engine Management ECU. - Item 4 in the diagram below:
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 5
- Joined: 09 Nov 2016, 17:38
- Location: Oxford UK
- My Cars: Relay L2H2 2.2hdi
- x 1
Re: Citroen Relay 2.2hdi glow plug relay location?
Yes, indeed. It's where to find it on the actual van that is eluding me...
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay 2.2hdi glow plug relay location?
There may be some other members with one of these engines - give it a while and see what comes back.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 5
- Joined: 09 Nov 2016, 17:38
- Location: Oxford UK
- My Cars: Relay L2H2 2.2hdi
- x 1
Re: Citroen Relay 2.2hdi glow plug relay location?
Thanks, I can wait. I've had the van 3 months and it's helped enormously with my patience.
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay 2.2hdi glow plug relay location?
I've had another trawl and it could be in several places! Makes it harder as this is the Ford Engine and the RPO number doesn't exist on the database - probably as it might have been made by FIAT in Italy just to confuse matters, referred to as the Jumper III, Relay II!
Anyway, in some CARS like the 406 in this video, it is located underneath the engine fuse box on the side shown here:
In the Van's case it might be near the passenger side top suspension strut - so look there for the fuse box. Secondly, it could be near or just underneath the passenger headlight.
If it's not in any of those locations - I admit defeat!
Anyway, in some CARS like the 406 in this video, it is located underneath the engine fuse box on the side shown here:
In the Van's case it might be near the passenger side top suspension strut - so look there for the fuse box. Secondly, it could be near or just underneath the passenger headlight.
If it's not in any of those locations - I admit defeat!
Please Don't PM Me For Technical Help
Marc
Marc
Re: Citroen Relay 2.2hdi glow plug relay location?
Surely it has to bee connected to the glow plugs with a wire and it's a case of following the wire. Usually easier said than done but it must be at the other end.
-
- Posts: 5
- Joined: 26 Aug 2023, 09:07
- Location: Worcestershire
- My Cars: Citroen Relay jumper camper conversion. 2010
Re: Citroen Relay 2.2hdi glow plug relay location?

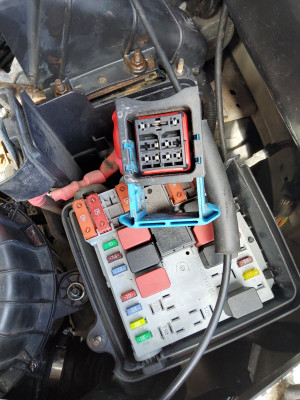

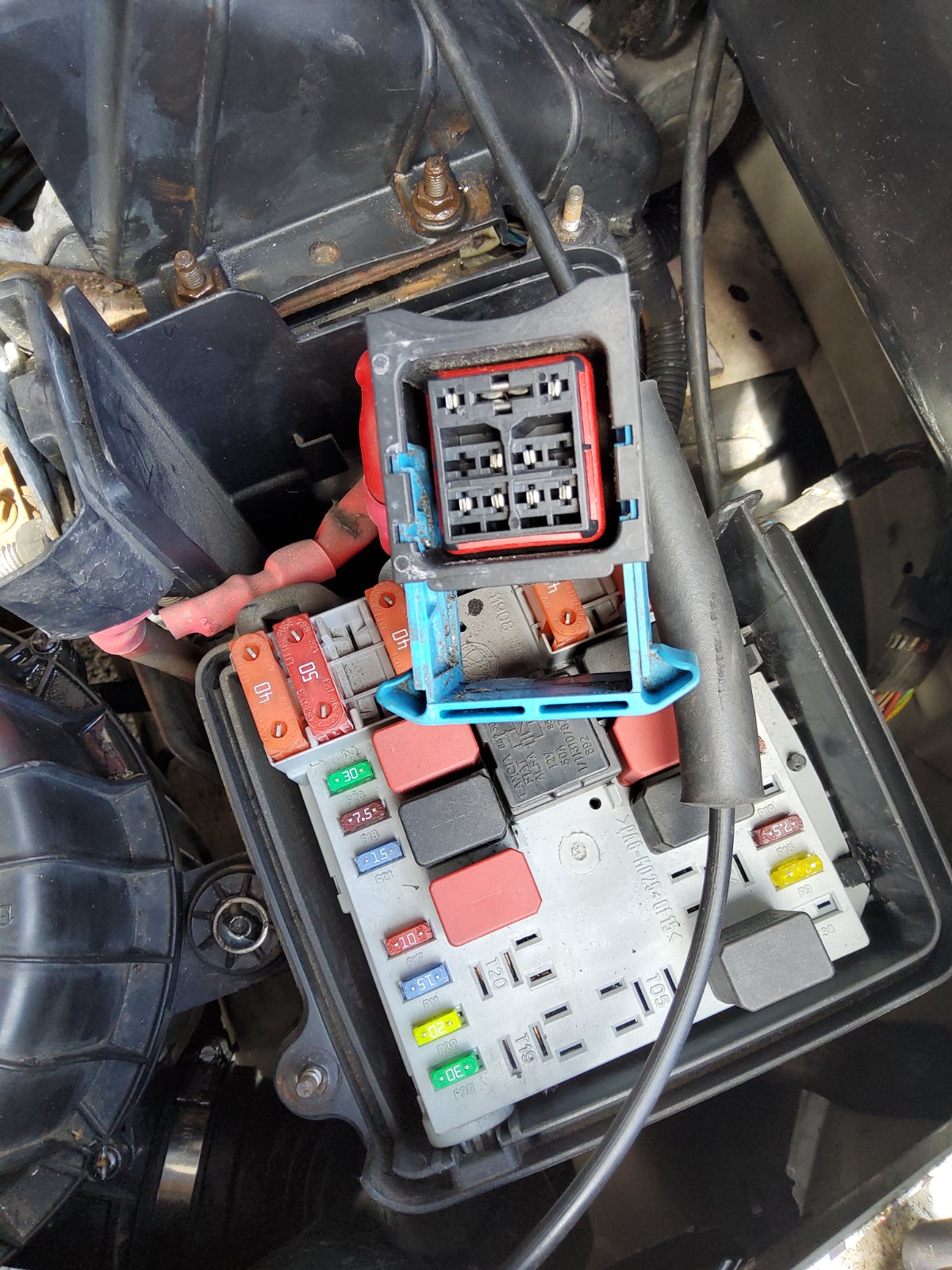

Has anyone removed the relay to test the 4 pins of the plug attached to the wiring loom . I've tried all 4 with a light pen but not one gives any power to light the pen up. I was told they shoukd all work the light pen when touched . 🥲
