Hydraulic safety valve
Hi All,

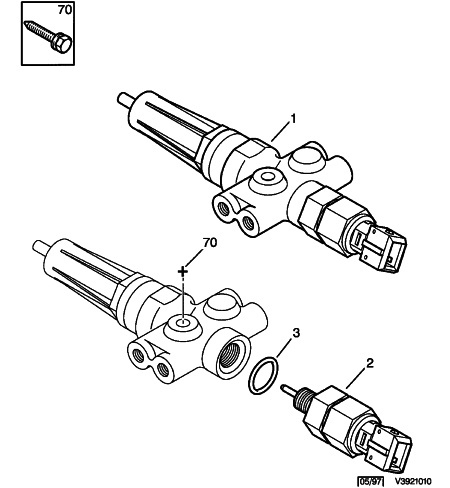

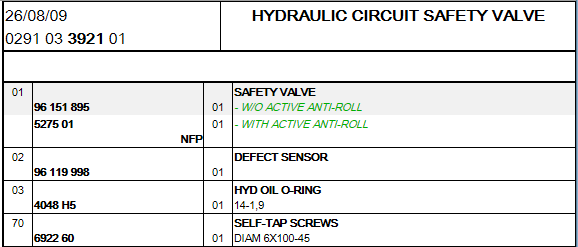

Does anyone have an exploded diagram of the safety valve
Kenny
Does anyone have an exploded diagram of the safety valve
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- KennyW
- Donor 2024
- Posts: 2507
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: Hydraulic safety valve
Re above I have searched the net and found nothing but I'm now looking for the position of the pipes or does it not matter.
Kenny
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- CitroJim
- A very naughty boy
- Posts: 49658
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6204
- Contact:
Re: Hydraulic safety valve
Kenny, I'll certainly have what you need but I'll have no access to it until later this afternoon..
It'll be in the Xantia Hydraulic Diagrams in the official Service manuals..
If you don't have what you need by the time I can get access to mine, I'll scan up what you need..
It'll be in the Xantia Hydraulic Diagrams in the official Service manuals..
If you don't have what you need by the time I can get access to mine, I'll scan up what you need..
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- Forum Treasurer
- Posts: 10890
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 1002
Re: Hydraulic safety valve

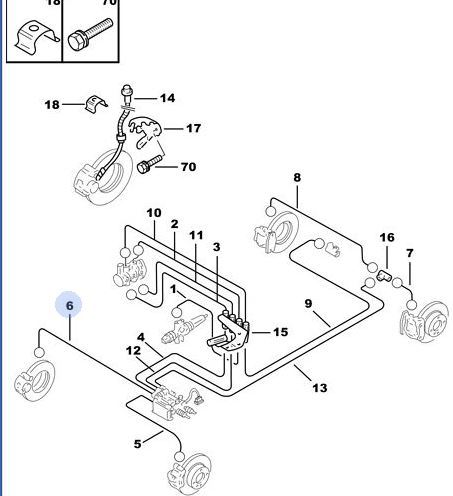

Critical what ports they go in, I would think....! Not exactly clear, but I think you can see it from service.citroen
Suspension pipes - feed in the bottom front port, outlet top front port
Brake pipe - out from the top rear port.
Suspension pipes - feed in the bottom front port, outlet top front port
Brake pipe - out from the top rear port.
Richard W
- KennyW
- Donor 2024
- Posts: 2507
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: Hydraulic safety valve
Richard and Jim,
I think I have worked it out from a diagram in my french Xantai book (Revue Technique Auotmobile) but the service site does not help as it shows 3 pipes going into the top which is not correct.
The order I have found is as follows
Supply from pressure regulator to safety valve top left (4.5mm) below safety valve to distributor valve, top right rear suspension to rear distributor valve and below safety valve to bulk head connector which goes to the height connector.
Kenny
I think I have worked it out from a diagram in my french Xantai book (Revue Technique Auotmobile) but the service site does not help as it shows 3 pipes going into the top which is not correct.
The order I have found is as follows
Supply from pressure regulator to safety valve top left (4.5mm) below safety valve to distributor valve, top right rear suspension to rear distributor valve and below safety valve to bulk head connector which goes to the height connector.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Re: Hydraulic safety valve
I can send you a picture of mine in situ if it helps.
You'll have to tell me where it is though as I've no idea what is is or does yet.
You'll have to tell me where it is though as I've no idea what is is or does yet.
- CitroJim
- A very naughty boy
- Posts: 49658
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6204
- Contact:
Re: Hydraulic safety valve
I'm massively delayed and it'll be a while yet before I have any access to my documentation... As soon as I can, with that and your picture James, that'll be give a good definitive answer...
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
- KennyW
- Donor 2024
- Posts: 2507
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: Hydraulic safety valve
James,
It is where the other 3 smaller pipes go I want to confirm. Anything which shows this will be great.
As per my earlier post I think I know but wish to confirm.
Kenny
It is where the other 3 smaller pipes go I want to confirm. Anything which shows this will be great.
As per my earlier post I think I know but wish to confirm.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
Re: Hydraulic safety valve

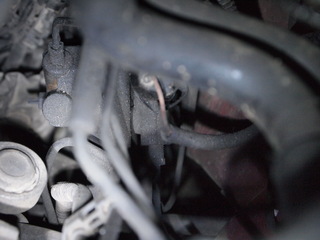

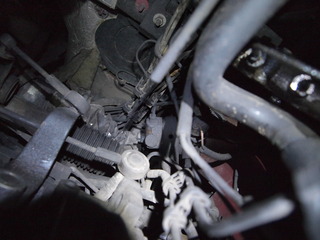

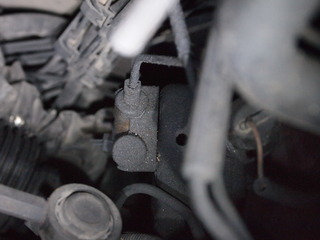

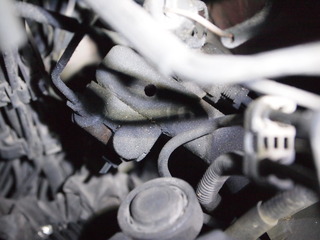

Safety Valve
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
- CitroJim
- A very naughty boy
- Posts: 49658
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6204
- Contact:
Re: Hydraulic safety valve
Kenny, I've only just got back home and no time now to scan up the picture now but hopefully this will help..
Imagine the security valve with the electrical socket and pressure switch pointing upwards..
On that view, the top left orifice is the high pressure inlet, top right orifice is outlet to the brakes.
Bottom right orifice is the outlet to the rear height corrector and bottom left orifice is to the front height corrector...
Hope that helps, I'll get the diagram posted as soon as I can tomorrow morning, hopefully...
Imagine the security valve with the electrical socket and pressure switch pointing upwards..
On that view, the top left orifice is the high pressure inlet, top right orifice is outlet to the brakes.
Bottom right orifice is the outlet to the rear height corrector and bottom left orifice is to the front height corrector...
Hope that helps, I'll get the diagram posted as soon as I can tomorrow morning, hopefully...
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
- CitroJim
- A very naughty boy
- Posts: 49658
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6204
- Contact:
Re: Hydraulic safety valve
Kenny,

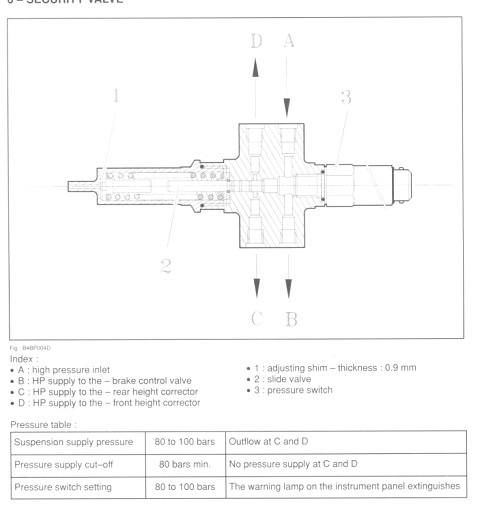

Finally, a diagram of the ports on the security valve and an explanation of how they operate..
