Xantia octopus solution

Post by xantos »

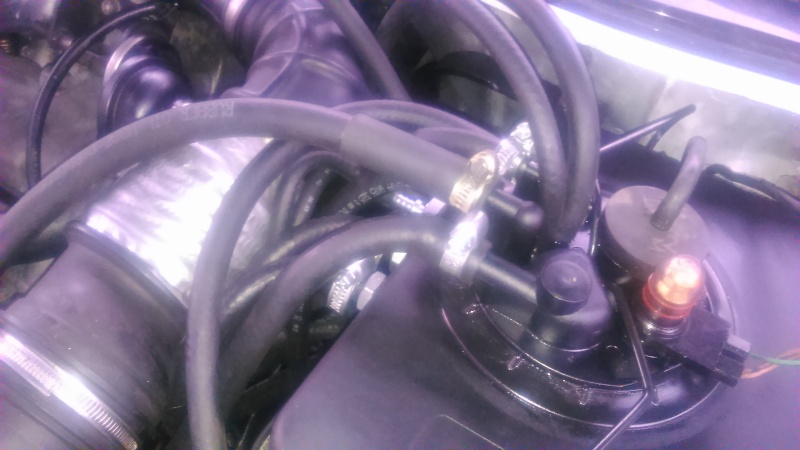

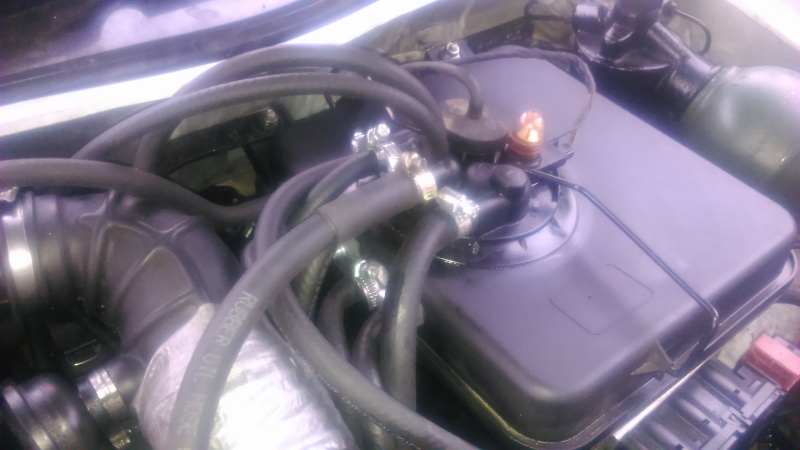

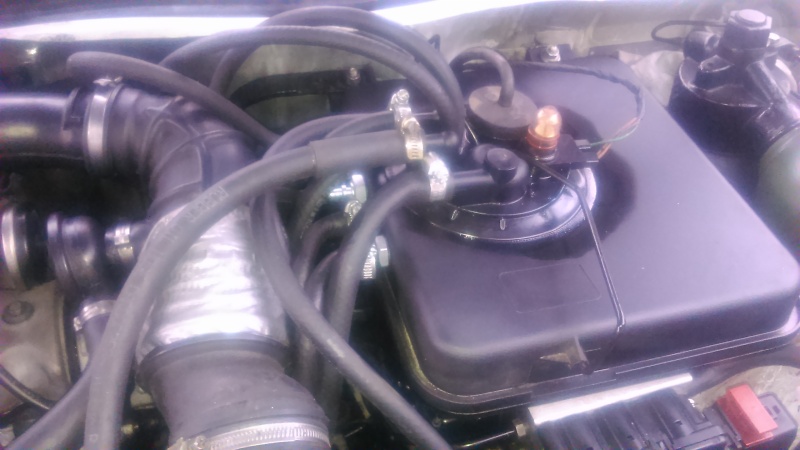

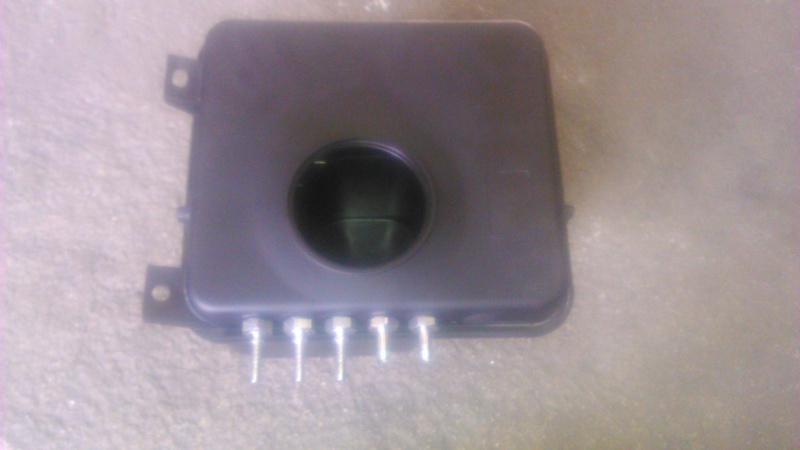

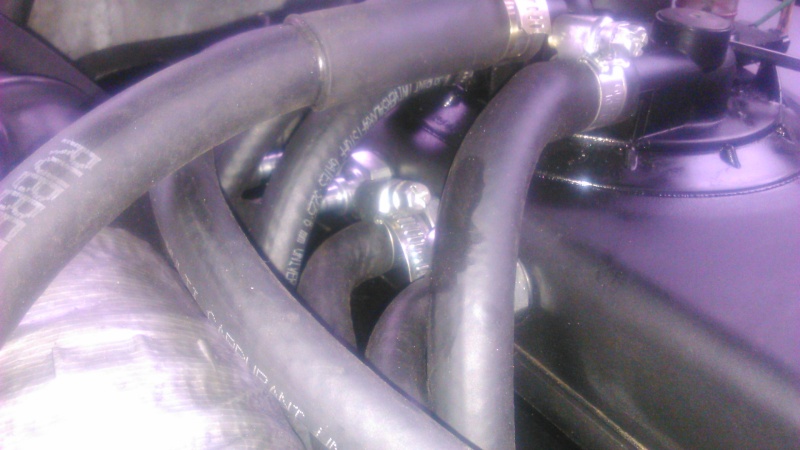

I have been trying to find a good solution for the return hydraulic pipes and now I think I have found it! Instead of making it the same as it was with T-pieces I modified my LHM reservoir so now I don't have any joints between pipes but instead every pipe is individually routed to the reservoir. In case of a leaking pipe it's very easy to change it and you have to disconnect only the pipe that is leaking. I made a slight mistake that the connections are oriented towards the engine (lack of space). The connections should be oriented towards the front of the car as there is much more space.

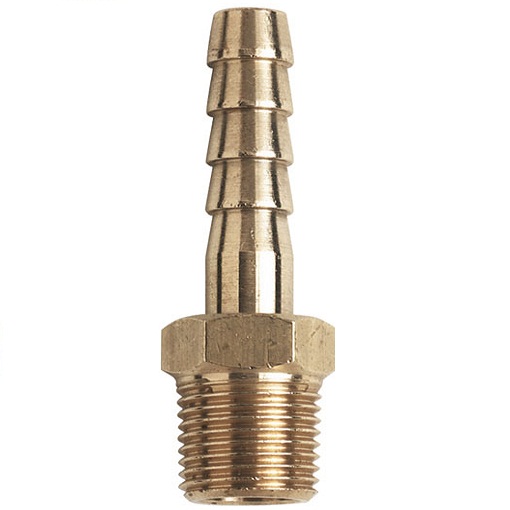

So all you need is a connector with a screw thread, nut, and a seal. Images should say more than words. This could be a sticky mind you! :-D






Xantia Break 1.9TD (jammed b****!)
Xantia Activa 2.0 TCT + LPG (1998) (peeing b****!) RIP
Xantia Activa 2.0 TCT (1998) (burnt b****!)
Xantia Activa 3.0 V6 (1998) (not a b****! yet :-D )
C4 Exclusive 2.0 HDi (gear shifting b****!)
User avatar
CitroJim
A very naughty boy
Posts: 49531
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia octopus solution

Post by CitroJim »

That looks good Xantos =D> :-D
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
xantos
Posts: 409
Joined: 02 Apr 2013, 10:05
Location: Slovenia
My Cars: Xantia 1.9TD Break non-hydractive (1999)
Xantia 3.0 V6 Activa (1998)
C4 2.0 HDi Exclusive Mk2 (2010)
x 10

Re: Xantia octopus solution

Post by xantos »

Thanks Jim!

Well in my opinion that's probably the best and cheapest way to renew the octopus. It would be probably better if connectors to the LHM reservoir would be bent by 90°, so they would face down. The pipes would have much more space and they wouldn't be so bent and not under so much "bent stress". Ahhh my English, hard to say what I'm thinking... :wink:
Xantia Break 1.9TD (jammed b****!)
Xantia Activa 2.0 TCT + LPG (1998) (peeing b****!) RIP
Xantia Activa 2.0 TCT (1998) (burnt b****!)
Xantia Activa 3.0 V6 (1998) (not a b****! yet :-D )
C4 Exclusive 2.0 HDi (gear shifting b****!)
User avatar
Stickyfinger
(Donor 2016)
Posts: 10411
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: Xantia octopus solution

Post by Stickyfinger »

Well that looks very neat,,,,gj

I would think a bracket to support the pipes and take the "strain & vibration" would also have the effect of protecting the tank plastic from splitting.

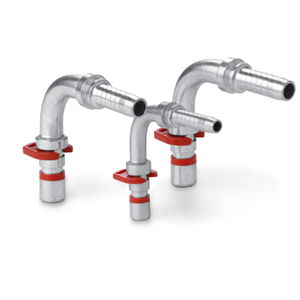

How about these ?
