Xantia wiper problems... "Solved"

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Xantia wiper problems... "Solved"

Post by fridgedoc »

Hi Guys

Sorry have not posted pic's yet been raining and hospital visits, having a small problem with the wipers no intermittent wipe and no wipe when washers used I'm guessing it's a stork problem, any pointers please

Many thanks
Last edited by fridgedoc on 28 Sep 2011, 13:36, edited 2 times in total.
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
User avatar
Chris570
(Donor 2020)
Posts: 1461
Joined: 12 Dec 2009, 14:10
Location:
My Cars:
x 29

Post by Chris570 »

i would think relay at first. as for both not to work there must be 2 switches dead in the stalk as opposed to one dead relay. someone will be along in a bit to say where the relay is, might be worht saying what model of xantia you have
2006 C5 HDi 170
1998 Xantia Activa S1
1971 D Special
2006 C3 1.6 HDi SX,
CitroJim wrote: I'm a pink fairy
A 1/3 of Team WFA 'Clarkson'
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Post by fridgedoc »

Hi chris thanks for your post the model is under my signature, just like yours :)
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
User avatar
Chris570
(Donor 2020)
Posts: 1461
Joined: 12 Dec 2009, 14:10
Location:
My Cars:
x 29

Post by Chris570 »

i knew that 8-)

well i guess that answers the question of year as well :)
2006 C5 HDi 170
1998 Xantia Activa S1
1971 D Special
2006 C3 1.6 HDi SX,
CitroJim wrote: I'm a pink fairy
A 1/3 of Team WFA 'Clarkson'
User avatar
VertVega
Posts: 1178
Joined: 01 Nov 2008, 19:39
Location: Province nordique de l'Union européenne
My Cars:
x 13

Re: Xantia wiper problems

Post by VertVega »

fridgedoc wrote:... no wipe when washers used ...
I had this problem and it was solved by wiper stalk replacement 8-)

Here's my thread, if any help --> Xantia II Windscreen washer problem ** Solved **
It still works fine.
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Post by fridgedoc »

Hi VertVega & thanks for your post

I'm not too sure it's the same problem I have no intermitant wipe and no wipe when washers used single wipe works and normal/fast wipe works will have a look at relay first then stalk
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
User avatar
Old-Guy
Posts: 1798
Joined: 11 Sep 2008, 12:08
Location: Gloucestershire
My Cars: 2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
x 17

Post by Old-Guy »

I have exactly the same problem, and it's not the stalk (tried that).

The same timer/relay does both intermittent and wash/wipe. For 1995 model year onwards, this is relay 12 which is the top one of the two located to the left of the fuses (on a RHD car these are hidden behind a trim panel. This relay has 6 pins - I think it's the only one with that many. I haven't had time yet to find a replacement, so I can't be sure that it's the relay, but the evidence is pretty compelling.
2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - after 11 years now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Post by fridgedoc »

Hi Old-Guy & thanks for your post

sounds feasable to me but I have a LHD so any idea where this relay would be? somewhere near the steering column? will try and find it on my dead Xantia as it was all working OK on it, will let you know how I get on
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
User avatar
Old-Guy
Posts: 1798
Joined: 11 Sep 2008, 12:08
Location: Gloucestershire
My Cars: 2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
x 17

Post by Old-Guy »

Assuming that Citroen only used completely different components for the RHD minority when absolutely necessary, I'd guess that they used the same fuse-bax/relay board for both LHD and RHD though perhaps in a different location. Providing you know where the under-dash fuse board is, I'd expect to find the relay in the same place (top relay to the left of the spare fuses, behind the trim panel. Logically it would be in the mirror-image location, above the driver's left shin. But maybe that's too simple?
2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - after 11 years now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Post by fridgedoc »

Hi Old-Guy & all

Firstly as promised pictures of my Xantia's, the old (blue) and the new , well new to me...don't you just love photobucket !!!!!


The new again


What fun!!!! and you get to see a little bit of France

Now to the serious stuff................

Wiper relays or not!!

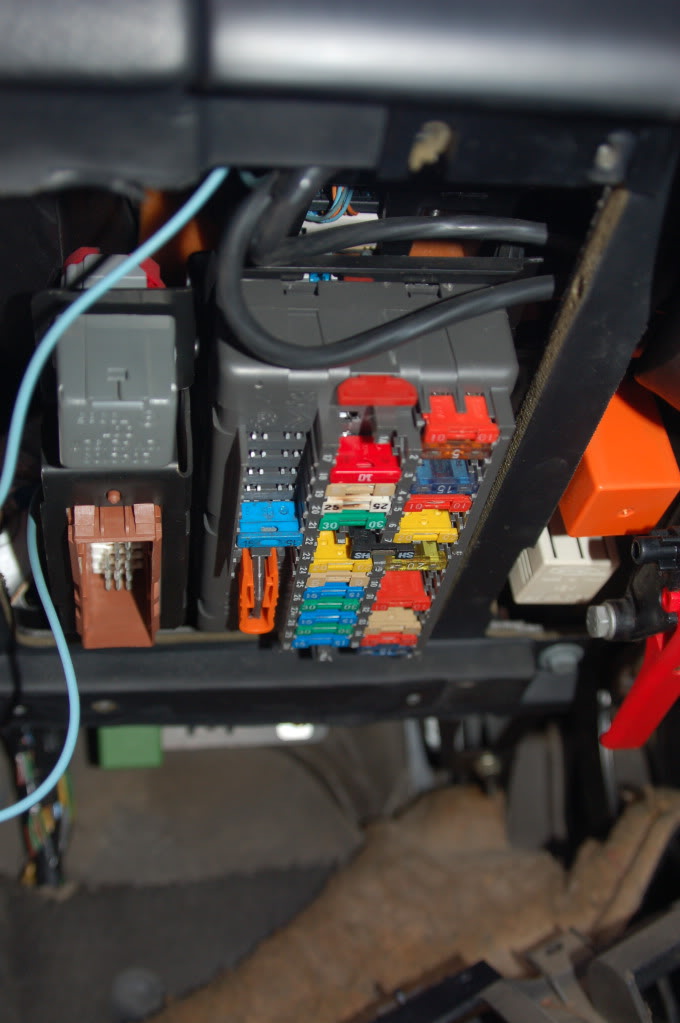

This is under the steering wheel once the plastic covers are removed
the relay top left is the indicator relay there is one underneath left and the two on the right, orange and light grey with what looks like vent holes, I cannot get these buggers out I am afraid I will do some damage is there a special way of getting them out? Is there anyone with a LHD who knows which is which?

As you can see this problem is now solved.
To the right of the green relay bottom left is the screw you can see the silver tag (just) this is the blue (intermitent wipe) relay
Last edited by fridgedoc on 28 Sep 2011, 13:41, edited 2 times in total.
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
Location: NEW South Wales, Australia. I'll show you "Far, far away" ;-)
My Cars: Peugeot 605
Citroën Berlingo
Alfa 147
x 93

Post by addo »

The vented one (as you call it) is a warning beeper for headlights on.
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Post by fridgedoc »

Hi addo & thanks for your post

I think 'its if the light switch is on not just headlights, thank you for pointing it out but

Which one if any of these is the intermitent wipe one?
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Post by fridgedoc »

Hi Guys

got my photos back ......thanks photobucket
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
admiral51
Donor 2023
Posts: 2625
Joined: 24 May 2007, 10:11
Location: poole dorset uk
Lexia Available: Yes
My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff]
x 378

Post by admiral51 »

Im not 100% sure but i believe the relay you are looking for is right up underneath by the bottom green relay and is held in by a bracket that is bolted/screwed into place.
I had a problem with my mk1 which has now in typical Xantia fashion sorted itself but when fault finding on another mk1 with working wash/wipe and intermittent function removing all obvious relays it still worked and only by touch could i feel the relay clicking,not sure how to get at it though :oops:

Colin
fridgedoc
Posts: 165
Joined: 03 Mar 2006, 22:20
Location: Near Poitiers, FRANCE
My Cars:

Post by fridgedoc »

Hi Colin

How right you are, blue relay tucked right up under the metal frame that holds the green relay and all you can see (with a torch) is a screw head, once the screw in removed you need to curl your fingers and push up the relay so the fixation tab clears its slot then carefully tease the relay down so you can remove it from its socket, what a ridiculous place to site it.

Can this be made a sticky, to aid any other poor person with this fault
Bonne Chance

Stephen

LHD Xantia 1994 (deceased)
LHD Xantia 1995 Berline
