non-aircon v6 aux belt

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
citrov6
Posts: 350
Joined: 06 Jul 2009, 19:44
Location: Midlands
My Cars:
x 1

non-aircon v6 aux belt

Post by citrov6 »

My aircon went just before xmas. I say went, but it was still connected to the drive permanently for some reason so the bearings went and it is still whiring away whenever the car is driven so Ive limited that to short journeys.

What I think I need to do short term is switch to a non-aircon belt, that way I can have it de-gassed and drive it without the pump turning. I'm thinking one of the belts from a non-aircon will work for this. Not sure what the roller layout is with non-aircons if this is a workable idea
Love my black v6 xant - only one with cream coloured leather too!
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Post by citroenxm »

Non Air con V6??

In this country, werent they ALL equpit with air con? My guess is, you have to hazzard a guess at the Length of belt and then specify the length needed rather then the application you want..

paul
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Post by CitroJim »

I may be able to help here CitroV6..

I have a V6 engine sitting in my garage at present, minus aircon but otherwise more or less complete. I have a selection of belts as well so I'll see what can be achieved in that direction...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Post by citroenxm »

CitroJim too the rescue................... :lol: :lol:


Hehe

Paul
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
citrov6
Posts: 350
Joined: 06 Jul 2009, 19:44
Location: Midlands
My Cars:
x 1

Post by citrov6 »

Thanks Jim that will help infinitely
Love my black v6 xant - only one with cream coloured leather too!
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Post by CitroJim »

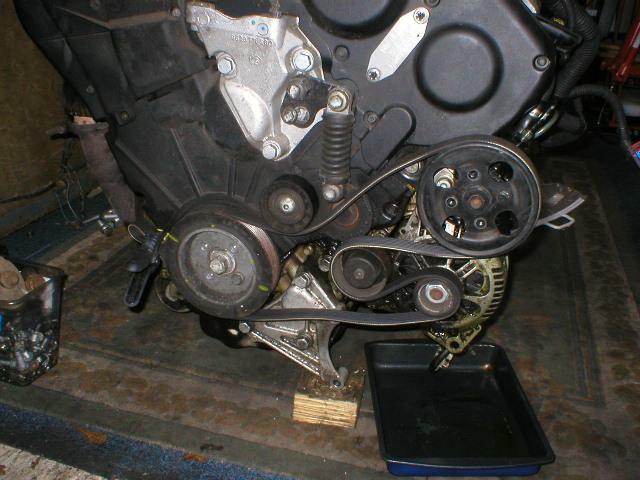

Been out, braved the cold and came up with this:


This shows the routing that should work. The belt shown is too long.

I reckon, using a tape measure in place of the belt, that you'll need a 6PK1420 belt although you may need to experiment with belts around the 1400mm length to find one that fists best and will tension acceptably.

This Dayco catalogue page shows all the 6PK belts available.

Any good factor should be able to supply a 6PK belt by size, alternatively, take a tape measure to your local Halfrauds and measure their selections...

Hope that helps a bit.
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Post by citroenxm »

Wont the Air Con compressor need removing, as the belt will still skim the top of the pully, will it not??

Paul
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Post by CitroJim »

Good point Paul 8)

How about this routing then?

Slightly compromised on alternator drive but should work.


For this route you'll need a 6PK1230 or 6PK1245 belt...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
citrov6
Posts: 350
Joined: 06 Jul 2009, 19:44
Location: Midlands
My Cars:
x 1

Post by citrov6 »

Brilliant :) thanks for doing that I'll go round halfuds tomorrow see what I can find around 1400mm. I take it the designation 6kp1425 means length 1425mm or I suppose that would be far too logical I better take the tape measure
Love my black v6 xant - only one with cream coloured leather too!
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Post by CitroJim »

citrov6 wrote:I take it the designation 6kp1425 means length 1425mm
Yes it does :D For once something entirely logical!!!

the 6PK bit means 6 "peaks" or rows on the belt and the number is the length in mm...

Halfrauds belt part numbers are similar in that the length is in there. They usually number something like HB1130g
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
citrov6
Posts: 350
Joined: 06 Jul 2009, 19:44
Location: Midlands
My Cars:
x 1

Post by citrov6 »

Excellent, that will make it simpler. I'll get around 1230mm tomorrow and see how it works out.
Love my black v6 xant - only one with cream coloured leather too!
citrov6
Posts: 350
Joined: 06 Jul 2009, 19:44
Location: Midlands
My Cars:
x 1

Post by citrov6 »

I did measure the path later that day it was 140mm shorter than the original and cut across between the alt and crank pulley missing the aircon. So I ordered the closest belt a 1472mm and it was a bit tighter than the 1623mm that Jim recommended as standard replacement but has some give, the tensioner compressed quite a bit but it looks like it is working ok
Love my black v6 xant - only one with cream coloured leather too!
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Post by CitroJim »

Excellent Citro, pleased it worked out OK. Which routing did you use?
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
citrov6
Posts: 350
Joined: 06 Jul 2009, 19:44
Location: Midlands
My Cars:
x 1

Post by citrov6 »

the more conventional one,

crank
hydro pump
pulley
alternator
crank

it misses the aircon comfortably almost like they knew when designing it
Love my black v6 xant - only one with cream coloured leather too!
citrov6
Posts: 350
Joined: 06 Jul 2009, 19:44
Location: Midlands
My Cars:
x 1

Post by citrov6 »

Sorry to bring this thread up again.

I'm going to fit the aircon back this weekend hopefully and was wondering if its a 1625mm or 1620mm Dayco belt that was recommended by CitroJim. I can't find the thread where its mentioned.

I think it was a 1625mm and the tensioner was extended quite far to keep its tension but easier to put on than a 1620mm

Then that should be it, spheres, heater blower, drivers window regulator and it should operate like a semi normal car like before :)
Love my black v6 xant - only one with cream coloured leather too!
