Wiring diagram for xenons - 2007 mk1 facelift C5

[Harlequin]

thank you sir.

so , IMO, I need 7715 and 6606 and there's an extra loom runes from PSF1 (9 and 10) to each light and a loom run from the bsi to 7715 (assuming thats the suspension pump) and 6606 is the light ecu.

is 78-- related to tyre sensors (I know it says esp)?

most looks at my unprofessional glance to be very similar; ofc mine doesn't have tyre pressure sensors.

[GiveMeABreak]

Some extra info - Flow Chart for Directional Lighting

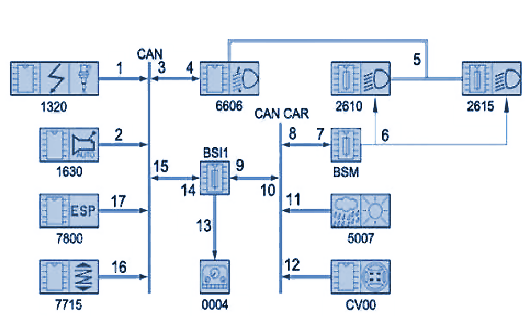

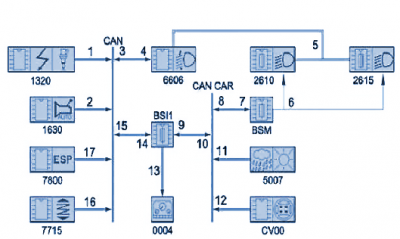

Directional Lighting Flow Chart

Single arrow: Wire connection, Double arrow: LIN connection, Triple arrow: Multiplexed connection

Code	Description
BSI1	Built-In Systems Interface
BSM	Engine Fuse Box
CV00	Switch Module At The Steering Wheel
0004	Instrument Panel
1320	Engine ECU
1630	Automatic Gearbox
2610	Left-Hand Headlamp
2615	Right-Hand Headlamp
5007	Rain/Brightness Dual-Function Sensor
6606	Directional Headlamps ECU
7715	Suspension ECU
7800	ESP ECU

N°	Description	Power consuming equipment	Connections
1	Engine running status	Directional headlamps ECU	CAN
2	Gearbox ratio engaged	Directional headlamps ECU	CAN
3	Status of the dynamic lighting. Status of the automatic height adjustment	BSI1	CAN
4	Engine running status. Gearbox ratio engaged (if automatic gearbox). Reverse engaged (if manual gearbox). Vehicle speed. VEHICLE RIDE HEIGHT. Steering wheel angle sensor information. Status of the lighting controls	Directional headlamps ECU	CAN
5	Supplier’s specific network	Headlamp	LIN
6	Concealing flaps control. Additional halogen main beam headlamps control	Headlamp	All or nothing
7	Request for switching on of the directional headlamps. Main beam/dipped beam headlamps request (concealing flaps)	BSM	Body CAN
8	Directional headlamps fault status	BSI1	Body CAN
9	Main beam headlamps fault status. Information on brightness. Steering wheel angle sensor information. Status of the lighting controls	BSI1	CAN
10	Directional headlamp height adjuster fault. Request for switching on of the directional headlamps. Main beam/dipped beam headlamps request (concealing flaps)	BSM	Body CAN
11	Information on brightness	BSI1	Body CAN
12	Direction of rotation of the steering wheel. Initialisation of the steering wheel angle sensor. Status of the lighting controls	Directional headlamps ECU	Body CAN
13	Light indicator lamps control	Instrument panel	COMFORT CAN
14	Status of the dynamic lighting. Status of the automatic height adjustment. Directional headlamp height adjuster fault	BSI1	CAN
15	Deactivation of the dynamic lighting. Status of the dipped headlamps. Steering wheel angle sensor information. Information on brightness. Status of the lighting controls	Directional headlamps ECU	CAN
16	Vehicle ride height information	Directional headlamps ECU	CAN
17	Vehicle speed	Directional headlamps ECU	CAN

[OlegR]

What's the end of this story?

In my setup, I don't have only the 6606 Directional Headlamps ECU

having experience converting my old '86 BMW from ECU Motronic 1.0 to 1.3 from a '94 7 series, looking at the diagrams it's doable.
Need to wait for the summer and find the missing ecu+connector, and the diagram for my car, and will try it.
