Another C5 X7 SMEG+IV2 Upgrade + Questions

[richardmayer]

Hello,

I started a little project and upgraded the RT6 in my C5 X7 2012 to a SMEG+IV2-Unit.
...
Best Regards
Richard

Hi
@richardmayer, I have a question: Are these buttons connected directly to the Smeg, or did you add any resistors? And which pins on the Quadlock did you plug them into?

Sorry, I did't see the notification about your message.

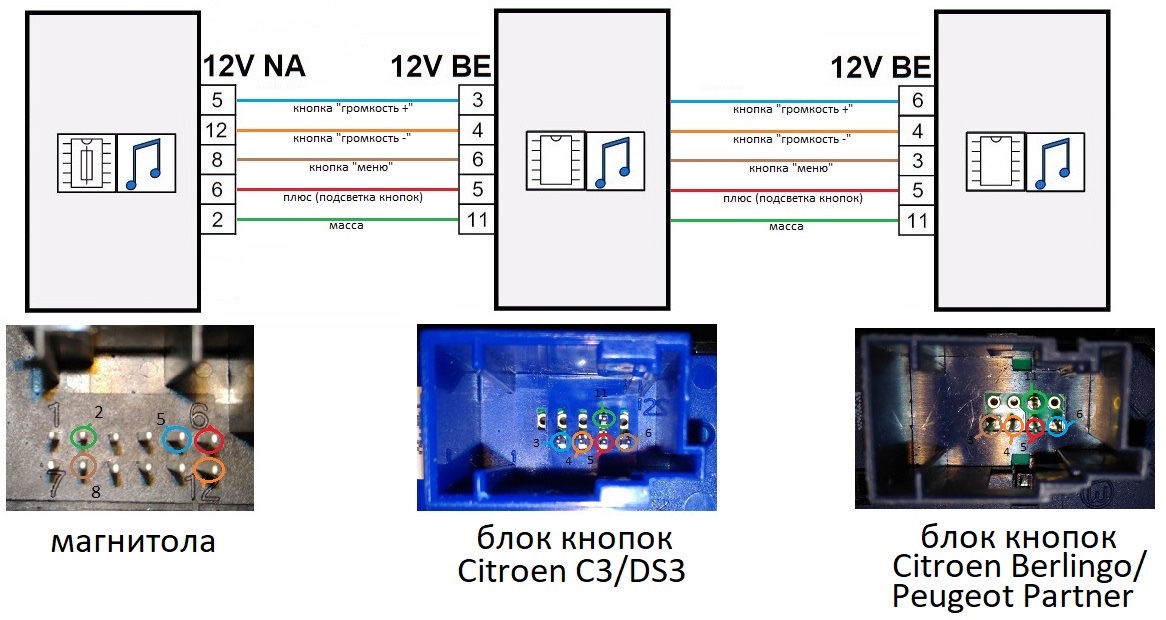

Yes, the Buttons are directly connected to the SMEG. Got the Wiring from a russion forum entry:

But one important detail: The directly wired Buttons only work on a SMEGiV2. I did't get the to work on a regular older SMEG-Device.
Best regards
Richard
