2015 2.0l Peugeot 508 hybrid wont start

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.
90sPoorguy
Posts: 3
Joined: 25 Mar 2026, 09:09

2015 2.0l Peugeot 508 hybrid wont start

Unread post by 90sPoorguy »

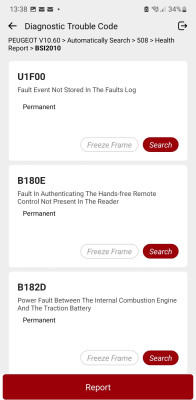

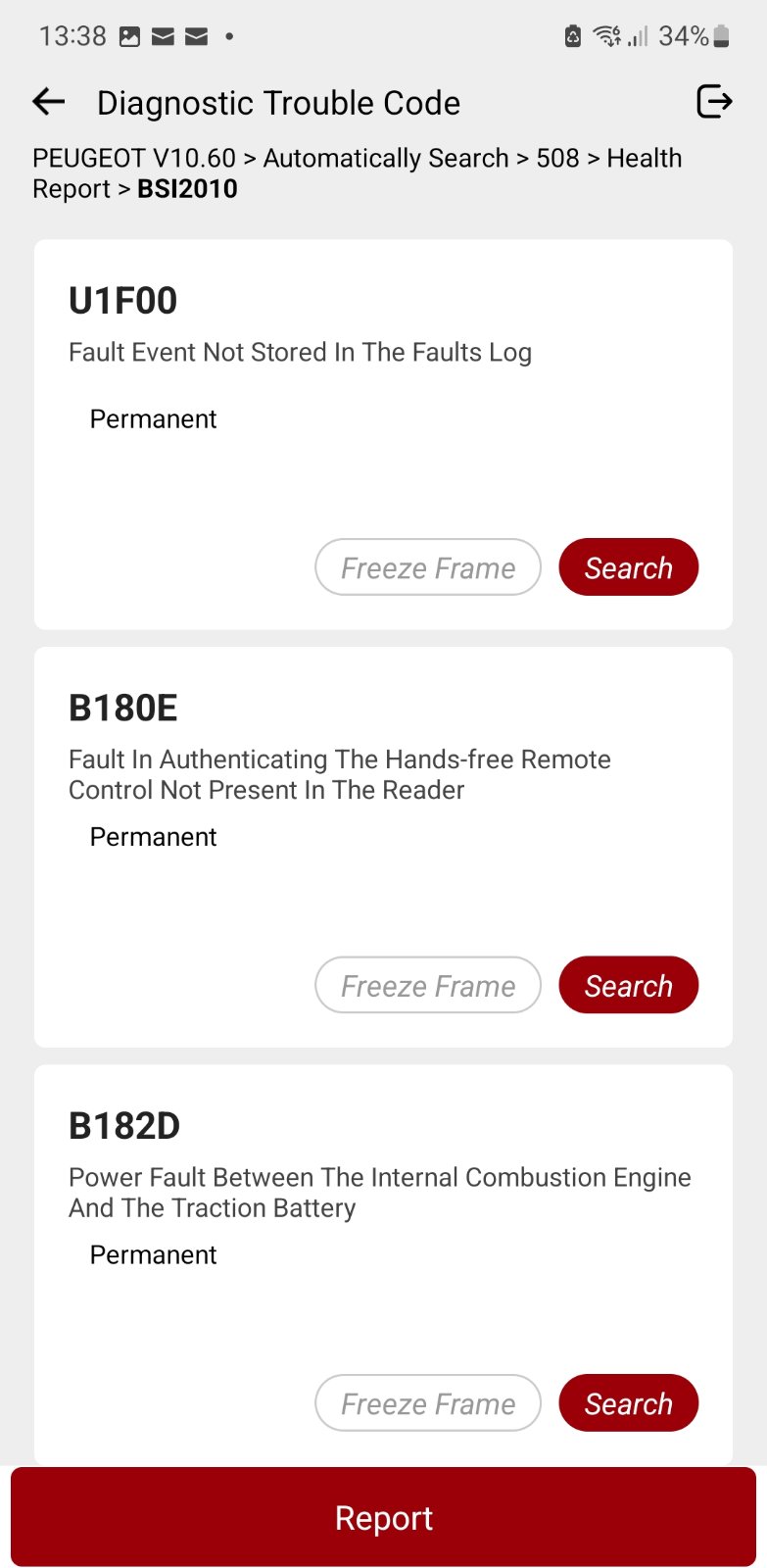

Hi can anyone help me 2.0L Peugeot 2015 508 hybrid ? So my wife started the car in the morning and stop car engine fault popped up in the dashboard, she stopped the car and since then won't start . I checked fuses and I found a 5amp fuse blown on top of the battery on the bpga I belive its called I changed it and notthing . I checked bpga and every thing its fine on it has voltage at the end every fuse has continuiti. the only error I have is B182D power fault between internal combustion engine and the traction battery. I checked traction battery main fuse is good and installed properly so I'm running out of ideas. Ps the B180e is not present anymore
Attachments
User avatar
mickthemaverick
Moderating Team
Posts: 20115
Joined: 11 May 2019, 17:56
x 7777

Re: 2015 2.0l Peugeot 508 hybrid wont start

Unread post by mickthemaverick »

Were you able to see the state of charge of the traction battery? :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
90sPoorguy
Posts: 3
Joined: 25 Mar 2026, 09:09

Re: 2015 2.0l Peugeot 508 hybrid wont start

Unread post by 90sPoorguy »

I don't know, is there a way to check the state of the battery? it won't show on the little screen on the dashbord
90sPoorguy
Posts: 3
Joined: 25 Mar 2026, 09:09

Re: 2015 2.0l Peugeot 508 hybrid wont start

Unread post by 90sPoorguy »

so I saw on the dashboard that the battery dosent have any bars
User avatar
mickthemaverick
Moderating Team
Posts: 20115
Joined: 11 May 2019, 17:56
x 7777

Re: 2015 2.0l Peugeot 508 hybrid wont start

Unread post by mickthemaverick »

That sounds like your traction battery is not being charged by the engine then, in view of the fault code you may have a dodgy connection in that charging circuit. Best investigated by a qualified mechanic as there is a chance of electric shock while working on that system. :)
