Citroen Jumpy II central monochrome display diagram

Unread post by Falka »

Hello.

The subject is a Citroen Jumpy 2007-2016.

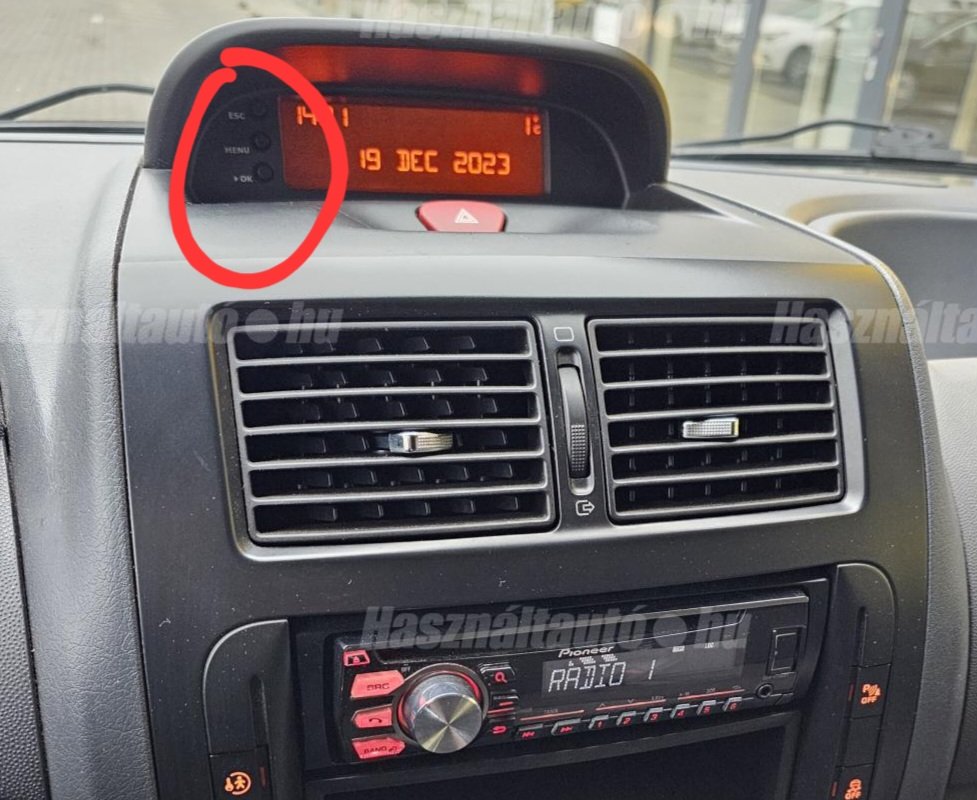

Because it's a van, it was possible do order it without any factory radio, but with the regular small monochrome display. In this scenario, there are 3 buttons beside the lcd to control it. Picture attached.

I would like to retrofit this, but I can't seem to find any oem number for the parts or diagram about its wiring...

If you could be any help with this... 🙇???

UPDATE: I found the wiring diagram for it. Now Im only looking for the lcd frame oem number

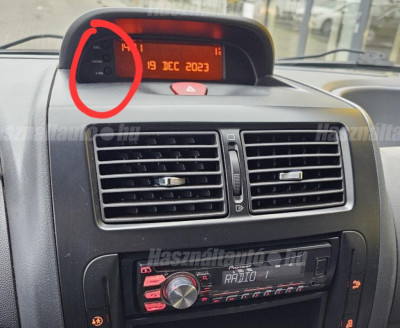

index (1).jpeg
Last edited by Falka on 14 Jan 2024, 11:37, edited 1 time in total.
Top
User avatar
GiveMeABreak
(Donor 2016)
Posts: 42019
Joined: 15 Sep 2015, 19:38
x 6955

Re: Citroen Jumpy II central monochrome display diagram

Unread post by GiveMeABreak »

The diagrams are vehicle and equipment / option specific, so may not be any use from the VIN if it was never fitted.

If you want the part numbers for the display, happy to provide those, but your parts sub has expired Falko :wink:
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
Top
Falka
(Donor 2022)
Posts: 69
Joined: 01 Feb 2020, 20:43
x 5

Re: Citroen Jumpy II central monochrome display diagram

Unread post by Falka »

Ah very true. I will search a bit more then report back 👍
Top
