07 C5 estate tailgate glass won't open

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Kenmac15
(Donor 2022)
Posts: 40
Joined: 02 Jan 2021, 01:09
Location: Didcot
Lexia Available: Yes
My Cars: 2007 Citroen C5 VTR 2.0 HDI Estate
2011 Renault Scenic mk3 1.6dci 130 Bose edition
x 4

07 C5 estate tailgate glass won't open

Post by Kenmac15 »

Hi
As the title say's the switch/solenoid has obviously packed in.
Where is the best place to get a replacement or is the original one repairable ?
cheers
Ken

“I have not failed. I've just found 10,000 ways that won't work.”
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: 07 C5 estate tailgate glass won't open

Post by GiveMeABreak »

Hi Ken

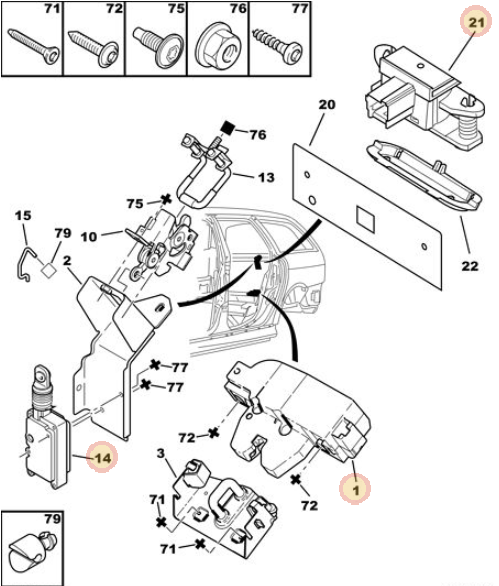

C5 Tailgate Switch.PNG
Have a look at the diagram.

(1) Is the Tailgate Lock, part: 871986, £59.80
(14) Is the Locking Actuator, Part: 661527, £167.90
(21) Is the Rear Tailgate Contactor Switch, Part: 6554F1, £28.28

All are available VAT inclusive from Citroen. Let me know if you need the part for something else on the diagram.
Please Don't PM Me For Technical Help

Marc
Kenmac15
(Donor 2022)
Posts: 40
Joined: 02 Jan 2021, 01:09
Location: Didcot
Lexia Available: Yes
My Cars: 2007 Citroen C5 VTR 2.0 HDI Estate
2011 Renault Scenic mk3 1.6dci 130 Bose edition
x 4

Re: 07 C5 estate tailgate glass won't open

Post by Kenmac15 »

Cheers Mark
Ken

“I have not failed. I've just found 10,000 ways that won't work.”
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: 07 C5 estate tailgate glass won't open

Post by Paul-R »

Why do you think the switch/solenoid has obviously packed in? The Mk1 and Mk2 C5 Estate rear windows were notorious for the wiring failing. I had a struggle finding the fix for this and had to resort to the Wayback machine.

https://web.archive.org/web/20210210234 ... ningc5.pdf
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
