What causes this?
https://flic.kr/p/2neB8qq

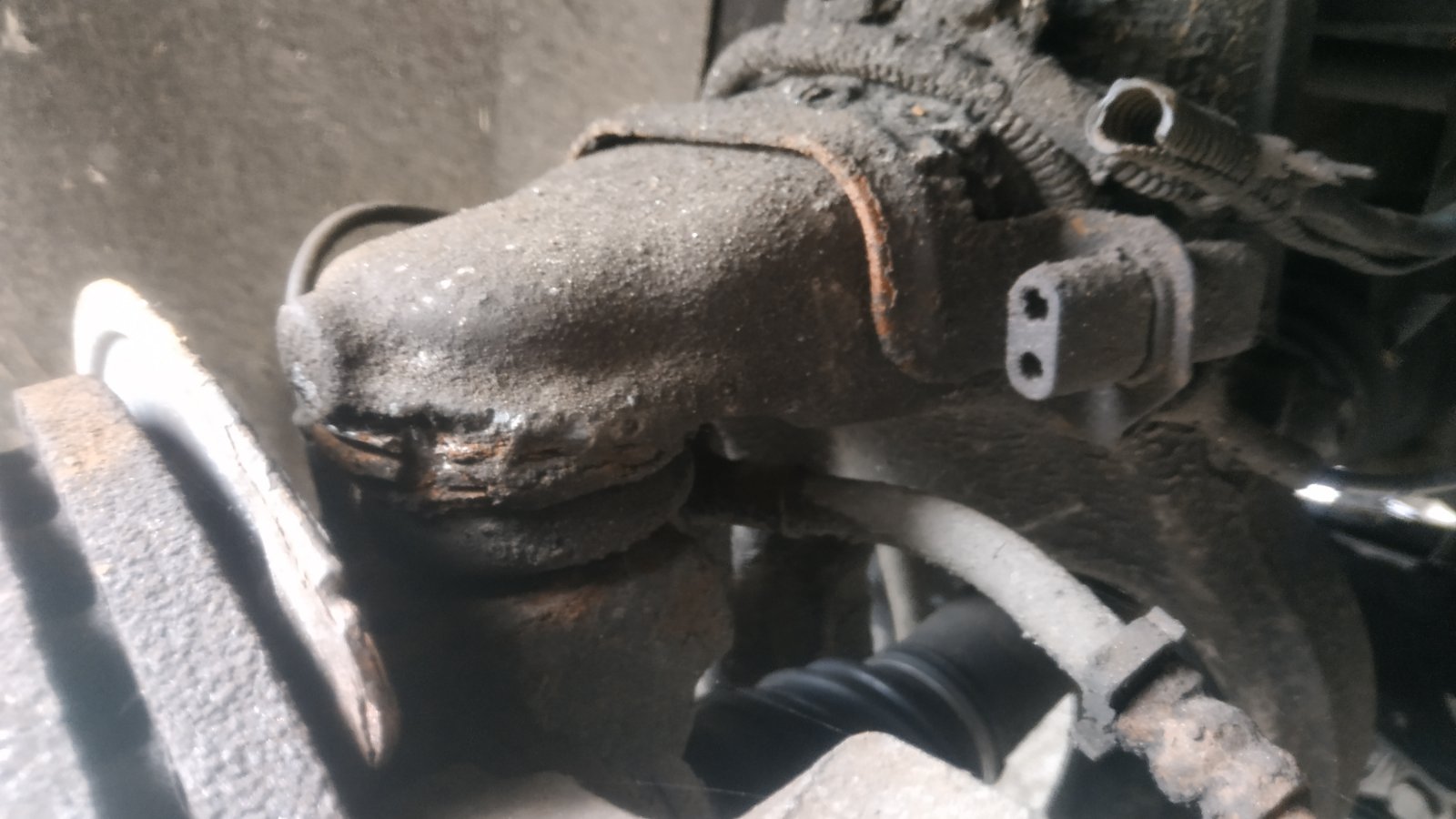

I had the CV boot changed a few weeks ago, didn't drive it since, jacked it up today to change the bushing and saw the leak.
The outside sleeve looks pushed up, is this fixable or is it new strut time?
Also is something bent which could have caused it to push up?
C5 X7 front strut messed up?
Moderator: RichardW
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C5 X7 front strut messed up?
New strut time.
The boots are bonded. It looks like the boot has been caught and ripped off the strut either as a result of damage from the previous work or may be unrelated - hard to say. If the boot has been caught and pulled off, it may have damaged the strut - or the strut has developed a leak and has hastened the boot's departure. These are not repairable and requires a new strut to be fitted.
Some pics of another member's strut:
viewtopic.php?t=62669&hilit=strut
The boots are bonded. It looks like the boot has been caught and ripped off the strut either as a result of damage from the previous work or may be unrelated - hard to say. If the boot has been caught and pulled off, it may have damaged the strut - or the strut has developed a leak and has hastened the boot's departure. These are not repairable and requires a new strut to be fitted.
Some pics of another member's strut:
viewtopic.php?t=62669&hilit=strut
Please Don't PM Me For Technical Help
Marc
Marc
Re: C5 X7 front strut messed up?
Thanks a million for that, now I don't feel that bad, I was annoyed because I thought the guys who did the CV boot messed it up, but if it's possible for it to fail like that, then that's my fault for buying a C5 X7 with badly designed shocks and a bound to fail steering rack.GiveMeABreak wrote: ↑15 Apr 2022, 12:47 New strut time.
The boots are bonded. It looks like the boot has been caught and ripped off the strut either as a result of damage from the previous work or may be unrelated - hard to say. If the boot has been caught and pulled off, it may have damaged the strut - or the strut has developed a leak and has hastened the boot's departure. These are not repairable and requires a new strut to be fitted.
Some pics of another member's strut:
viewtopic.php?t=62669&hilit=strut
why?
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: C5 X7 front strut messed up?
You may be able to get a cheaper one from Poland / Europe, and have the local dealer fit-only. That's what I did, as is was over £120 cheaper to source the genuine part from Europe and that included delivery. The tank needs draining so will need 4-5 bottles of LDS when refilling approximately.
Please Don't PM Me For Technical Help
Marc
Marc
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: C5 X7 front strut messed up?
Eurocarcare in Derby stock them
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Re: C5 X7 front strut messed up?
To de-pressurise the front suspension manually, I need to use the nipple on the driver side strut? The passenger side doesn't have one?
why?
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: C5 X7 front strut messed up?
Yes, it depressurises the front suspension only, fit a plastic pipe over the nipple to catch the fluid as it drains out. I used a 1/4" Deep Socket (10mm I think)to crack the seal and then a spanner to open it a little further.
Have the car supported prior to opening the nipple DON'T go under the car until suspension is in lowest position.
Kenny
Have the car supported prior to opening the nipple DON'T go under the car until suspension is in lowest position.
Kenny
