Alarm Location

Post by Suggy »

My Mk1 308 Sport didn't come with an alarm fitted and I'm looing at fitting one but I need some help with there the various modules are located/fitted in my car.
I tried Sedre backup but the information is missing.
I need to know where the main alarm ecu is located and where the siren is also located. Need to know is the wires are there so I can plug them in.

I think these are what's needed:-
1 ECU
2 Siren
3 Internal movement sensor
4 Button panel above the radio (This is coming with the new stereo)

Any help much appreciated
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Alarm Location

Post by GiveMeABreak »

I don't know any MK I 308s so far that had an alarm fitted, but you have forgotten the Bonnet sensor and the programming as well as the wiring that connects the Alarm ECU to the bonnet sensor, the earths, the BSI via the CAN High and CAN Low networks, the Ultrasonic interior sensors, the interior ultrasonic alarm neutralisation switch and the siren.

I should be able to get you a diagram of a 308 with an alarm, but you'll need to pop your VIN up first.
Please Don't PM Me For Technical Help

Marc
Suggy
(Donor 2022)
Posts: 17
Joined: 10 Aug 2021, 13:06
Location: Wakefield, UK
My Cars: Peugeot 308

Re: Alarm Location

Post by Suggy »

Thanks for the reply
I have Diagbox and PP2000 so programming shouldn't be an issue. I did think off fitting an aftermarket alarm but don't want an extra fob on the key bunch
VIN 55003724

Didn't know if the wiring was already there with the cars wiring loom?
Attachments
wheeler
Posts: 6849
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 718

Re: Alarm Location

Post by wheeler »

You can get aftermarket CAN alarms hat use the existing keyfob, Cobra do them.
Suggy
(Donor 2022)
Posts: 17
Joined: 10 Aug 2021, 13:06
Location: Wakefield, UK
My Cars: Peugeot 308

Re: Alarm Location

Post by Suggy »

wheeler wrote: 23 Apr 2022, 16:25 You can get aftermarket CAN alarms hat use the existing keyfob, Cobra do them.
What do you recommend? without selling a kidney
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Alarm Location

Post by GiveMeABreak »

Suggy wrote: 23 Apr 2022, 16:16 Thanks for the reply
I have Diagbox and PP2000 so programming shouldn't be an issue. I did think off fitting an aftermarket alarm but don't want an extra fob on the key bunch
VIN 55003724

Didn't know if the wiring was already there with the cars wiring loom?
The last 8 (VIS) are not recognised, so have another look, or type it in full (the VIN is automatically masked anyway on post submission).
Please Don't PM Me For Technical Help

Marc
Gibbo2286
(Donor 2020)
Posts: 7172
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Alarm Location

Post by Gibbo2286 »

I'd recommend 'don't do it', after market alarms are notorious for causing battery drain problems as well as being a nuisance to neighbours when they go off for no good reason and fail to work when the thieves come around.
Put sticky labels on the windows saying alarm and tracker fitted, gets the same result without the cost or hassle. :wink:
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
Suggy
(Donor 2022)
Posts: 17
Joined: 10 Aug 2021, 13:06
Location: Wakefield, UK
My Cars: Peugeot 308

Re: Alarm Location

Post by Suggy »

GiveMeABreak wrote: 23 Apr 2022, 16:49
Suggy wrote: 23 Apr 2022, 16:16 Thanks for the reply
I have Diagbox and PP2000 so programming shouldn't be an issue. I did think off fitting an aftermarket alarm but don't want an extra fob on the key bunch
VIN 55003724

Didn't know if the wiring was already there with the cars wiring loom?
The last 8 (VIS) are not recognised, so have another look, or type it in full (the VIN is automatically masked anyway on post submission).
VF3**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Alarm Location

Post by GiveMeABreak »

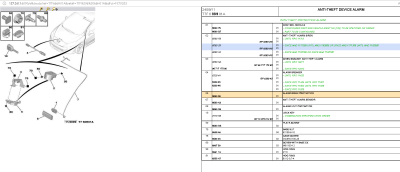

Here you go...
