Role
Main functions:
To receive audible radio broadcast transmissions in amplitude and frequency modulation (AM and FM)
To receive digital audio broadcasting transmissions (DAB: Digital Audio Broadcasting, T-DMB)
To present the list of stations available
To play compact discs (format M4A, M4B, AAC, FLAC, OGG, MP3) via the integral CD player (mono-CD)
To improve the sound quality with "Sound Staging ARKAMYS"
To manage 4 stereophonic audio outputs
To be operated by the controls on the steering wheel
To display information on the remote multifunction display
To read a storage peripheral via the auxiliary socket (*)
To read a storage peripheral via the USB socket (*)
To control the stereophonic audio outputs, superimposed over an audio source (if necessary), for the parking assistance function
To adapt the volume to the vehicle speed
To operate the hands-free kit via Bluetooth (With a telematic unit) (*)
To carry out diagnostics of its own operation and of that of its peripheral devices
To give protection by way of the vehicle’s VIN code
Rear of RT6 Unit
Key
(1) Audio system RT6.
"a" USB socket connector (4 way black connector).
"b" LVDS cable connector (10 way black connector).
"c" 40-way black connector.
"d" Aerial GPS (blue) (*).
"e" Aerial AM/FM1 (white) (*).
"f" Aerial FM2 (grey) (*).
Note (*) According to version.
Detail Key
"c" 40-way black connector:
"ca" 16-way black connector
"cb" 12-way black connector
"cc" Natural 12-way connector
"ca" 16-way black connector (Without HiFi option)
Channel number | Allocation of channels of connector |
1 | Rear right speaker positive control |
2 | Front right speaker positive control |
3 | Front left speaker positive control |
4 | Rear left speaker positive control |
5 | Rear right speaker negative control |
6 | Front right speaker negative control |
7 | Front left speaker negative control |
8 | Rear left speaker negative control |
9 | Colour screen power supply |
10 | Comfort CAN High |
11 | Channel not connected |
12 | Battery + |
13 | Comfort CAN Low |
14 | Channel not connected |
15 | Colour screen earth |
16 | Earth |
"ca" 16-way black connector (With HIFI option)
Channel number | Allocation of channels of connector |
1 | Channel not connected |
2 | Positive control of the front RH output amplifier |
3 | Positive control of the front LH output amplifier |
4 | Channel not connected |
5 | Channel not connected |
6 | Negative control of the front RH output amplifier |
7 | Negative control of the front LH output amplifier |
8 | Channel not connected |
9 | Colour screen power supply |
10 | Comfort CAN High |
11 | Channel not connected |
12 | Service battery positive |
13 | Comfort CAN Low |
14 | Channel not connected |
15 | Colour screen earth |
16 | Earth |
"cb" 12-way black connector (Only with CD changer)
Channel number | Allocation of channels of connector |
1 | CD changer earth (*) |
2 | Comfort CAN Low : CD player(*) |
3 | Permanent supply : CD player (*) |
4 | Right audio system : CD player (*) |
5 | Channel not connected |
6 | Comfort CAN High : Remote control (*) |
7 | Comfort CAN High : CD player(*) |
8 | Audio earth : CD player (*) |
9 | Sound cut-off control (MUTE) (*) |
10 | Left audio system : CD player (*) |
11 | Comfort CAN Low : Remote control (*) |
12 | Channel not connected |
"cc" Natural 12-way connector
Channel number | Allocation of channels of connector |
1 (*) | Video positive input 1 |
2 | Channel not connected |
3 | Microphone negative input |
4 | RH audio signal auxiliary positive input |
5 | LIN bus for screen DG4 |
6 (*) | Video positive input 2 |
7 (*) | Video negative input 1 |
8 | Channel not connected |
9 | Microphone positive input |
10 | LH audio signal auxiliary positive input |
11 | Audio signal auxiliary negative input |
12 (*) | Video negative input 2 |

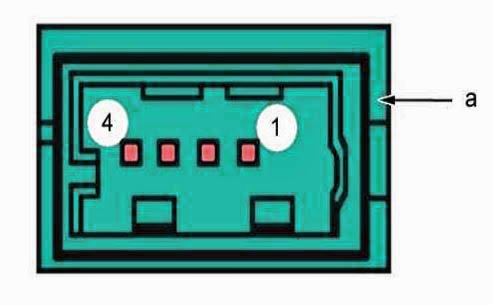

"a" 4-way black connector
Channel number | Allocation of channels of connector |
1 | USB socket supply |
2 | Negative data from the USB socket |
3 | Positive data from the USB socket |
4 | USB socket earth |
"b" 10-way black connector
Channel number | Allocation of channels of connector |
1 | Clock LVDS CLK1 + |
2 | Clock LVDS CLK1 - |
3 | Earth |
4 | Channel LVDS A0 + |
5 | Channel LVDS A0 - |
6 | Channel LVDS A2 + |
7 | Channel LVDS A2 - |
8 | Earth |
9 | Channel LVDS A1 + |
10 | Channel LVDS A1 - |
