Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

@Moizeaux
C4 Petrol
Pete, as per your post in your other thread:

Air Filter
OEM Part: 1444VW, £30.35
OEM Cheaper Alternative, Part: E147177, £8.45

Oil Filter
OEM Part: 1109AL (Purflux), £14.48
OEM Cheaper: E149134, £6.76

Fuel Filter (shown as not fitted for this vehicle)

Pollen Filter
OEM part: 647975, £42.65
OEM Cheaper Alternative, Part: E146177, £
OEM Premium Anti Allergen Filter, Part: 647941, £17.50

Timing Belt Kit

Belt, Water Pump, Timing Tensioner and Retractor Roller

OEM Original Kit Part: 1609525280, £192.07
OEM Cheaper Kit, Part: 1609120680, £135.48

Spark Plugs

OEM Original (Bosch) Part: 5960F3, £12.49
OEM Alternative, Part: 1625935580, £6.00

Coil Pack

OEM Part: 597098, £147.91
Please Don't PM Me For Technical Help

Marc
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Citroen and Peugeot Parts Requests

Post by moizeau »

Thanks Marc.
Could you confirm the aux belt kit please?
1611279280

You've given me numbers for a coil pack. Is this a recommended service item?
Thanks again
Pete
Notice the BX is still top the list but sadly gone
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

Here you go Pete, sorry I missed of the Alternator parts you wanted.
Pete alternator kit.JPG
Alternator Tensioner Roller (6) Part: 1611425380, £122.22
OEM Drive Belt (20) Part: 5750 XG, £32.80
Alternative Approved Cheaper Belt, Part: 1612162780, £13.94

As for 1611279280 - No such part listed for this vehicle.
Please Don't PM Me For Technical Help

Marc
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Citroen and Peugeot Parts Requests

Post by moizeau »

Thanks Marc, much appreciated
Pete
Notice the BX is still top the list but sadly gone
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: Citroen and Peugeot Parts Requests

Post by mickthemaverick »

Marc, could you please confirm which type of eolys system, bag or tank, and fluid I need for my C4 Picasso on maintenance fleet. The VIN is VF7**************[VIN obfuscated, can be read by forum staff] which I believe you already have?
Cheers
Mick
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

You have a tank reservoir variant, so no pouch Mick.

With a build date of 12495, that means you need Powerflex Additive.

Incidentally Mick - are you aware there is still a recall (aftermarket campaign) outstanding on this vehicle?

If not, give Citroen a ring and get it booked in. I can't tell you what it's for, but it will be F.O.C.
Please Don't PM Me For Technical Help

Marc
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: Citroen and Peugeot Parts Requests

Post by mickthemaverick »

GiveMeABreak wrote: 14 Feb 2022, 16:50 You have a tank reservoir variant, so no pouch Mick.

With a build date of 12495, that means you need Powerflex Additive.

Incidentally Mick - are you aware there is still a recall (aftermarket campaign) outstanding on this vehicle?

If not, give Citroen a ring and get it booked in. I can't tell you what it's for, but it will be F.O.C.
Thanks Marc, Yes you told me about the recall and it turns out to be something to do with the timing belt!! It is booked in with Robins & Day for this Thursday and I may well get them to do the EOLYS top up at the same time as I'm not really up to under car work yet!! Thanks again. :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

Ok, best of luck with it and to be honest they shouldn't charge much for this as it's a gravity feed fill and an engine ECU additive reset.
Please Don't PM Me For Technical Help

Marc
thesk3
Posts: 5
Joined: 04 Feb 2022, 11:16
Location: Denmark
My Cars: Citroën C5 2002 1,8i Petrol (Gasoline) Motorcode: EW7 J4
(6FZ)

Re: Citroen and Peugeot Parts Requests

Post by thesk3 »

Hi
I'm i need of some part numbers, and names for my Citroën C5 1.8i Petrol 2002 mk1.
underneath pics of the parts i need info on. i really hope you can help me with this :)

Thx in advance for any help and tip you can give me :)

1:
Left is the height sensor for the rear suspension as you kan see the bracket that it's mounted on is fairly rusted and needs to be replaced. do you know the name and part number for that bracket? for a better view
look at pic 5 and 6.
middle ring is somekind of tri splitter for the hydraulic suspension system, do you know the actual name of it? then to the far right is there somekind of holder/bracket for the tube, do you know the name of that?

2:
2 .jpg
in the red circle is (i think it's called) the anchor plate is that correct? do you know the parts number for that? the thing in the middle green circle what's that?

3:
in the middle red ring is the gas pressure thing, i can't recall the name, i think they're i bit easier to get? and in the top there's somekind og holder/bracket for the rear bridge, look at pic 4.

4:
it's pretty rusted, maybe needs replacing, do you know the name for this thing?

5:
all in these colored rings needs to be replaced, do you know what the correct designated names for them are? for a closer view look at pic 6.

6:
7:
this thing is a bracket that holds the rubber thing that holds the exaust pipe.

8:
this the connection between the exaust manifold and the flex tube that connect to the catalytic converter. how would you say the welding here? i didn't do it as i don't know how to weld. for a closer view look at pic 9.

9:

10:
what is this thing?
jac
(Donor 2021)
Posts: 7
Joined: 10 Feb 2021, 10:06
Location: Leeds, UK.
My Cars: C4 Picasso MK II 1.6 BlueHDi Exclusive

Re: Citroen and Peugeot Parts Requests

Post by jac »

Hello,

Please could you tell me if there is a unique part number for the wing mirror cap piece? (Plastic trim that clips over the eletronics etc of the wing mirror)

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

This is the sticker on the inside of it, near side.
WhatsApp Image 2022-02-16 at 09.20.21.jpeg
Thanks!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

thesk3 wrote: 16 Feb 2022, 10:55 Hi
I'm i need of some part numbers, and names for my Citroën C5 1.8i Petrol 2002 mk1.
Please see the first post in this thread.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

jac wrote: 16 Feb 2022, 14:46 Hello,

Please could you tell me if there is a unique part number for the wing mirror cap piece? (Plastic trim that clips over the eletronics etc of the wing mirror)
Here you go:

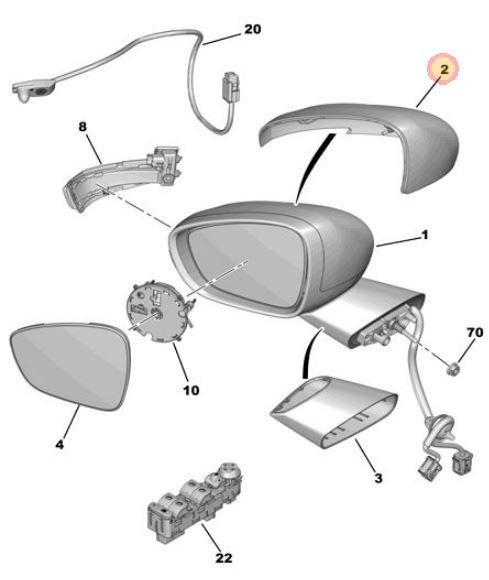

Door Mirror Caps.JPG
Item (2)
Left: 1609431380 £53.51
Right: 1609431480 £53.51

All prices inclusive of UK VAT @ 20% as of today, direct from Citroen.

Note: These are supplied unpainted, so if ordering them, make sure you use some latex gloves before handling to reduce oil / grease contamination prior to priming and painting.
Please Don't PM Me For Technical Help

Marc
User avatar
quintet
Donor 2023
Posts: 311
Joined: 14 Apr 2010, 21:51
Location: northwest
My Cars: 2.0 hdi Peugeot 307
x 41

Re: Citroen and Peugeot Parts Requests

Post by quintet »

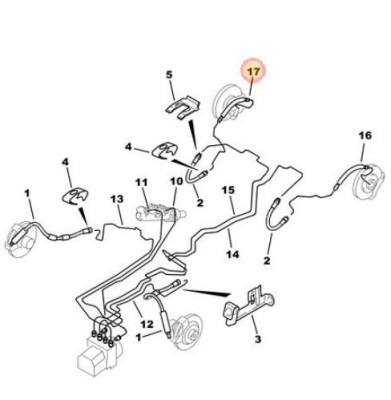

Hi Marc, when you get the time could you please obtain the part numbers for the following;

osr lucas brake caliper and the brake pipe thats directly connected to it, thank you.

VF3**************[VIN obfuscated, can be read by forum staff]
Music keeps me going.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

@Quintet:

No worries
Quintet Caliper.JPG
Rear Right Caliper (TRW Lucas)
OEM New Original Caliper, Part: 4400N5, £259.28
Exchange Caliper Part: 1638156180, £138.38

Rear Caliper Pipe
Quintet Caliper Pipe.JPG
OEM Pipe, Part: 4886Z7, £22.64
Cheaper Hose Option, Part: 1680022480, £26.06

(Note, the OEM hose is listed as slightly cheaper than the cheaper alternative!)

All priced as of today inc. VAT direct from Peugeot.
Please Don't PM Me For Technical Help

Marc
c.morewood
Donor 2023
Posts: 1041
Joined: 05 Nov 2004, 14:38
Location: Kemnay, Nr Aberdeen, United Kingdom
My Cars: '00 Xantia 110 bhp Hdi SX Estate 65K "W"
'99 Xantia 110 bhp Hdi SX Estate 310K SORN "V"
'98 Xantia 1.9TD SX Estate 150K Sold "T"
x 47

Re: Citroen and Peugeot Parts Requests

Post by c.morewood »

Citroen C3 Symphony 2008 1.3Hdi
Hi looking for the gearbox bracket part no. and diagram. Its the one which carries the gear cables has 2 bolts and is located next to the starter motor ( starter motor in foreground in photo)
I've inherited this car and the bracket has broken and is held together by a cable tie. Also part no and diagram for the suspension top bearing as that appears to have seized as well.


Chris
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K

'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
Post Reply
