C5 x7 suspension problem following MOT
Moderator: RichardW
-
- (Donor 2020)
- Posts: 27
- Joined: 22 May 2019, 22:39
- Location: Glasgow
- My Cars: 2010 C5 Exclusive V6
2012 C1 - x 2
C5 x7 suspension problem following MOT
Following my MOT yesterday (where presumably they had 2 or more wheels off the ground) my suspension has a problem.
I know there have been some discussions on here but this one is slightly different.
The rear suspension is acting normally, but when raising from low to any other setting, the front goes fully to high and the pump keeps running for a while.
dropping from high, the rear drops normally to whatever height is set but the front stays high until low is selected.
Since it's affecting only the front, is it more likely to be something physical (ride height sensor linkage or connection to it that has been disturbed or something calibration-wise that I can sort out with diagbox?
Thanks, Stu.
I know there have been some discussions on here but this one is slightly different.
The rear suspension is acting normally, but when raising from low to any other setting, the front goes fully to high and the pump keeps running for a while.
dropping from high, the rear drops normally to whatever height is set but the front stays high until low is selected.
Since it's affecting only the front, is it more likely to be something physical (ride height sensor linkage or connection to it that has been disturbed or something calibration-wise that I can sort out with diagbox?
Thanks, Stu.
- GiveMeABreak
- Forum Admin Team
- Posts: 37411
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 x7 suspension problem following MOT
I wouldn't change anything with Diagbox - that is only for fine tuning the heights. I'd advise against changing anything there because the values entered are only after the height setting / calculations are done and the resulting values are entered in which are converted to other values internally by Digbox so the values are not physical measurement.
I don't have your VIN Stu, but regardless if you have a V6 engine the height correctors are completely different to the 4 cylinder engines.
On V6 models there is a Wheel height sensor on each wheel and not on the axles. So I suspect they may have disturbed it or worse if they didn't know what it was....
I'd check out the fronts and carefully compare position just to see if you can find anything obvious, then try some silicon oil (not WD40) on the linkages to see if that helps. Also check the electrical connectors - as these may be loose.
I don't have your VIN Stu, but regardless if you have a V6 engine the height correctors are completely different to the 4 cylinder engines.
On V6 models there is a Wheel height sensor on each wheel and not on the axles. So I suspect they may have disturbed it or worse if they didn't know what it was....

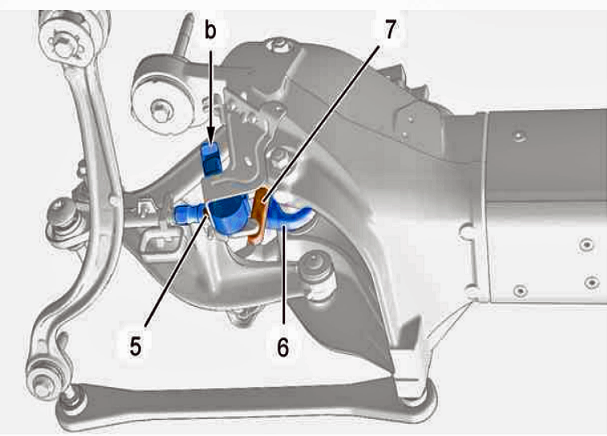

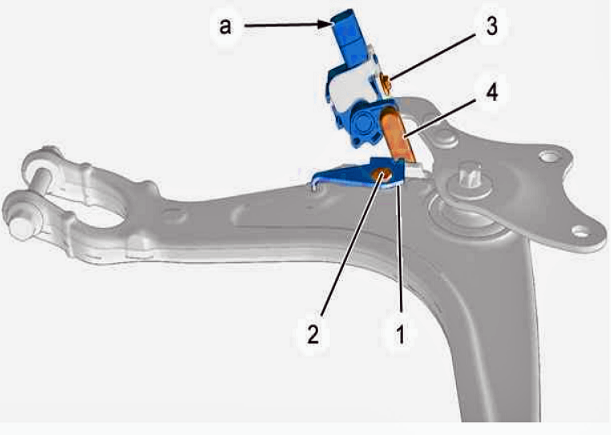

X7 V6 Front Wheel Sensor Location | X7 V6 Rear Wheel Sensor Locations |
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 27
- Joined: 22 May 2019, 22:39
- Location: Glasgow
- My Cars: 2010 C5 Exclusive V6
2012 C1 - x 2
Re: C5 x7 suspension problem following MOT
Thanks Marc, It's getting dark here now so I'll take a look tomorrow when I can see a bit more.
-
- (Donor 2020)
- Posts: 27
- Joined: 22 May 2019, 22:39
- Location: Glasgow
- My Cars: 2010 C5 Exclusive V6
2012 C1 - x 2
Re: C5 x7 suspension problem following MOT
Dark or not it was bugging me so went out in the rain with a torch and crawled under it anyway. Found the right hand linkage (4) disconnected at the sensor end so popped it back on and all is working. Seemed a bit of a loose fit so will take a closer look tomorrow but for now I am a happy bunny.
Thanks Marc.
Thanks Marc.
- GiveMeABreak
- Forum Admin Team
- Posts: 37411
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 x7 suspension problem following MOT
No worries - sounds like a bit of OCD like me - can't leave it!
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 27
- Joined: 22 May 2019, 22:39
- Location: Glasgow
- My Cars: 2010 C5 Exclusive V6
2012 C1 - x 2
Re: C5 x7 suspension problem following MOT
Definitely loose and corroded. Do you happen to have a part number for 4? Might grab another one.
- GiveMeABreak
- Forum Admin Team
- Posts: 37411
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 x7 suspension problem following MOT
Sure, I'll need your VIN Stu (automatically masked from public view once post is submitted) to ensure correct parts and cost.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 27
- Joined: 22 May 2019, 22:39
- Location: Glasgow
- My Cars: 2010 C5 Exclusive V6
2012 C1 - x 2
Re: C5 x7 suspension problem following MOT
VF7**************[VIN obfuscated, can be read by forum staff]
- GiveMeABreak
- Forum Admin Team
- Posts: 37411
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 x7 suspension problem following MOT
Ok here you go:

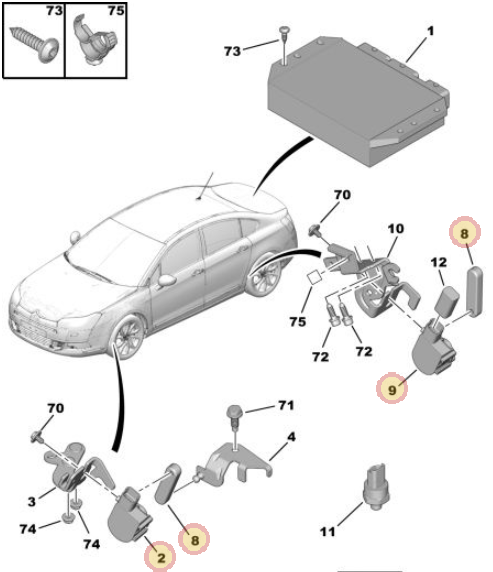

Item (2) Front Body Height Sensors
Front Left (Red Identification) 5273J7 £73.34
Front Right (Yellow Identification) 5273J8 £73.34
Item (9) Rear Body Height Sensors
Rear Left (Blue Identification) 5273J5 £76.12
Rear Right (Green Identification) 5273J6 £76.12
The angular Pick up in case you need it (8) is the same for front and rear 527381 £6.65 each.
All prices direct from Citroen as of today and include UK VAT.
A word of caution Stu. If replacing these yourself, it goes without saying to support the car independently, as any change to a height sensor can cause the vehicle to drop hard and fast without warning and will crush you.
Also, the sensor support brackets shouldn't need top be moved, which is essential to maintain the correct position. If these are moved, be sure to mark the exact position / angle so they can be replaced in the exact position.
I'll put a guide together for replacing these and will update this post with the link for you.
Item (2) Front Body Height Sensors
Front Left (Red Identification) 5273J7 £73.34
Front Right (Yellow Identification) 5273J8 £73.34
Item (9) Rear Body Height Sensors
Rear Left (Blue Identification) 5273J5 £76.12
Rear Right (Green Identification) 5273J6 £76.12
The angular Pick up in case you need it (8) is the same for front and rear 527381 £6.65 each.
All prices direct from Citroen as of today and include UK VAT.
A word of caution Stu. If replacing these yourself, it goes without saying to support the car independently, as any change to a height sensor can cause the vehicle to drop hard and fast without warning and will crush you.
Also, the sensor support brackets shouldn't need top be moved, which is essential to maintain the correct position. If these are moved, be sure to mark the exact position / angle so they can be replaced in the exact position.
I'll put a guide together for replacing these and will update this post with the link for you.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 27
- Joined: 22 May 2019, 22:39
- Location: Glasgow
- My Cars: 2010 C5 Exclusive V6
2012 C1 - x 2
Re: C5 x7 suspension problem following MOT
Seems to be just the link (no 8 above) fortunately so shouldn't need to do much. I'll do it next week when I have the wheel off for my lower hub bush & ball replacement.
Thanks.
Thanks.
- GiveMeABreak
- Forum Admin Team
- Posts: 37411
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 x7 suspension problem following MOT
Ok, as promised, here's the procedure for removing / refitting them:
C5 X7 V6 Engine Suspension Height Corrector Wheel Sensor Replacement
C5 X7 V6 Engine Suspension Height Corrector Wheel Sensor Replacement
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 490
- Joined: 05 Feb 2012, 15:51
- Location: Finland
- My Cars: Now:
C5 X7 HDi 240 Exclusive Tourer
ZOE 22kwh Intense
Before:
C4 1,6 Coupe Automatic
C5 X7 HDi136 Exclusive Sedan A
Xantia HDi110 Berline
Xantia 1,8SX Berline - x 28
Re: C5 x7 suspension problem following MOT
I had similar problem in the winter after hitting some icy lump in the parking lot at my workplace. Height sensor got bent into wrong position, and after that front functioned just like that. After bending height corrector back to the right position, everything was fine again.
- Gregor
- Posts: 101
- Joined: 06 Jan 2021, 17:41
- Location: Celje Slovenia
- My Cars: Actual fleet:
- C5 III tourer 2.0 HDI RHF (103kW 2010)
- P208 XY 1.6 THP (115kW 2013)
- GSX-R 750 (110 kW 2008)
Past members:
Xsara 2.0 VTS (2001)
P206 1.4 XS (1999)
AX 1.1 (1991)
R 5 GT-turbo (1988)
Visa 11 RE (1984)
GS 1.3 Super (1979)
R 12 TL (1975)
Zastava 750 (1968) - x 14
Re: C5 x7 suspension problem following MOT
I hope you are not getting under the car while dealing with height sensors!
Driving Citroen is a diagnose!
