Citroen c3 Picasso rear window blinds
HI, new to the forum. I’m looking to see if anyone knows an easy way to get the rear window blinds off? I had a look and it looked like you have to strip the window rubber off.
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Citroen c3 Picasso rear window blinds
Hi and welcome to the Forum.
No, but there is a technique to removing them.
I'll dig something out if you can check back in 20 minutes or so....
No, but there is a technique to removing them.
I'll dig something out if you can check back in 20 minutes or so....
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Citroen c3 Picasso rear window blinds
Here you go:
You'll need some trim removal tools.
Open the rear door and lower the glass to lowest position.
You'll need some trim removal tools.
Open the rear door and lower the glass to lowest position.
Unroll the sun blind (1) (Maximum). N.B.: Do not attach the sun blind (1) to the hook (2). | Position - Hold: The sun blind (1) (as "a"). |

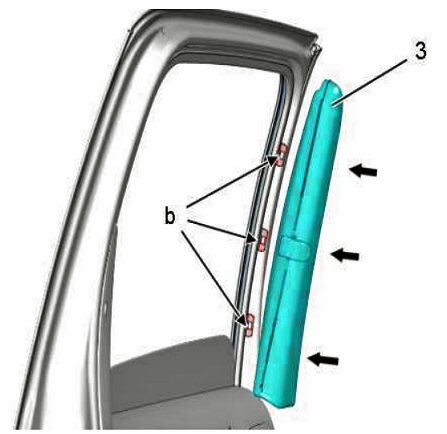

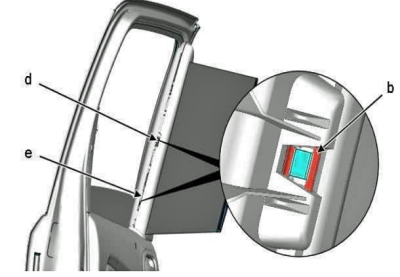

CAUTION: Respect the order of removal. Undo the metal fastener (at "b") by pressing on the plastic clip (as "c") using trim tools. N.B.: Two operators are necessary. | CAUTION: Respect the order of removal. Proceed in the same way for the clips ( as "d", "e"). N.B.: Two operators are necessary. |

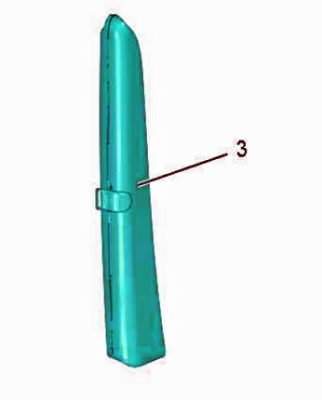

Remove: The sun blind cassette (3). | Refitting: Position: The sun blind cassette (3). Clip: The sun blind cassette (3) (as "b") (In the direction of the arrow ). Check all the equipment works. |
Please Don't PM Me For Technical Help
Marc
Marc
Re: Citroen c3 Picasso rear window blinds
That’s great thanks. Thank you
