BSM Connector removal

Post by adrian0011 »

Hi,

I am working on the replacement of the BSM of my beautiful Citroen C5 from 2005 (type BSM 6500CK).

I have difficulties removing the central connector. Could someone help me please? How can I remove it?

Many thanks!
Attachments

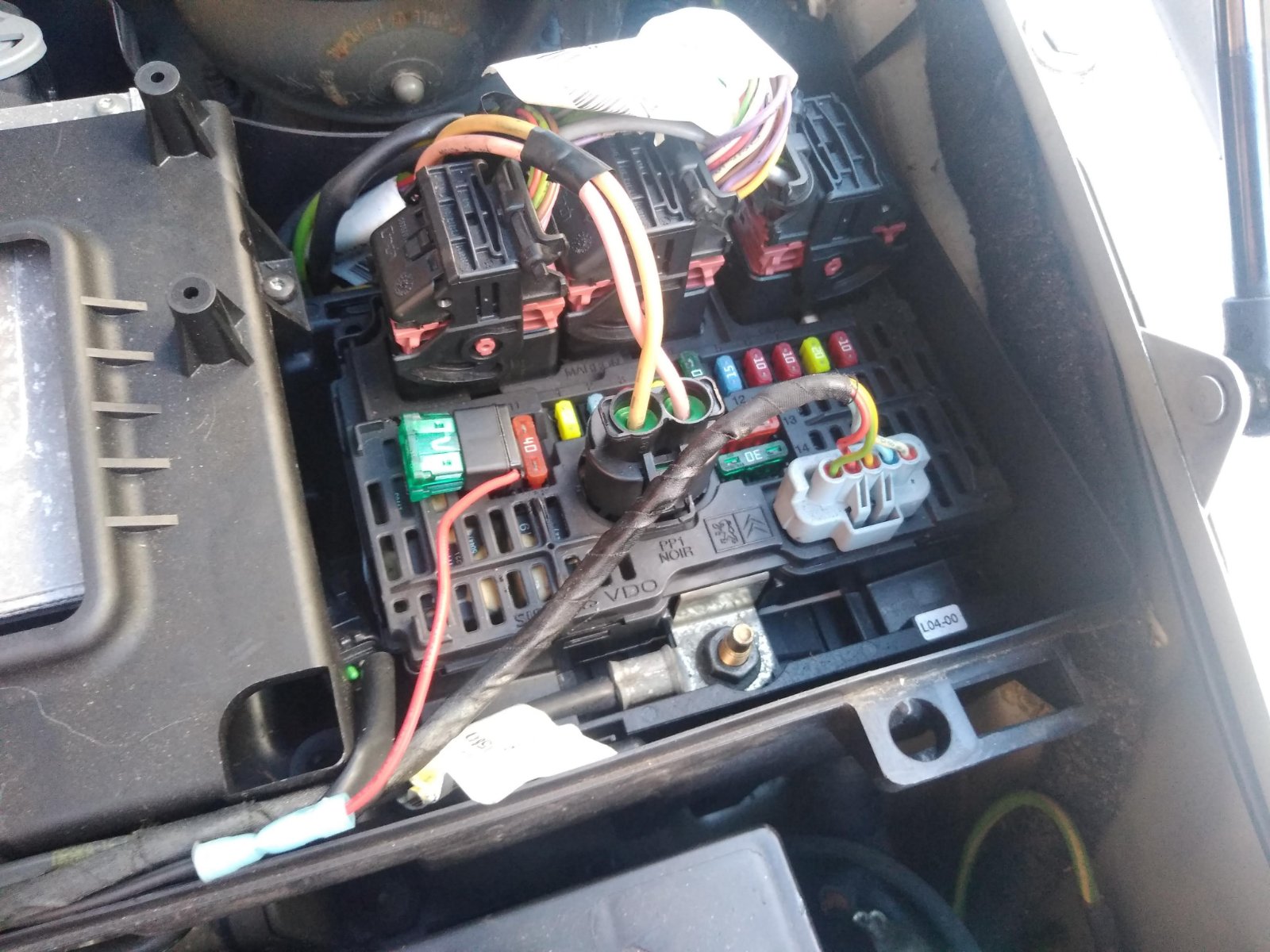

BSM 6500CK
BSM 6500CK
BSM 6500CK
BSM 6500CK
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: BSM Connector removal

Post by wheeler »

Theres a little plastic tab on the connector that you use a small screwdriver or similar to pull back in the opposite direction to your arrow whilst you pull the connector out. It very straightforward.
User avatar
adrian0011
Posts: 4
Joined: 06 Nov 2021, 18:36
Location: The Hague
My Cars: Citroen C5II 3-2005
x 1

Re: BSM Connector removal

Post by adrian0011 »

Well, this will do. Many many thanks wheeler!!
User avatar
adrian0011
Posts: 4
Joined: 06 Nov 2021, 18:36
Location: The Hague
My Cars: Citroen C5II 3-2005
x 1

Re: BSM Connector removal

Post by adrian0011 »

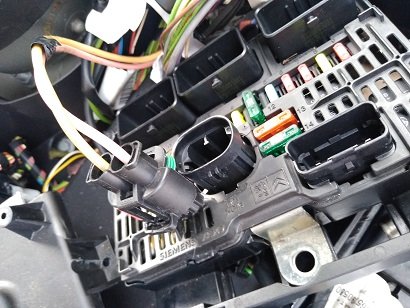

connector loose1
connector loose1
connector loose2
connector loose2
