2007 c4 grand picasso 1.8 petrol manual

[wirralalan]

how easy is it to change a flexi exhaust pipe on a 2007 1.8 petrol c4 grand piccaso

[GiveMeABreak]

Certain tools are recommended for removing and refitting of the exhaust clams and regarding the flexible front hose, caution is needed as per the guidance:

• The exhaust line must never be suspended, without support, from the hose.
• The flexible hose must be protected against any mechanical damage from the exterior.
• The flexible hose must not come into contact with corrosive products.

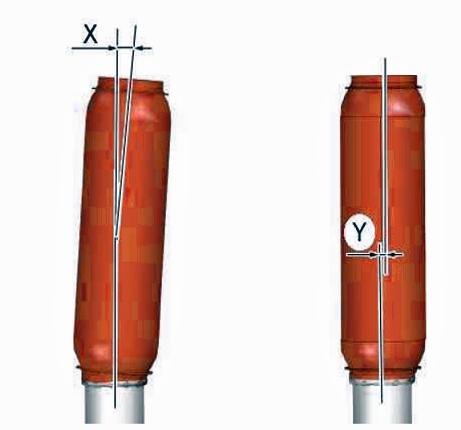

• Do not deform the front hose by more than 20° angular ("X"), 20 mm axial and 25 mm torsion ("Y").
• The front hose cannot withstand any deformation ("X" and "Y") when it is in place.

Removing:

Remove:

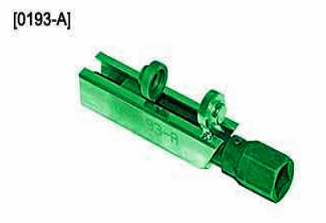

• The collars (7) and (5) using tools [0193-A] and [0193-B]
• The exhaust front flexible pipe (8)

[wirralalan]

thanks
