It's probably perfectly simple but the handbook is not helpful.
I don't want to damage the interior boot panels (X7 tourer)
Any ideas please??
c5 x7 tourer stoplight bulb replacement
Moderator: RichardW
- mickthemaverick
- Donor 2024
- Posts: 13647
- Joined: 11 May 2019, 17:56
- Location: Hertford
- My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3 - x 6058
Re: c5 x7 tourer stoplight bulb replacement
I realise that you have the tourer Roger but I should imagine it is similar, as my MK1 Tourer was similar to my Mk1 hatchback, so this video may help!
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
I used to ride on two wheels, but now I need all four!
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Re: c5 x7 tourer stoplight bulb replacement
If it is similar to the C5 X7 hatch back i can take some pictures of the interior boot panels give me a couple of mins and i will post them up
Colin
Colin
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Re: c5 x7 tourer stoplight bulb replacement

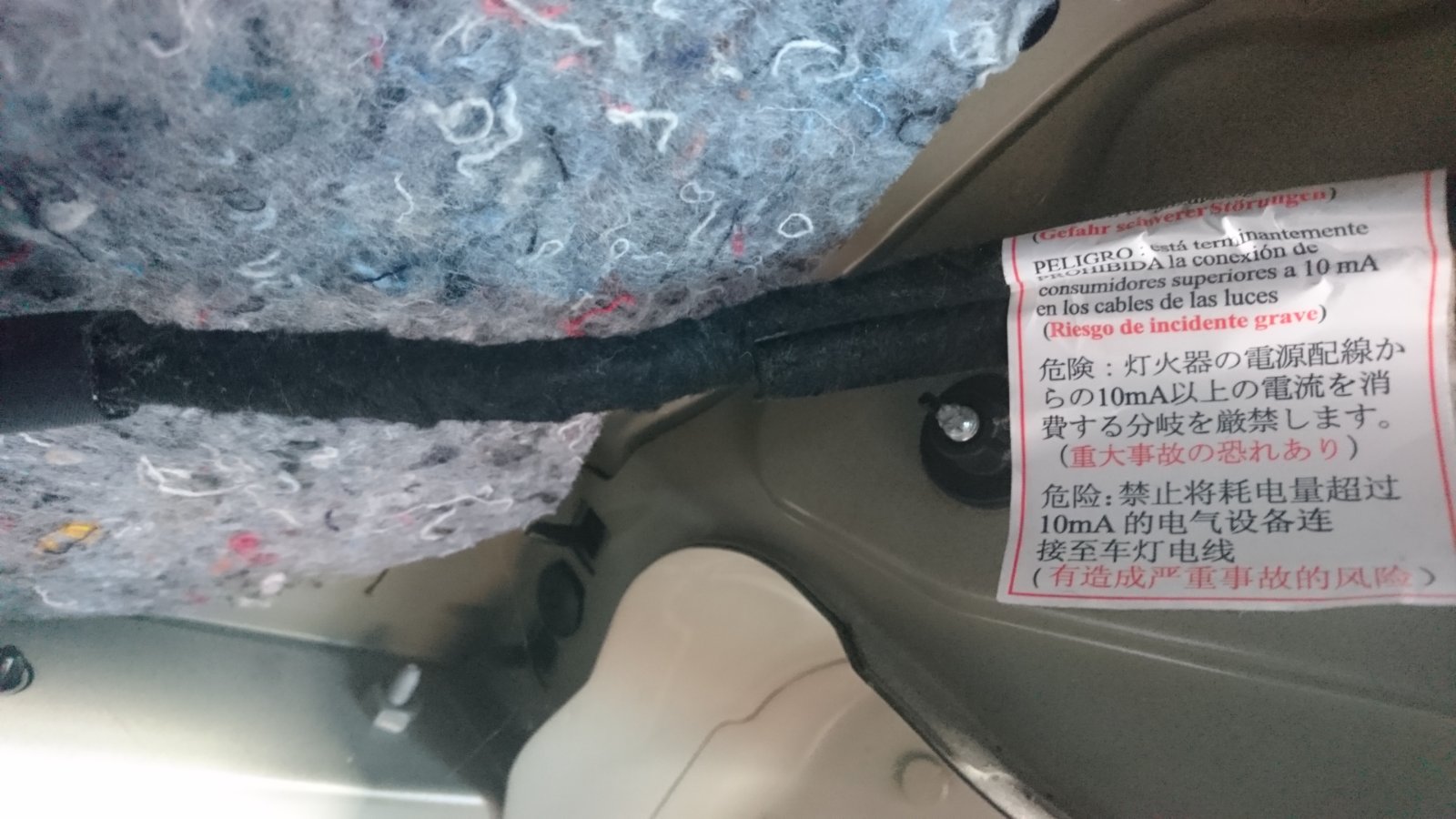

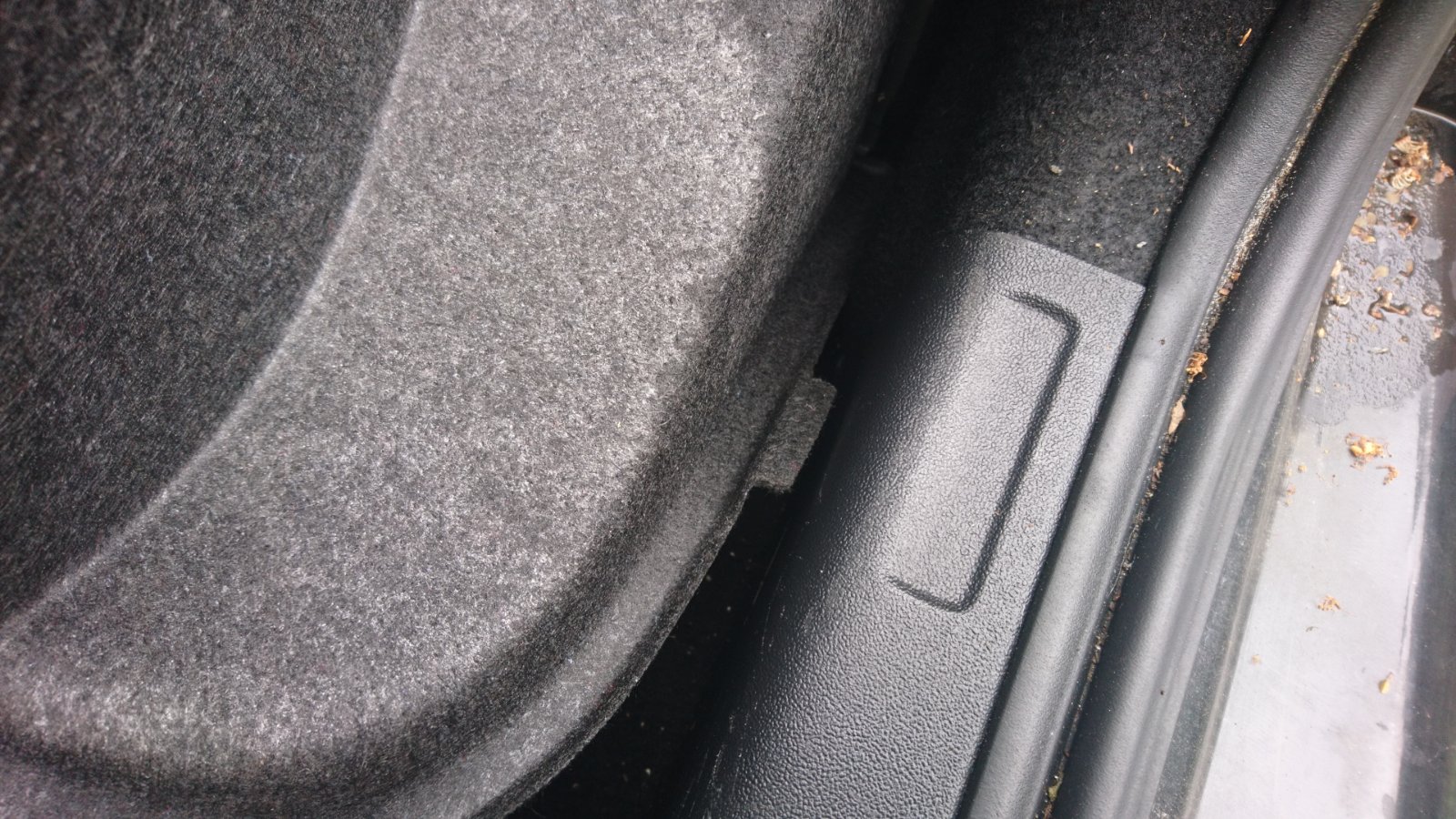

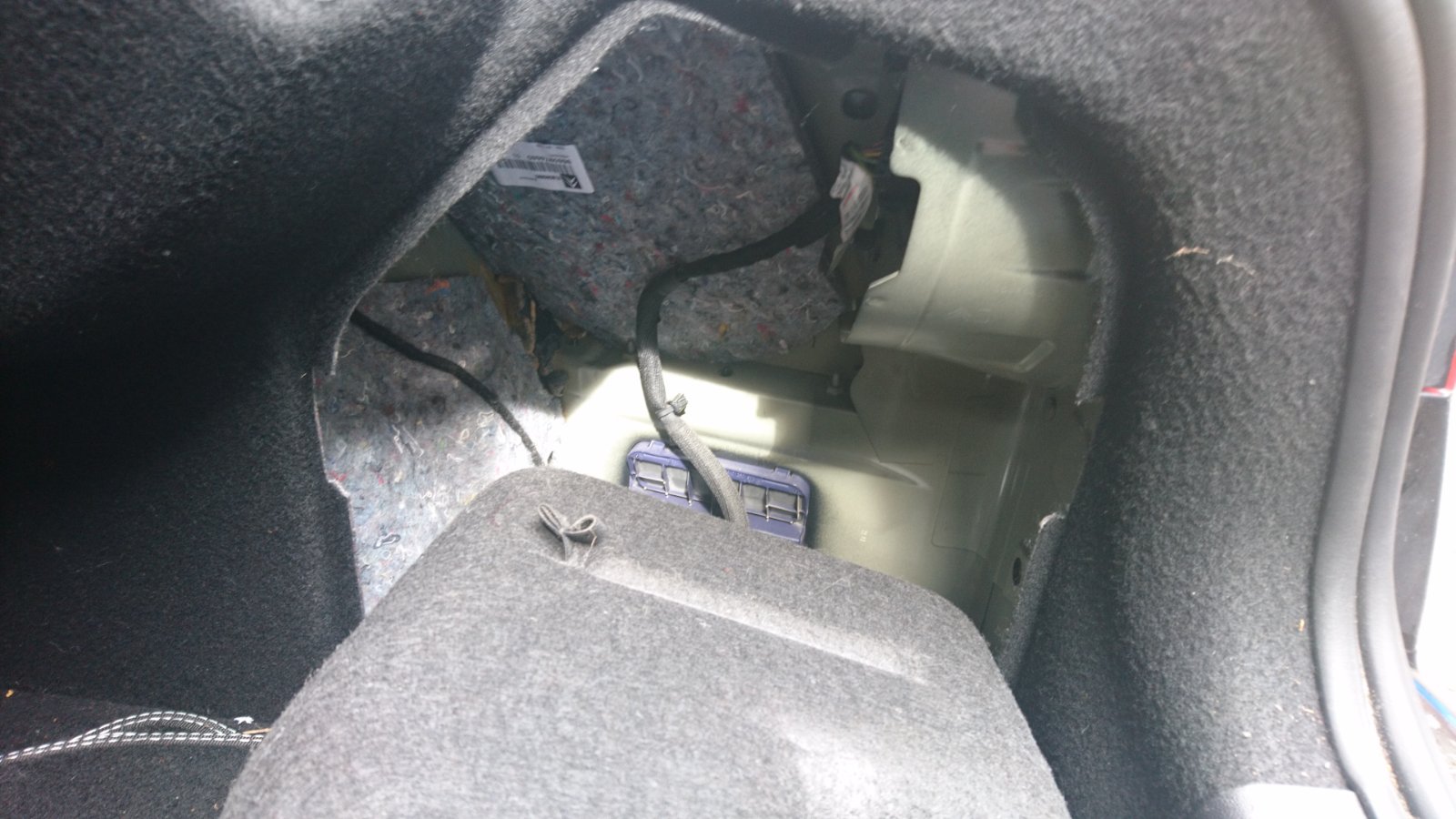

Hope these show the cover panel.
It is a case of gently pulling down from the top and then undoing the 2 retaining nuts, unplug the electrical connector and removing the light cluster from outside.
It can be a pain to get the cluster back in place, don't force it.
When putting the cover back in place just get the tabs in and Bob's your Uncle
It is a case of gently pulling down from the top and then undoing the 2 retaining nuts, unplug the electrical connector and removing the light cluster from outside.
It can be a pain to get the cluster back in place, don't force it.
When putting the cover back in place just get the tabs in and Bob's your Uncle
Re: c5 x7 tourer stoplight bulb replacement
Thanks everyone-- As you suggest it was easy to gently remove the basket panel and access from there.
