Espr and many other faults in rain

Post by Ablettbam87 »

Hi all ,

I hope someone can help I have a c4gp 15 plate 120hdi

A while back I had espr , hill start assist , tyre monitoring system , abs faults all come on at once .
RAC diagnosed it with wheels speed sensor so had it replaced , codes still on , got a puncture and changed 2 front tyres in the last few weeks when weather was hot . After tyre pressure reset codes all went off for around 3 weeks 1000 miles as went away . Started raining today and all faukt codes back on , this is my first French car and I'm aware they can be prone to electrical.. can anyone help before I send it to main dealers to sting me ?
Or is this a main dealer issue, I've had 3 mechanics telling me different things so I'm lost is their a mobile mechanic with the citroen software ??

Thanks for taking the time to read and please help advise me if possible
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Espr and many other faults in rain

Post by GiveMeABreak »

Hi

The wheel sensor supplies the ABS and engine ECU with data which is used for a lot of the systems and probably why you had so many fault codes when one part of it goers wrong.

If the problem returns in the wet, I would suspect the wiring around the sensor - or certainly that cable. It may have been cut or damaged exposing a wire and may be prone to shorting causing the intermittent problems.
Please Don't PM Me For Technical Help

Marc
Ablettbam87
Posts: 3
Joined: 18 Jun 2021, 09:34
Location: Whitchurch hampshire
My Cars: 2015 citroen grand picasso

Re: Espr and many other faults in rain

Post by Ablettbam87 »

Hi ,

Thanks for your reply , I guess its a process of elimination! Could it be a wheel bearing , do they have sensors ?? Normal diagnostics machines won't pick it up they just show the same faults as the built in car one ? Would a alexia show up the problem ? I want to avoid main dealers but it seems that's my only option!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Espr and many other faults in rain

Post by GiveMeABreak »

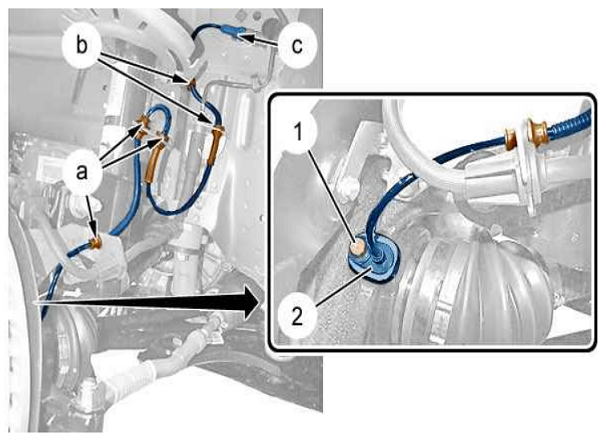

The front wheel sensor is shown at (2) with cabling.
ABS sensor.PNG
Please Don't PM Me For Technical Help

Marc
Ablettbam87
Posts: 3
Joined: 18 Jun 2021, 09:34
Location: Whitchurch hampshire
My Cars: 2015 citroen grand picasso

Re: Espr and many other faults in rain

Post by Ablettbam87 »

Hi Marc,

I had that replaced and didn't fix it was the RAC that said rear driver wheel speed sensor do you think it's worth doing the front ??
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Espr and many other faults in rain

Post by GiveMeABreak »

Not unless you have had that confirmed with a proper diagnostic session. This will determine whether a sensor is at fault and which one. No sense in wasting money replacing parts unnecessarily.

You may be better off getting the dealer to sort it than going from garage to garage that don't know what the issue is and are guessing.
Please Don't PM Me For Technical Help

Marc
