Xantia Fuse Box Pinout Diagram (BF00)

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Renanek9
Posts: 50
Joined: 20 Apr 2021, 18:29
Location: Brazil
My Cars: Xantia Ph 2 Activa V6
x 4

Xantia Fuse Box Pinout Diagram (BF00)

Post by Renanek9 »

Hello my friends

Can anyone provide the Xantia Phase 2 Fuse BOX Pinout Diagram? The Internal fuse box, labeled as BF00
WhatsApp Image 2021-06-10 at 12.26.17.jpeg
I´ve found this image, with the socket names. But No pinout diagram

My car is a Activa V6 Phase 2. I don´t know if the diagram should be specific for this model

Can anyone Help please?

Thank you
Xantia Ph 2 Activa V6 - 7681CJ / VH000121
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by xantia_v6 »

We can probably find the diagrams that you need. Can you provide the RP number (ORGA) for your car so that the build date can be checked? There were at least 3 versions used.
Renanek9
Posts: 50
Joined: 20 Apr 2021, 18:29
Location: Brazil
My Cars: Xantia Ph 2 Activa V6
x 4

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by Renanek9 »

xantia_v6 wrote: 10 Jun 2021, 19:37 We can probably find the diagrams that you need. Can you provide the RP number (ORGA) for your car so that the build date can be checked? There were at least 3 versions used.

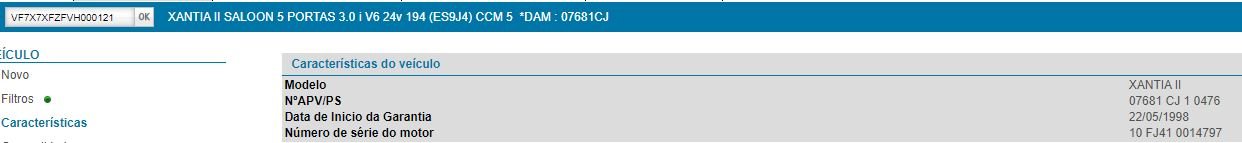

Hello! Does any of this information below meet your request?
Thank you very much!
Xantia Ph 2 Activa V6 - 7681CJ / VH000121
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by xantia_v6 »

Your car was built on 19 November 1997, which is quite early for a series 2.

Most of our diagrams are for UK market vehicles, but the fuse board and major connectors will be the same .
Renanek9
Posts: 50
Joined: 20 Apr 2021, 18:29
Location: Brazil
My Cars: Xantia Ph 2 Activa V6
x 4

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by Renanek9 »

xantia_v6 wrote: 11 Jun 2021, 02:05 Your car was built on 19 November 1997, which is quite early for a series 2.

Most of our diagrams are for UK market vehicles, but the fuse board and major connectors will be the same .
What number tells you the date of the built? I just want to learn

And yes, It is a 97/98 model. Here in Brazil we have 97/98 Phase 1 and 97/98 Phase 2

Maybe the first ones were sent to us.... i don´t know. Curious right?

About the diagrams. I´m glad to know. Do you have them? Can you help? I just need the pinout. I´m having a issue and that might help me to solve (i´m really close to)

Thank you
Xantia Ph 2 Activa V6 - 7681CJ / VH000121
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by white exec »

Renanek, Mike
I'll look out the circuit diagram/pinouts, using your production date above (RP=7681).

This is what we have...

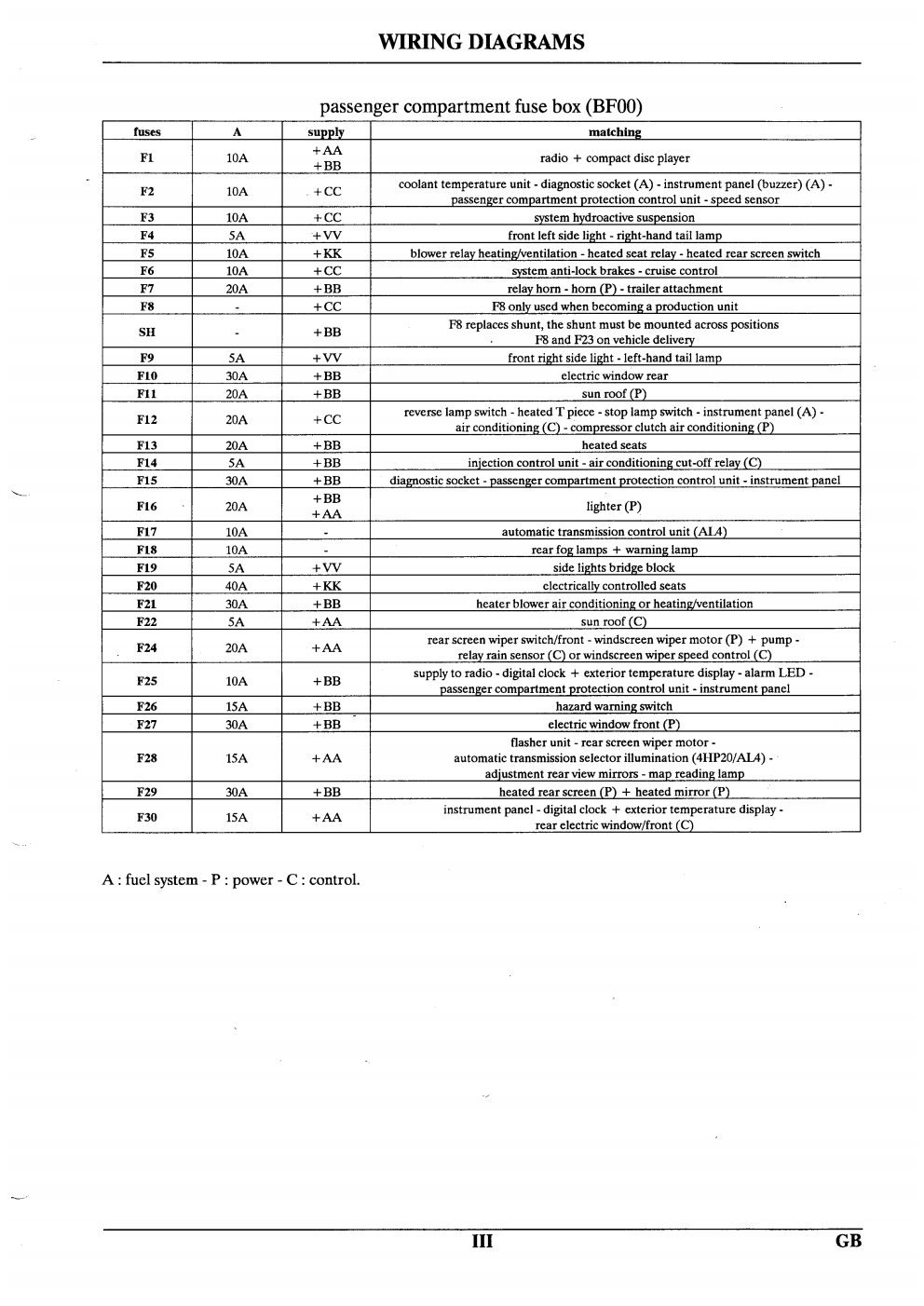

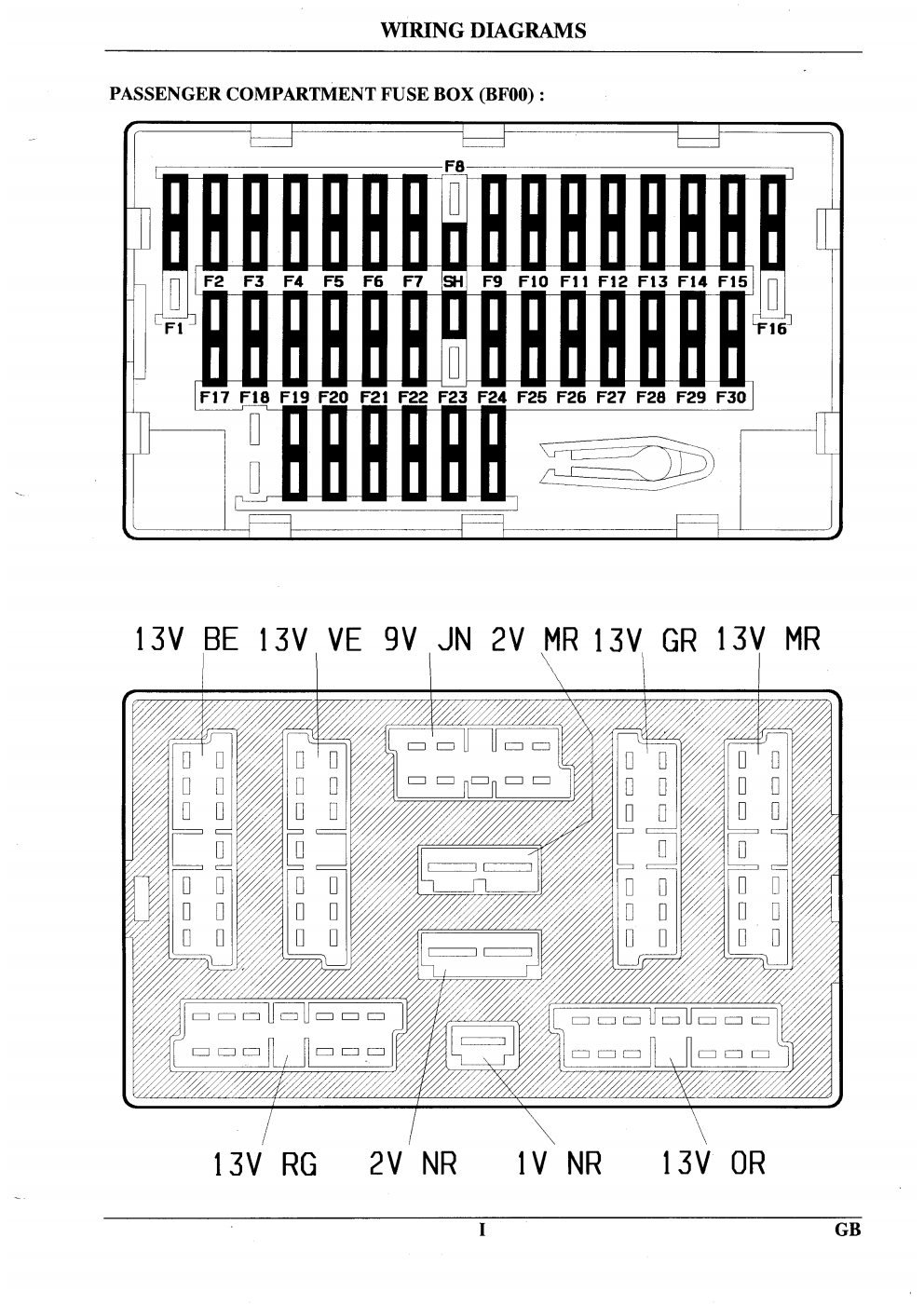

Source - Electrical Wiring Diagram, Xantia ph2 (BRE0312 Vol.1 p.1)

Click to enlarge

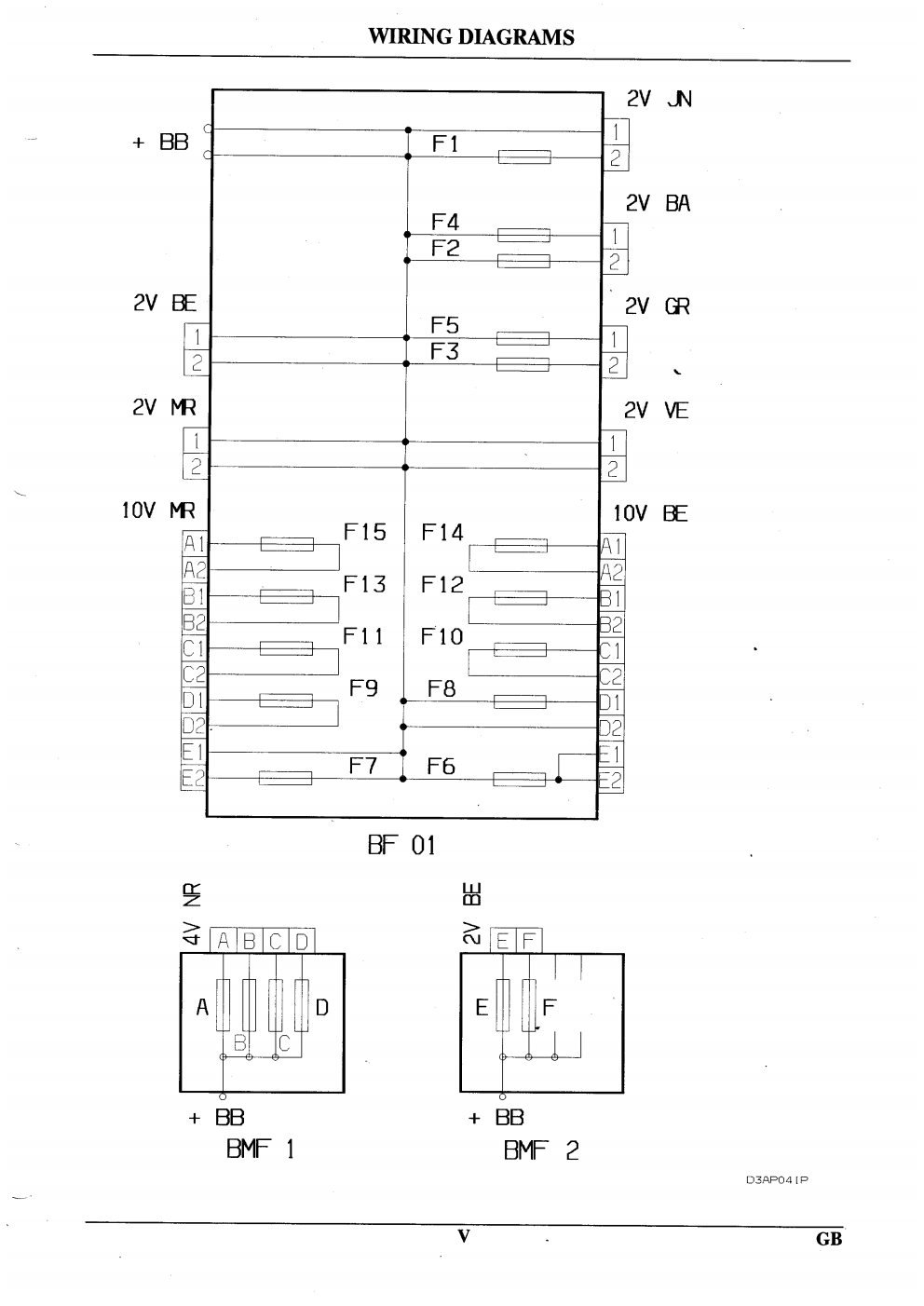

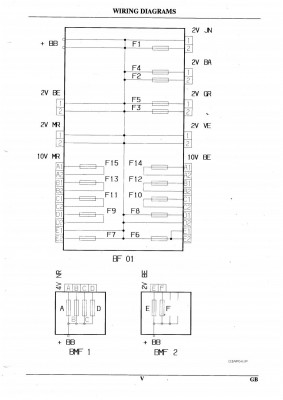

Have included the other engine bay fusebox as well.

Hope helpful.

Production/build date
This can be got from the car's RP (RPO, ORGA) number, which - for Xantia - is the four figure number stencilled (often in yellow) on the engine bay inner wing, near the paint code.
It increases by 1 each day.
There are various websites that will calculate the date from an RP number. Just search "Citroen RP decoder".
This is the one I use: http://www.citroen-ds-id.com/gen/Gen_Organr.html
Chris
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by xantia_v6 »

white exec wrote: 11 Jun 2021, 07:09 Renanek, Mike
I'll look out the circuit diagram/pinouts, using your production date above.
Thanks Chris, I am a bit short of time at present.
Renanek9
Posts: 50
Joined: 20 Apr 2021, 18:29
Location: Brazil
My Cars: Xantia Ph 2 Activa V6
x 4

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by Renanek9 »

white exec wrote: 11 Jun 2021, 07:09 Renanek, Mike
I'll look out the circuit diagram/pinouts, using your production date above (RP=7681).

This is what we have..
WOW!!! :shock:

Thank you very much. So much information. Thank you a lot!

I really love this forum

Now, about this source of information - Electrical Wiring Diagram, Xantia ph2 (BRE0312). Is it possible to acess this material? How can i proceed? Is downloadable? Should i pay? Is very interesting to have acess to so much information to help us

Thank you again
Xantia Ph 2 Activa V6 - 7681CJ / VH000121
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by white exec »

We do have some limited access to electrical wiring diagrams, including for Xantia, but copyright restrictions only allow small extracts of these to be posted for the purposes of study/troubleshooting. You may be able to find collections of these on the web, but quality could be limited or not well tied to different models or production dates.

If you need additional help with these, or anything else, do just ask. We do our best to help.
Lots of Xantia expertise here - a car that sold well in Europe and in the UK.
Chris
Renanek9
Posts: 50
Joined: 20 Apr 2021, 18:29
Location: Brazil
My Cars: Xantia Ph 2 Activa V6
x 4

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by Renanek9 »

white exec wrote: 11 Jun 2021, 19:30 We do have some limited access to electrical wiring diagrams, including for Xantia, but copyright restrictions only allow small extracts of these to be posted for the purposes of study/troubleshooting. You may be able to find collections of these on the web, but quality could be limited or not well tied to different models or production dates.

If you need additional help with these, or anything else, do just ask. We do our best to help.
Lots of Xantia expertise here - a car that sold well in Europe and in the UK.
Oh, off course. I understand that. Don´t Worry!

Glad to have this forum and you guys

Thanks again!
Xantia Ph 2 Activa V6 - 7681CJ / VH000121
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by xantia_v6 »

If you tell us which circuit you are working with, we may be able to find a specific diagram.
Renanek9
Posts: 50
Joined: 20 Apr 2021, 18:29
Location: Brazil
My Cars: Xantia Ph 2 Activa V6
x 4

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by Renanek9 »

xantia_v6 wrote: 11 Jun 2021, 20:01 If you tell us which circuit you are working with, we may be able to find a specific diagram.

I´m trying to solve some wiring issue on my car. My Car is dead without key.

I dont know how to explain. No Central lock, no alarm, no radio or clock memory, no internal light. Nothing. Dead

After turning the key on, everything is up and runing perfect

That´s why i´ve asked for the BF00 (Internal fuse box) and the IC01 (the Bulkhead 133 pins connector). To find all the + received on the fuse box

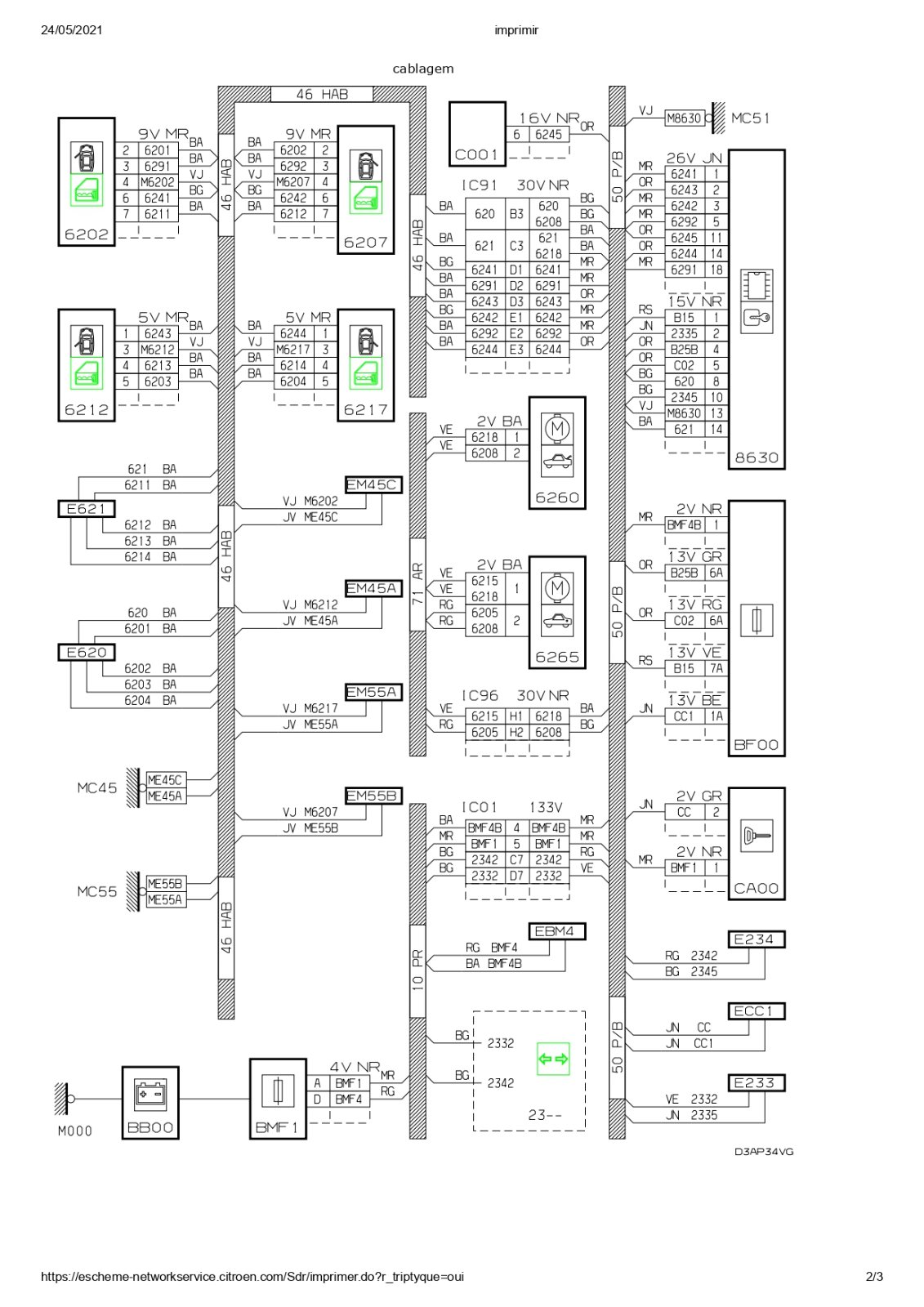

I'm following the electrical diagram below to try to understand and I've already discarded some places that are working (f you can double check for me if they are right, please do)

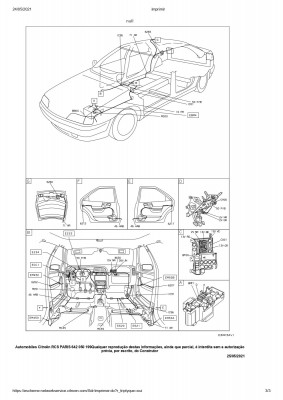

Proteção - Trancamento_page-0003.jpg
Proteção - Trancamento_page-0002.jpg
Proteção - Trancamento_page-0001.jpg
I just notest that the 2v NR on this diagram is in wrong place, when compared to BF00 diagram that you sent to me.




I think this diagram was made with errors by citroen, lol. Here in detail
Xantia Ph 2 Activa V6 - 7681CJ / VH000121
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by white exec »

Has the fusebox SHUNT been checked that it is in correct position?
It is designed to kill all battery drain while the car is in long-term storage/shipment/pre-delivery.
See Passenger fusebox, item SH - to go between F8 and F23 for normal use.
Chris
Renanek9
Posts: 50
Joined: 20 Apr 2021, 18:29
Location: Brazil
My Cars: Xantia Ph 2 Activa V6
x 4

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by Renanek9 »

white exec wrote: 11 Jun 2021, 21:20 Has the fusebox SHUNT been checked that it is in correct position?
It is designed to kill all battery drain while the car is in long-term storage/shipment/pre-delivery.
See Passenger fusebox, item SH - to go between F8 and F23 for normal use.

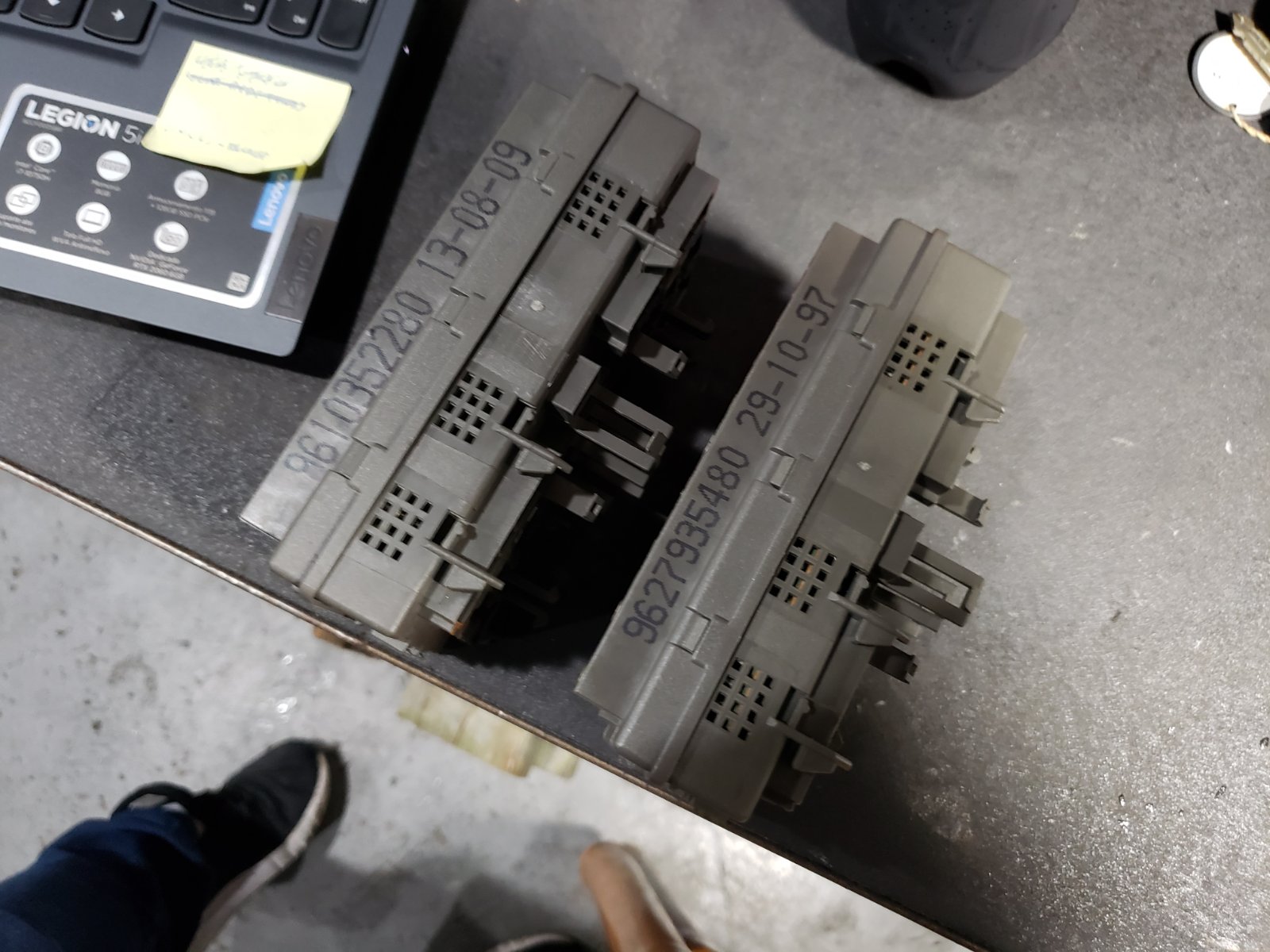

Hello! Solved... my car was using a XSARA fuse box. The battery pinout is different from Xantia´s
9610352280 = Xsara
9627935480 = Xantia
Xantia Ph 2 Activa V6 - 7681CJ / VH000121
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Xantia Fuse Box Pinout Diagram (BF00)

Post by white exec »

Result! Well done in tracking that down. Not something you'd think of... #-o #-o #-o
Chris
