Air con hose...

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.
Romtag
Donor 2024
Posts: 111
Joined: 07 Apr 2021, 21:01
x 8

Air con hose...

Unread post by Romtag »

I need the part number for the air con hoses for the 308.

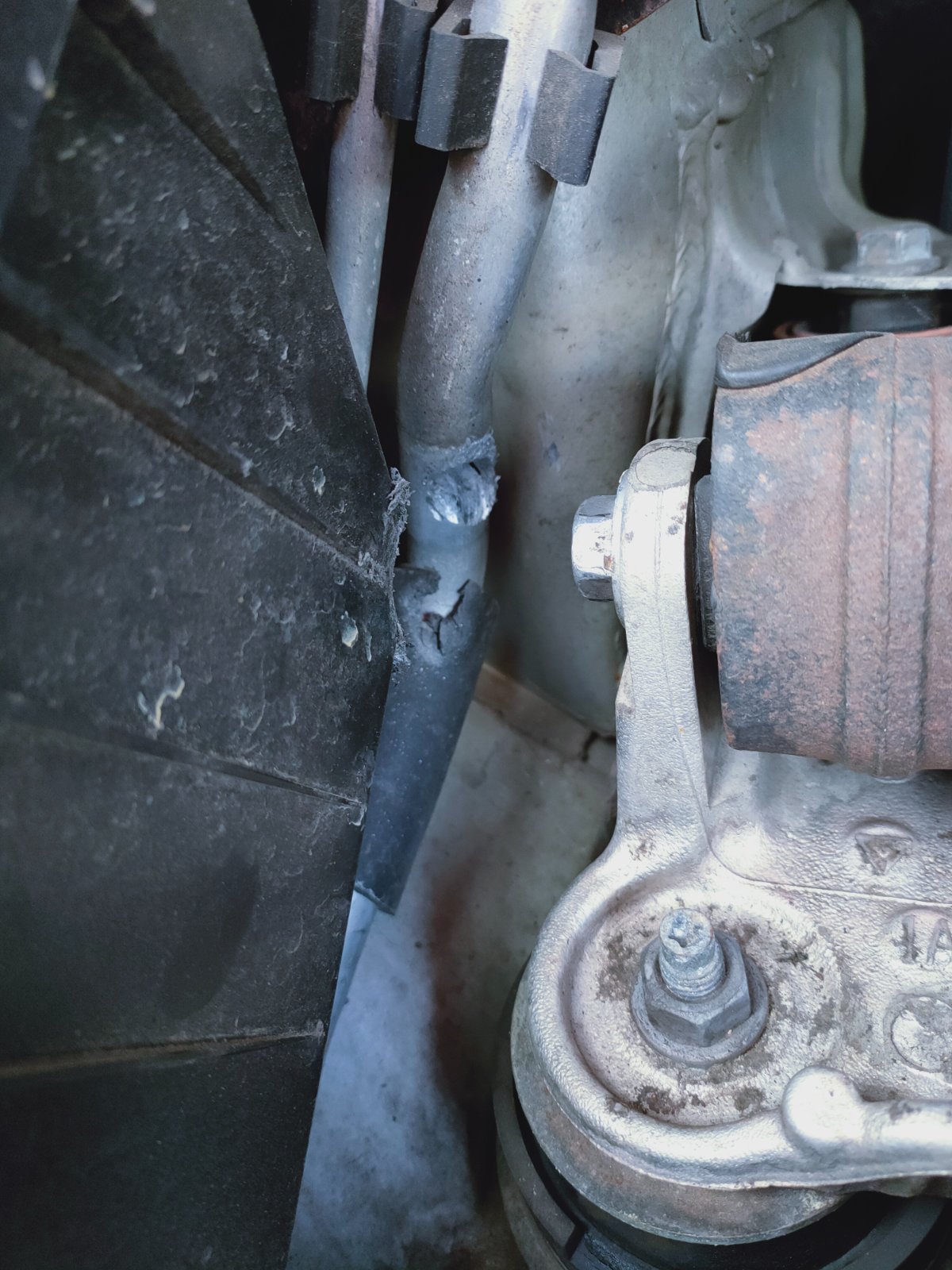

It has a gaping hole it in from where the engine mounting bolt came loose and rubbed into it at some point in the past 😬

This fecking car 🤬🤬🤬
Attachments
Mark
Owner of a 2013 308 SW
Hell Razor5543
(Donor 2023)
Posts: 14260
Joined: 01 Apr 2012, 09:47
x 3275

Re: Air con hose...

Unread post by Hell Razor5543 »

Before you look to replace that pipe you might want to see how convoluted the route is. My first C5 had a failed pipe, and the only way to have replaced it would have been to take the engine out first! It also would not have been possible to repair it in situ, as there was too much in the way.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
ex C5 2.0HDi VTR
ex C5 2.0HDi VTR
ex C5 2.2HDi VTX+

Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Romtag
Donor 2024
Posts: 111
Joined: 07 Apr 2021, 21:01
x 8

Re: Air con hose...

Unread post by Romtag »

Hell Razor5543 wrote: 03 Jun 2021, 16:19 Before you look to replace that pipe you might want to see how convoluted the route is. My first C5 had a failed pipe, and the only way to have replaced it would have been to take the engine out first! It also would not have been possible to repair it in situ, as there was too much in the way.
I hear what you are saying but the mechanic I use says it's about an hour's labour but I have to supply the part.

I cant believe the engine mount bolt was loose. I dread to think what would have happened if it had gone whilst I was driving.

The mechanic I use now has gone over everything and has ensured everything is safe. Just the air con to fix. 😔
Mark
Owner of a 2013 308 SW
wheeler
Posts: 7893
Joined: 21 Sep 2002, 19:07
x 1043

Re: Air con hose...

Unread post by wheeler »

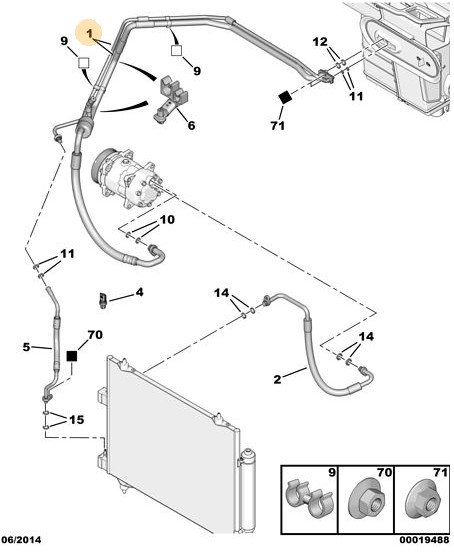

Looks like its number 1 in the pic? Comes as a pair. Part no: 6477Q1 and is £157.68 + VAT.
It is a superseded part so it may have some modification compared to the original.
Attachments
AC pipes.jpg
Romtag
Donor 2024
Posts: 111
Joined: 07 Apr 2021, 21:01
x 8

Re: Air con hose...

Unread post by Romtag »

wheeler wrote: 03 Jun 2021, 19:46 Looks like its number 1 in the pic? Comes as a pair. Part no: 6477Q1 and is £157.68 + VAT.
It is a superseded part so it may have some modification compared to the original.
Thanks wheeler, you are a star. Between you and Marc I think FcF has saved me loads of hassle and expense. Thank you!
Mark
Owner of a 2013 308 SW
