Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by Ianhw77k »

While driving out the other night, my trusty van broke down. I was just pulling away from a roundabout when something went, it lost a lot of power, the turbo stopped whistling and the engine was clattering. There was a fair bit of white smoke from the exhaust and a strong smell of raw diesel.
I've since been towed home and had a mobile mechanic come and take a look. He couldn't fix it but his diagnostic tool was showing that number 3 injector flow is sky high. The others were running at around 60 to 80 whereas number 3 was running at 130 and over. (Sorry, I don't know what the units of measurement are)

My main question is, would this problem stop the turbo from boosting, as all turbo noises have stopped but all turbo hoses are fine and there's no excessive play anywhere on the turbo. Also, does this sound like it could be just a faulty injector or do any of you think it could be something more terminal? The van is a 2010 model with around 170,000 on the clock.
1995 Citroen Synergie 1.9TD (Mine)
2001 Citroen Xsara Picasso 2.0HDI (The wife's)
Ianhw77k
Posts: 122
Joined: 01 Apr 2014, 19:38
Location: East Sussex
My Cars:

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by Ianhw77k »

OK, I've been doing some research, dangerous stuff I know.
3 of my injectors have the same part number and, what I believe to be the series number. I've found some on eBay with the same part and series number but what I don't know is, do they need to be programmed in or can I just fit them and carry on?
Also, if the diagnostic tool said injector 3, which way are the cylinders numbered?
1995 Citroen Synergie 1.9TD (Mine)
2001 Citroen Xsara Picasso 2.0HDI (The wife's)
Online
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by Paul-R »

Ianhw77k wrote: 22 May 2021, 17:16Also, if the diagnostic tool said injector 3, which way are the cylinders numbered?
That I can answer! PSA engines number from the gearbox end of the engine.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by GiveMeABreak »

If this is the DW10BTED4 engine, then there are 20 identification characters on the diesel injectors,. The injectors must be matched to the cylinders and this is done with Diagbox.
Please Don't PM Me For Technical Help

Marc
Ianhw77k
Posts: 122
Joined: 01 Apr 2014, 19:38
Location: East Sussex
My Cars:

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by Ianhw77k »

From what I've been reading, these are the Siemens injectors with the single digit code on them, so as long as that's matched up it should be plug and play.
Although I found a thread on this forum from a couple of years back where a guy had almost exactly the same problem and it ended up being a dropped valve, which doesn't fill me with confidence.

The plan now is to do a leak off test and while I'm at it, I'm going to take a look under the valve cover to make sure everything's in order before I buy a secondhand injector off eBay.

If anyone wants to chime in with any advice, I'm all ears. It's been a while since I've frequented this forum, hope you're all keeping well.
1995 Citroen Synergie 1.9TD (Mine)
2001 Citroen Xsara Picasso 2.0HDI (The wife's)
Ianhw77k
Posts: 122
Joined: 01 Apr 2014, 19:38
Location: East Sussex
My Cars:

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by Ianhw77k »

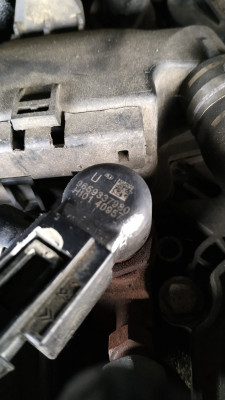

Here's a pic of the top of one of the injectors.
1995 Citroen Synergie 1.9TD (Mine)
2001 Citroen Xsara Picasso 2.0HDI (The wife's)
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by GiveMeABreak »

As I said in my first post - 20 characters....or it would seem 19 in that picture for the DW10BTED4 system, which has a Delphi Injection system. I've just provided you with the same info the dealer would use.

If you pop your VIN up I will double check against your engine to be sure.
Please Don't PM Me For Technical Help

Marc
Ianhw77k
Posts: 122
Joined: 01 Apr 2014, 19:38
Location: East Sussex
My Cars:

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by Ianhw77k »

It's not the injector, leak off is showing them all pretty much equal. It's going to the garage as I'm out of ideas and out of my depth.
1995 Citroen Synergie 1.9TD (Mine)
2001 Citroen Xsara Picasso 2.0HDI (The wife's)
Ianhw77k
Posts: 122
Joined: 01 Apr 2014, 19:38
Location: East Sussex
My Cars:

Re: Peugeot Expert, 2.0hdi 140hp possible injector failure.

Post by Ianhw77k »

GiveMeABreak wrote: 22 May 2021, 23:48 As I said in my first post - 20 characters....or it would seem 19 in that picture for the DW10BTED4 system, which has a Delphi Injection system. I've just provided you with the same info the dealer would use.

If you pop your VIN up I will double check against your engine to be sure.
The only number that's different is the last 5 digits, the top row of numbers is the part number of the injector. The "JB05" corresponds with the single number 5 on the top left, denoting that they're a series 5 injector, which is the important part as some used series 4, 5 or 6 and these numbers need to match up.

Injector 4 is the only one with different numbers so I can only assume either that one, or the other three were changed at some point. This is injector 4 which is the anomaly.
