Citroen c5 x7 3.0 HDI active engine mounts

[Falka]

Hello guys!

My friend asked me if i can dig up the installation / setup process of the active engine mounts. He said theres multiple nuts that needs proper torque or something like that

Do you guys have any documentation or info about this topic?

[GiveMeABreak]

Here you go:

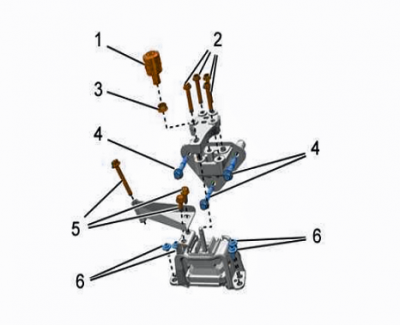

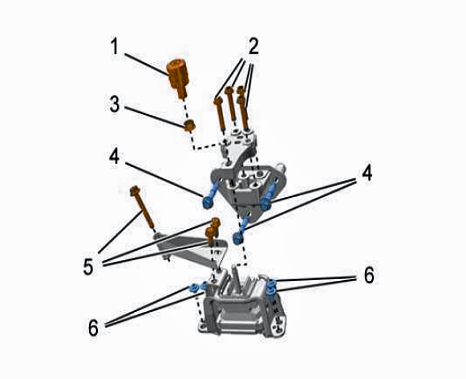

RH engine Support

Reference	Designation	Tightening torque ( daNm)
(1)	Upper vibration damper (Right hand )	2
(2)	bolts / Right side upper engine mounting	6
(3)	nut / Right hand flexible engine mounting	6,5
(4)	bolts / Right-hand intermediate engine mounting	8,2
(5)	bolts / Engine suspension torque reaction rod	6
(6)	bolts / Right hand flexible engine mounting	2,8

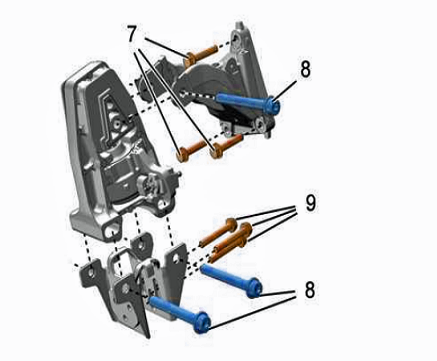

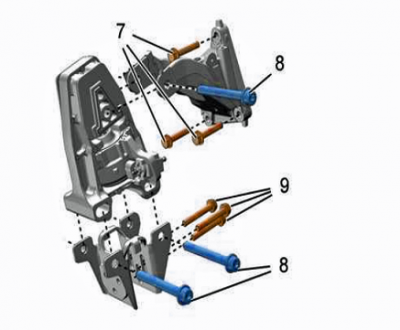

Front Piloted Torque Reaction Rod

Reference	Designation	Tightening torque ( daNm)
(7)	bolts / gearbox mounting (Front)	6
(8)	bolts / Front reaction link rod	6
(9)	bolts / Engine mounting seat (Front)	6

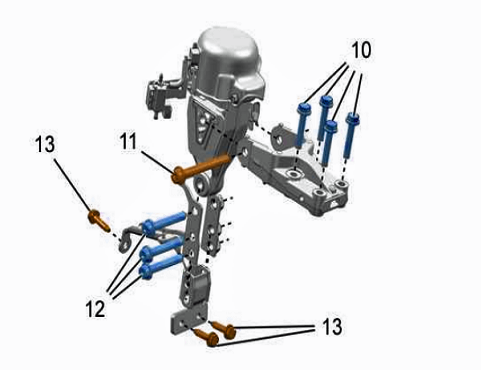

Rear Piloted Torque Reaction Rod

Reference	Designation	Tightening torque ( daNm)
(10)	bolts / gearbox mounting (Rear )	6
(11)	bolts / Rear reaction link rod	6
(12)	bolts / Rear engine mounting	6
(13)	bolts / Torque reaction support link (Rear )	6

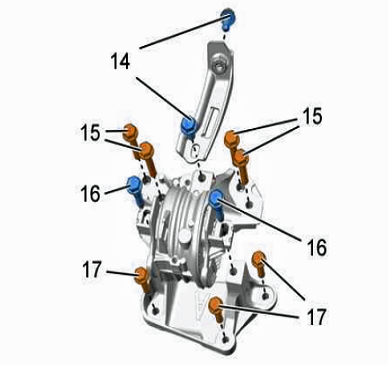

LH Gearbox Support

Reference	Designation	Tightening torque ( daNm)
(14)	bolts / Gearbox vibration brace (Left hand )	6
(15)	bolts / Left hand flexible engine mounting	6
(16)	bolts / Left hand flexible engine mounting	6
(17)	bolts / LH upper engine mounting on gearbox	5,5

[Falka]

Thank you very much Marc!

[Falka]

So i showed my friend this documentation. Sadly he wasn't specific enough about what he was stuck on. Apparently theres a few screw holes on the mounts, that (by design) has about 1-3cm "wiggle" room side to side. Probably to fine tune the mounts?

Hes asking, if theres any documentation about those or just "feel it out".

You cant really see it in the pic above, but i saw the mount brackets IRL, and they do have those "0" holes
