Re: Heat Pumps, One for the engineers

Post by NewcastleFalcon »

..and lo and behold we are onto page 3. I would say front running will be air-source heat pumps/ better insulation/draught proofing windows for existing dwellings. Perfectly possible to build new homes which require very little heating.

Bit about water source heat pumps here. Not very widely applicable I would think, but still covered in some of the schemes eligible for assistance.

https://energysavingtrust.org.uk/could- ... -work-you/

Regards Neil
Only One AA Box left
687 Trinity, Jersey
User avatar
Dormouse
(Donor 2022)
Posts: 2010
Joined: 15 Apr 2021, 14:32
Location: Kingdom of Fife
My Cars: Peugeot 3008 Hybrid4, Fiat Ducato, Morris Mini.
plus notable cars I have owned :- Studebaker 1921, Daimler Consorts, Mercedes 220 Pontoon, Simca 1301, Austin Metropolitan, lots and lots of Minis, both steel and fibreglass bodied, Fiat 500F, Citroen GSA's, Skoda Estelle 120 Rally replica, DKW 1000S, Triumph Herald Estate, Warwick GT (very briefly)
x 666

Re: Heat Pumps, One for the engineers

Post by Dormouse »

Just hot tap their electricity supply while you are at it. They might never notice. And if they do, just say your Smart Meter told you to do it.
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Heat Pumps, One for the engineers

Post by Gibbo2286 »

myglaren wrote: 01 May 2021, 14:02 I wonder if it would be cost-effective if I were to breach the wall to next door and suck the heat out of their house?
Do you think they would notice?
I had a mate who dabbled for a while in property, he bought a large cottage and split it into three units, the two outer units sold quite quickly so he was then stuck with the middle one which had no water supply, when one of the new owners went away for the weekend he broke through the wall and connected the middle house to the mains under the bath. :shock:

I often wonder if it's ever been discovered.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Heat Pumps, One for the engineers

Post by xantia_v6 »

The subject of heat pump efficincy is a bit confusing t the uninitiated. Here is a graph of typical performance for an air to water heat pump. Each line represents a different outlet temperature.
The advantage of a groud-source system is that (if correctly installed) the inlet temperature is always above freezing.


In the case of our heating system, the outlet temperature will be 25 - 30 degrees, and the ambient is (almost) never below freezing, so I am expecting a COP of about 4 (400% 'efficiency').

Air to water heat pumps are not well suited to running conventional radiators, because of the higher outlet temperatures required.
User avatar
NewcastleFalcon
Posts: 24563
Joined: 25 Feb 2009, 10:40
Location:
My Cars:
x 6866

Re: Heat Pumps, One for the engineers

Post by NewcastleFalcon »

Bit of visuals from wiki
A: indoor compartment, B: outdoor compartment, I: insulation, 1: condenser, 2: expansion valve, 3: evaporator, 4: compressor
https://commons.wikimedia.org/wiki/File ... -cycle.svg
Original source file: User:Ilmari KaronenKeno at en.wikipedia.
and animation from the Energy Saving Trust


Yes I'm sure those clever people at Mitsubishi, and elsewhere can knock together the gubbins required a bit cheaper than they currently do.

Regards Neil
Only One AA Box left
687 Trinity, Jersey
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: Heat Pumps, One for the engineers

Post by mickthemaverick »

Anyone tried installing chest freezers on the patio with the evaporators up against a house wall with an air brick or two to take the heat inside? Also means you have somewhere to keep the BBQ ingredients!! :?: :-D
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Heat Pumps, One for the engineers

Post by Gibbo2286 »

My experience of chest freezers comes from running the shop, we had two large ones, they were damned expensive to run and suffered frequently with the cooling fins getting blocked by dust.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
NewcastleFalcon
Posts: 24563
Joined: 25 Feb 2009, 10:40
Location:
My Cars:
x 6866

Re: Heat Pumps, One for the engineers

Post by NewcastleFalcon »

This is a more in depth video it lasts a whole 9 minutes 42 seconds but covers all the different types with nice animation. I found it very informative.




Regards Neil
Only One AA Box left
687 Trinity, Jersey
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: Heat Pumps, One for the engineers

Post by mickthemaverick »

Curiousity compels me to ask Gibbo, were they the display type with see through lids? Our chest in the leanto seemed a lot more economical than the old upright which lost its cold air everytime you opened the door in our cosy kitchen. The combination of siting it in a cooler place and having a decent top lid meaning the cold air stayed inside when you opened it made it much cheaper to run. As it was the exhaust heat was going through a drier from an old LDV refiigerated van into the shed and keeping that above freezing point in the coldest of days. A good setup maximising the use of the power but in the end we didn't have enough use for a big chest so we have reverted back to an under counter upright and suffer the extra cost for the convenience benefit!! :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Heat Pumps, One for the engineers

Post by moizeau »

Geotherme is popular here if you're building a new house. In the countryside a small garden is 1000m2 so size isn't an issue. It's a lattice of pipes about 1m under the ground covering about 40m2 I think. A gel is pumped through the network and then the heat extracted. He told me for 4kw of heat it costs 1kw of electricity. It's all underfloor, OK with a new build, and cost about £15k all in, again, in a new build it can be budgeted in. The house remains the same temperature all year round and he gains space in each room because he hasn't got any rads.
Pete
Notice the BX is still top the list but sadly gone
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: Heat Pumps, One for the engineers

Post by myglaren »

We had a large chest-freezer in the 'utility' room and another upright in the kitchen. Wife's idea.
We used to buy meat in bulk - a lamb, half a pig, half a 'beast' (cow).
Initially expensive but she would portion it out and freeze most of it. Spend the weekend cooking and baking and freeze a fair bit of that too.
Didn't need to do much shopping, only fresh veg, butter, eggs etc. There was enough food to survive for ages but the main thing was the baby dinners for the small ones.
She was wary of commercial baby food, partly due to preservatives and E-numbers that were heavily criticised at the time, and also some nuts going around contaminating baby food - broken glass etc.
She knew exactly what was in her baby meals and was happier with that.
Not least was the savings on food, bulk buying meat was actually far cheaper than buying it piecemeal.

The freezer kept that room reasonably warm in winter and her cooking non stop over the weekend kept the rest of the house warm too - she insisted on a slow-cooker double oven that ran all night too.
Which reduced the heating bills and also the gas bills as there were many items being cooked at the same time. Hard work for her but she revelled in it and there was always fresh bread and cakes, no need to buy any.
Smart woman. Learned a lot from her.
User avatar
NewcastleFalcon
Posts: 24563
Joined: 25 Feb 2009, 10:40
Location:
My Cars:
x 6866

Re: Heat Pumps, One for the engineers

Post by NewcastleFalcon »

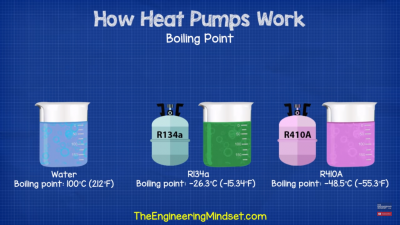

So what's the stuff that courses through the pipework, valves compressors and heat exchangers.
