Boxer II Runs on 3 cylinder fault code P0303

Post by Orchid70 »

Hello
Im struggling.
I have fault code P0303 - Injector number 3 stuck closed
I have read with Autocom and SnapOn. Same fault code.
I did change the injector, with a used one.
Same fault code still.
The cylinder 3 does not fire at all. I can pull the connector to the injector and nothing happens. Pulling the rest of the connectors - will kill the engine.
I have checked the injectors with oscilloscope (SnapOn). And alla injectors give the same pattern.
I have also checked the wiring between ECU and injectors - all OK!
Any ideas?
Is it time to buy Lexia? We have bought our selves a 2011 C5 with problems with gear change, so would be good to have it.
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Paul-R »

Which end of the engine did you count from? PSA engines count from the gearbox end so if you counted from the auxiliary belt end you will have changed the wrong one!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by xantia_v6 »

I think that P0303 is detected by the engine ECU monitoring the crank position sensor and determining that cylinder 3 is producing no power.

On a Diesel, this could be lack of fuel, or it could be a lack of compression. Are you able to perform a compression test? or even crank the engine with the injectors disconnected and listen for even cranking on all 4 cylinders?
User avatar
Orchid70
(Donor 2021)
Posts: 56
Joined: 30 Dec 2019, 14:54
Location: Sweden
My Cars: Citroen C5 2011
x 5

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Orchid70 »

Thank you
I do know that the cylinders are counted from the flywheel on PSA - but see this video:


I do not have copression tester for Diesel. So will have to try to figure it out without one.
Will get back on that later.
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by xantia_v6 »

Maybe you can use your oscilloscope to monitor the battery voltage when cranking, the dip in voltage as each cylinder hits compression should be equal.
User avatar
Orchid70
(Donor 2021)
Posts: 56
Joined: 30 Dec 2019, 14:54
Location: Sweden
My Cars: Citroen C5 2011
x 5

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Orchid70 »

Thank you Xantia_v6!
I have ordered Lexia 3 from UK today and its already left to the Post Office!! Im going to need it for the gear change problems on our new C5.... but thats an other story.
Thats a very nice tip! Im not too familiar with the oscilloscope - learning =)
I took a footage of cranking the engine - guess I dont even need the oscilloscope (God only knows, why we didnt think of doing this before..... hubby is the old time mechanic and Im learning....):
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by xantia_v6 »

That cranking sounds a bit lumpy.
User avatar
Orchid70
(Donor 2021)
Posts: 56
Joined: 30 Dec 2019, 14:54
Location: Sweden
My Cars: Citroen C5 2011
x 5

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Orchid70 »

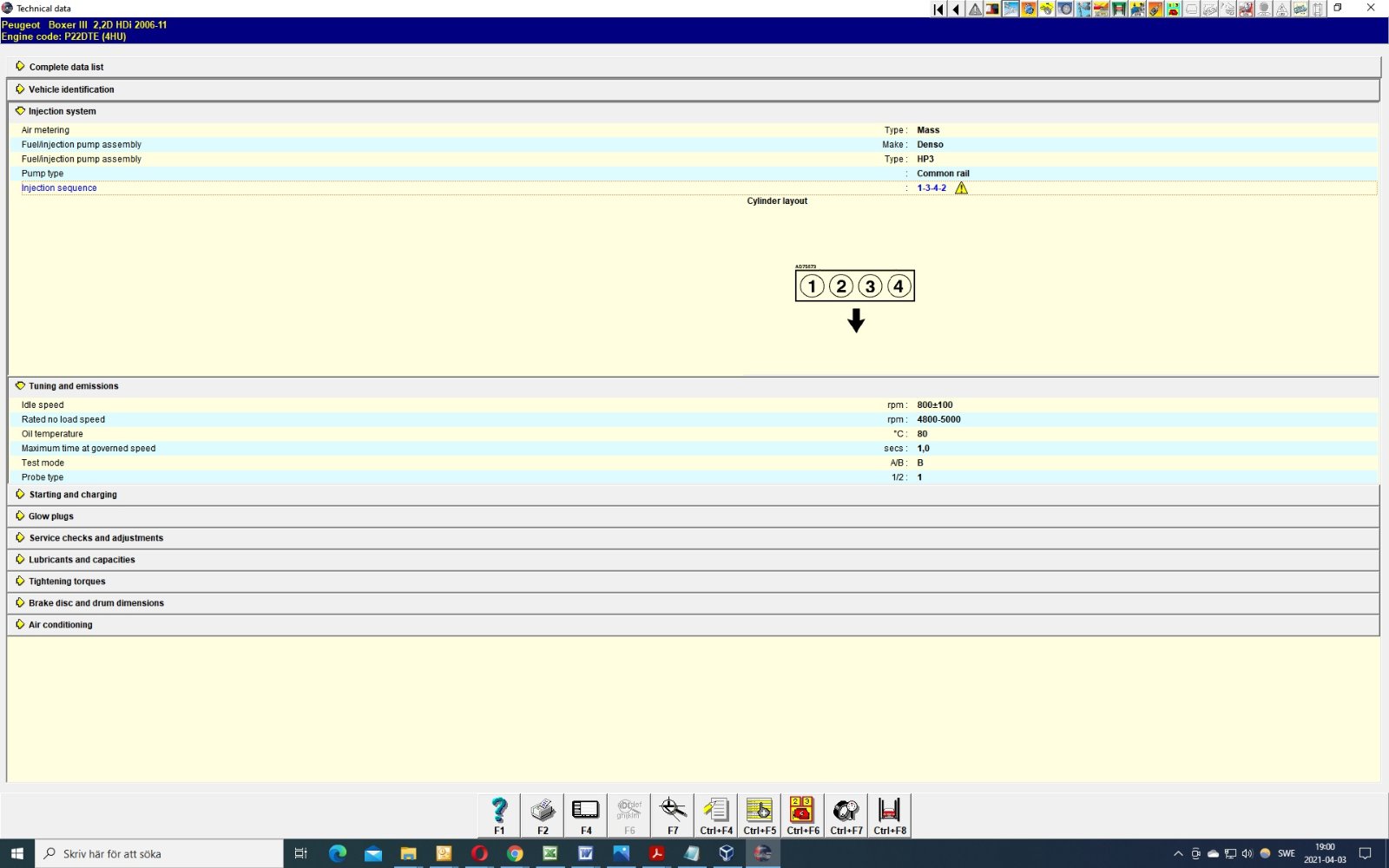

Found the firing order in my old Autodata:
Boxer firing order.jpg
Kylesagar
Posts: 2
Joined: 14 Jan 2022, 08:01
Location: High wycombe
My Cars: Clio 197
Citroen relay
x 1

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Kylesagar »

Hi, I have a 57 plate Peugeot boxer with almost the exact same fault & problem as you. Mine is on cylinder one though can unplug & wont change running of engine. Have checked plug with a light probe & behaves the same as the other plugs. 4x new injectors then swapped number one for an original to see if it was an injector but still have the same issue. I’m thinking it’s a PCM problem. I have just changed the block for a reconditioned lump from transit tech. Didn’t have this problem when it came in. .[-o<
User avatar
Orchid70
(Donor 2021)
Posts: 56
Joined: 30 Dec 2019, 14:54
Location: Sweden
My Cars: Citroen C5 2011
x 5

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Orchid70 »

Kylesagar wrote: 14 Jan 2022, 08:11 Hi, I have a 57 plate Peugeot boxer with almost the exact same fault & problem as you. Mine is on cylinder one though can unplug & wont change running of engine. Have checked plug with a light probe & behaves the same as the other plugs. 4x new injectors then swapped number one for an original to see if it was an injector but still have the same issue. I’m thinking it’s a PCM problem. I have just changed the block for a reconditioned lump from transit tech. Didn’t have this problem when it came in. .[-o<
Hi
This car is still "under work". The owner took it home to leave it to his garage in Denmark (we are in Sweden). But nothing have happened yet.
He is planning on swapping the whole engine.
So, you have changed the block? Not the cylinder head? Did you do a compression test?
And the problem still remains?
And thats why you think it is a engine ECU thing?
We would be thankfull if you would tell us how you eventually fix the problem.
Kylesagar
Posts: 2
Joined: 14 Jan 2022, 08:01
Location: High wycombe
My Cars: Clio 197
Citroen relay
x 1

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Kylesagar »

Hi, so yes engine had a bearing failed (full of metal shavings in oil/filter housing & knocking very badly) now all back together with a reconditioned block. I have cylinder 1 signal injector locked closed. Have been doing wiring tests today nothing so far. Try me again in a week or so. Another couple of tests tomorrow electrically. Will then compression test if nothing doing,
Cheers
Maraspower
New User
Posts: 1
Joined: 03 Apr 2023, 08:44
Location: Norway
My Cars: Peugot Boxer 3

Re: Boxer II Runs on 3 cylinder fault code P0303

Post by Maraspower »

Hello, i have the same problem, can you tell me what was in your case?
