C5 break mk1 2003 lexia height adjustment values

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
ml11ML
(Donor 2021)
Posts: 53
Joined: 07 Oct 2020, 10:22
Location: Slovenia
My Cars: 2003 C5 Break 2.2 HDI
x 5

C5 break mk1 2003 lexia height adjustment values

Post by ml11ML »

Hi,

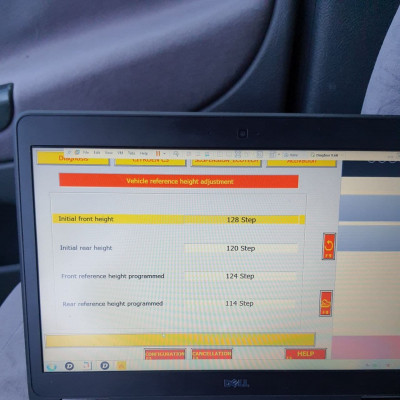

I tried messing around with the "Vehicle reference height adjustment" menu in lexia on my C5 (yes I did read all about how you should not do anything related to suspension height but I went and tried it anyway...) and it didn't want to accept any number slightly higher or lower than the initial settings and also didn't accept the programmed numbers that were in it before I messed with it which I think is very strange because how were they able to be set in the first place if it doesn't like those numbers?? In the picture are the values that I got the car with before I started doing anything.

It has reset itself to be the same as the "Initial front/rear height" values which just made the car a tiny bit higher than it was before.

Can anyone tell me the correct range of numbers I can write in that menu and have it accept the new values? Or is there some strange way to input them that I'm not aware of like maybe adding some value to the original for example 128 + 10 or some silly thing like that? Or maybe the clone lexias are just incapable of altering this setting and default back to the standard settings every time you try to write in your own?

Any info on this will be appreciated.
