C5 Mark iii 2009 2.0 hdi automatic

Post by chasqui »

Was driving on the motorway doing just under 70 mph when the car threw a fault message at me. Loud boing followed “gearbox faulty” message and service light came on.

After a few seconds the gearbox faulty sign disappeared but the service light remained,

I noticed the snowflake sign and the S symbols flashing and the dashboard showed D6 indicating I was still in 6th gear.

The car drove ok but upon deceleration I noticed it remained in 6th gear. I tried manually shifting down but nothing happened.

I managed to limp home. When stopped I managed to shift into reverse but car jumped as it went into gear.

Putting it in Drive caused it to go straight into 3rd gear.
So, it will go forward but doesn’t shift out if 3rd gear though it will go in reverse, albeit jumping into gear.

Any ideas? I will try read off any faults with Diagbox tomorrow.

A few months ago a similar problem which caused the engine to cut out and the car to give the gearbox faulty message was due to a faulty engine compartment fuse box. This was replaced with a new one and this cured that fault.

The vin number is VF7**************[VIN obfuscated, can be read by forum staff]

Thanks in advance!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 Mark iii 2009 2.0 hdi automatic

Post by GiveMeABreak »

There's a load of codes for these - so if you can get the fault codes tomorrow from Diagbox, I should be able to get some info for you.
Please Don't PM Me For Technical Help

Marc
chasqui
(Donor 2020)
Posts: 58
Joined: 02 May 2009, 12:02
Location:
My Cars:
x 3

Re: C5 Mark iii 2009 2.0 hdi automatic

Post by chasqui »

So this morning I plugged in diagbox.

Results as follows

ECU:
P0338 and P0337 engine speed signal. INTERMITTENT
P1351 Pre heat relay circuit. INTERMITTENT

GEARBOX:
P0727 Fault on engine speed info not received by the CAN (Engine ECU). PERMANENT
Also worth mentioning Converter status was “Locked up or Closed” in Ratio 6
SUSPENSION:
U1208 Fault invalid data from the engine ECU INTERMITTENT
U2005 Triggering (vehicle speed receipt anomaly) PERMANENT

DEFLATION DSG
U1213 Fault in the vehicle speed information received by the CAN from the ABS or ESP ECU. PERMANENT

I took all the codes before starting the engine this morning. When I did, the car runs normally and no faults or lights in the dashboard! Though I have not cleared any of the faults mentioned.

So, wild guess, some dodgy sensor somewhere to do with the speed reported by the gearbox?

Thanks in advance
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 Mark iii 2009 2.0 hdi automatic

Post by GiveMeABreak »

Ok, so may be better news initially in that all these faults with the exception of the pretty standard glow plug fault are related to speed anomalies. As the speed data is essential for many components (Engine ECU, Suspension, ABS, Gearbox etc.), a fault here will have a knock-on effect.

The most likely suspect is the Engine Crankshaft Sensor / Speed Sensor. In simple terms, it's a Hall effect sensor that, as the teeth of the crank pass the magnetic tip of the Crankshaft Speed Sensor, it sends a low or a high wave (voltage) when it detects either a tooth or a gap in the Crankshaft. So P0337 and P0338 are saying there are too many low signals one minute and too many high signals the next - which would indicate that the sensor is knackered and sending the wrong data.

I would not ignore this as you have seen, although the car may run ok for now, this will likely get worse and can result in bigger problems. It certainly won't do the gearbox any good or the engine with all the jerking that may increase.

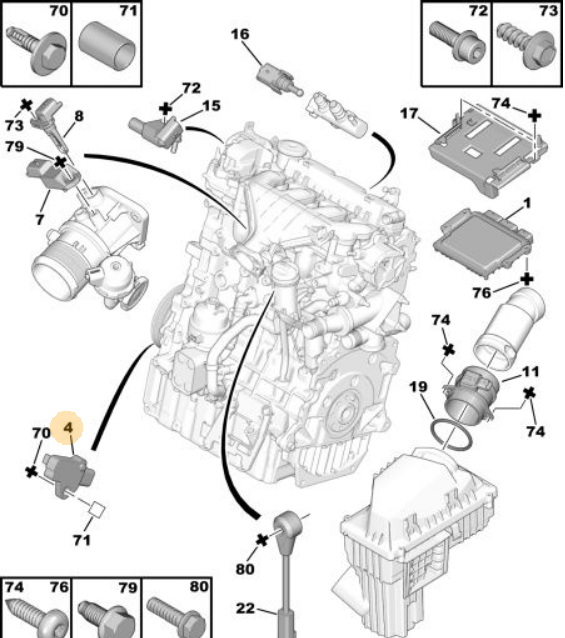

The Sensor is located at (4) below, and is part number: 1920GJ, and costs £62.14 direct from Citroen inc. VAT if you want an original one.
