Citroen C5 steering wheel alignment

Post by Claire456 »

So I took my Citroen C5 to a garage to have it's steering wheel alignment done and the guy couldn't do it.

Since then I have had the wheels aligned properly as they were so far out the steering wheel was nearly a quarter of a turn out. I'm thinking this might have been why it wouldn't do it. That or the fact that maybe he didn't do it properly. I was stood next to him and I'm sure he didn't follow the instructions properly.

The trouble I'm having now is finding someone with the right diagnostic tool to do the job.

Can anyone tell me what I need. Will I have to ask the garage what they have?

Also my other problem is that it's not got an MOT now so I can't drive it anywhere to get it done unless I book it in for an mot and ask them to do the steering first.

It does have some other problems too but if I can get it MOT'd then I'll come back with those. Fingers crossed. Thanks.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Citroen C5 steering wheel alignment

Post by GiveMeABreak »

You are allowed to drive the car to and from a garage for work to be done - BUT you will have to prove this if stopped - so you'll need to have an appointment / officially booked it in at a garage first.

C5 Tracking can be difficult to do if they do not know what they are doing. My own Citroen Tech had to go to ATS to tell them how to track a C5 X7 properly. The other issue I am aware of is that some equipment - specifically the tracking data for the C5 was just plain incorrect. They tend to get the wrong models and years mixed up and this can cause problems. It is also essential that laser tracking equipment is regularly calibrated - I got my local ATS machine closed down for 6 weeks - when I went through a set of new tyres in a month! Turned out the machine was well off.

Just make sure whoever does it knows the correct year:

As a Guide:

C5 MK I up to 2004
C5 MK II (or facelift) from 2004 to 2007
C5 MK III (or X7) from 2008 on

Each of these have different axle geometries.

You may want to give your local Citroen dealer a ring and see how much they will charge to do it or who they recommend that can do it properly. If you have a steering alignment issue too - it may be better to get Citroen to do it anyway - as the tracking will likely have to be done again afterwards.
Please Don't PM Me For Technical Help

Marc
411514
(Donor 2017)
Posts: 421
Joined: 14 Dec 2010, 15:26
Location: Sheffield, Uk
My Cars: Citroen C5 2.0 Hdi 2003
x 39

Re: Citroen C5 steering wheel alignment

Post by 411514 »

GiveMeABreak wrote: 24 Nov 2020, 11:21 You are allowed to drive the car to and from a garage for work to be done - BUT you will have to prove this if stopped - so you'll need to have an appointment / officially booked it in at a garage first.
No you aren't.

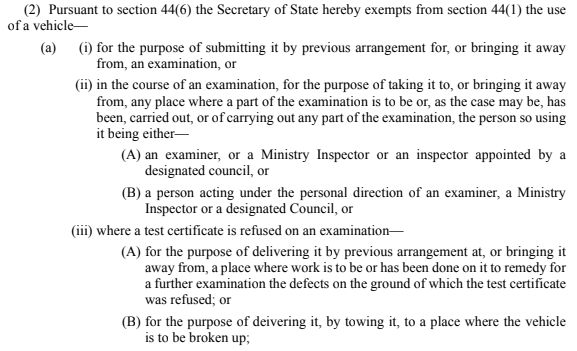

You are presumably misstating the specific exemption to MOT requirement provided by Paragraph 6(2)(a)(iii) The Motor Vehicles (Tests) Regulations 1981, which is limited to taking the vehicle for work to remedy MOT fail defects.
