Peugeot belts part no. help pls.

Post by discv »

I've got to do a cam and auxiliary belt kits change. I'm getting conflicting part no. from the Gates catalogue.

Peugeot 307 SE, manual with A/C. 2003
Vin- VF3**************[VIN obfuscated, can be read by forum staff]
Engine 1.6 16v petrol TU5 JP4- FX3V2010458.

Please could I have PSA part no. for both complete kits
Many thanks
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37015
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Peugeot belts part no. help pls.

Post by GiveMeABreak »

Ok, so timing:
There are 2 kits available and here, I am using the latest replacement parts numbers and not the older original part numbers as these have been superseded.

There is the genuine Citroen Kit and then a cheaper Citroen kit for older cars - so up to you what you want - I have included PSA part numbers and prices for each as of today inc. VAT.

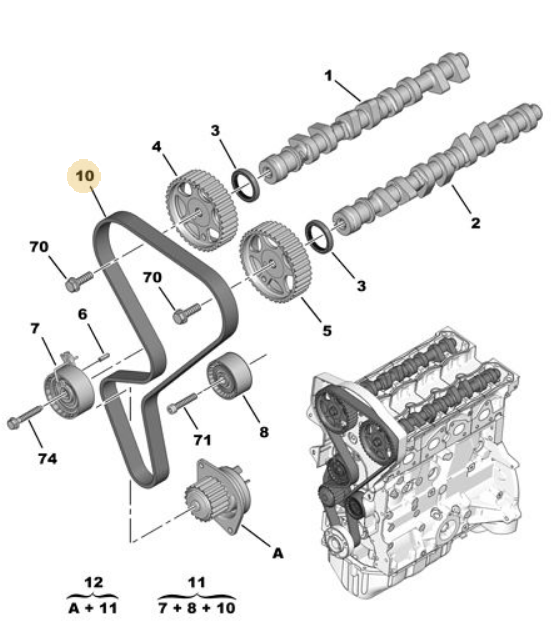

Kit (11) includes: Timing Tensioner roller (7), the Retractor Roller (8) and the Timing Belt (10).

Original Part: 1643637980 £152.35
Cheaper Part: E118433 £87.80

Kit (12) includes all the components in kit (11) and also the Water Pump & Gasket

Original Part: 1643639680 £182.35
Cheaper Part: 1609121280 £123.74

As for the Alternator Belt (which I assume you want too)

Original Part: 5750VT (for 70A, 80A, 80A+ or 90A alternators) £35.66
Cheaper Part: 1612552380 £28.57
Last edited by GiveMeABreak on 05 Nov 2020, 15:36, edited 1 time in total.
Please Don't PM Me For Technical Help

Marc
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Peugeot belts part no. help pls.

Post by discv »

Many thanks for this info. It is proving almost impossible to be certain of which is the right kit. It seems that the engine no. has an effect.
I'm taking a punt at a Gates kit KP 25581 XS, which is one of the kits that the Gates catalogue shows up- and the seller- CarParts in Motion guarantee is the correct part.
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37015
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Peugeot belts part no. help pls.

Post by GiveMeABreak »

The timing belt alone for your specific vehicle is part: 9829304780 - I only included the kits as I think that's what you asked for originally. :)
Please Don't PM Me For Technical Help

Marc
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Peugeot belts part no. help pls.

Post by discv »

I now think that something in the cam belt kit c/w pump, changed at engine no. 1806404
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37015
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Peugeot belts part no. help pls.

Post by GiveMeABreak »

The part numbers are correct for your specific vehicle and build date (18th August 2003). The kits were the same part for your vehicle up to 5th June 2005. Then the kits changed from 6th June 2005 to new part numbers - however as far as the actual timing belt itself goes, it is the same part for all years.

The engines only changed slightly for the different Euro standards and were tweaked for power / emissions most likely.
Please Don't PM Me For Technical Help

Marc
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Peugeot belts part no. help pls.

Post by discv »

15581 v 25581.jpg
Perhaps you can see how I'm getting confused!
The attached pic. is lifted from the Gates catalogue, showing the 2 options of cam kits-
KP15581xs [ up to engine 1806404]
and KP25581xs. [from engine 1806405]

My 2003 is showing an engine no. FX3V2010458

It would appear [as you say] that the belt and pump are the same, but it seems that the tensioner pulleys have a difference.

I have ordered 25581- and we shall see!

By the by- my reason for not buying 'genuine' is that I recently fitted a cam kit to my C4GP 1.6 Hdi from a main stealer. The contents of the box was a Gates/Dayco mixture
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37015
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Peugeot belts part no. help pls.

Post by GiveMeABreak »

I can't really help you with aftermarket / other manufacturer catalogues / part numbers as I hope you can appreciate. I'll only provide OEM ones as that guarantees the correct one. But best of luck.
