The 12v socket at the rear seems to have stopped supplying power as my coolbox wouldn't work when plugged in but did from the 12v socket between the two front seats.

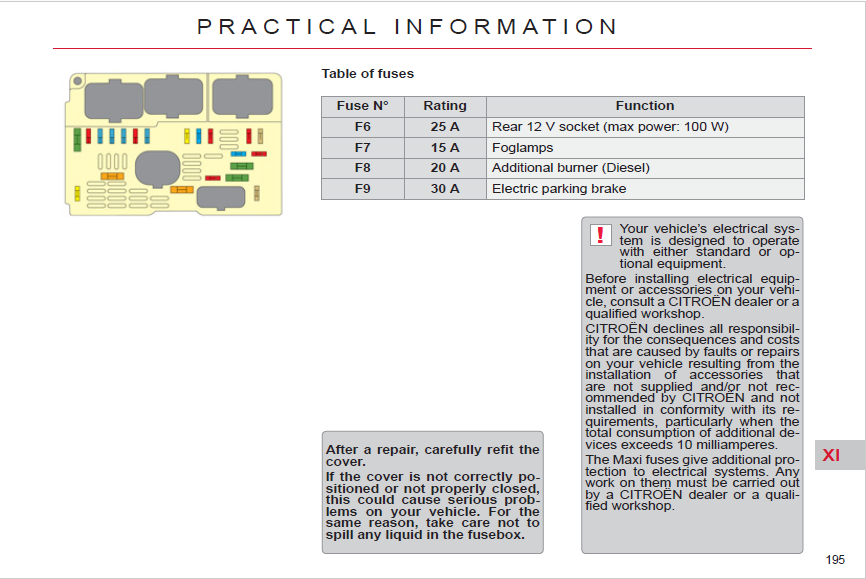

My first thought was to check the fuse but this is where the problem arises. Page 195 of the handbook suggests I should check F6.

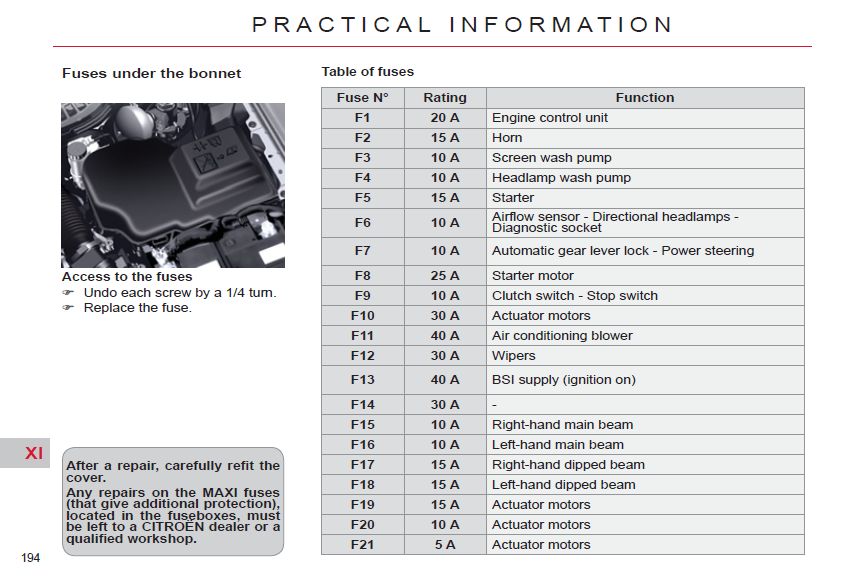

The text seems to indicate the fuse is in the main fusebox there. But the illustration actually refers to the table on the opposite page. The values of the fuses there line up with the large table which leaves me wondering where these four fuses are actually located.
I wondered whether they might be maxi-fuses but the values are rather low for that and then I saw what may be a secondary fusebox.
So, is that another fusebox which is not mentioned anywhere that I can see? If it is, how do I release it so that I can take the cover off to check this fabled fuse? And if it isn't, where the hell are these other four fuses?
X7 Tourer rear 12v socket problem
Moderator: RichardW
- Paul-R
- Donor 2023
- Posts: 6931
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1378
X7 Tourer rear 12v socket problem
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: X7 Tourer rear 12v socket problem
Yes, fuse F6 is in the fuse box at the battery outlet shown in your last picture - the vertical fuse box with the red cover. It's called the BFDB (Boîte à Fusibles à la Débouché de la Batterie).
Yous should be able to unclip the red cover shown.
Yous should be able to unclip the red cover shown.
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6931
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1378
Re: X7 Tourer rear 12v socket problem
Not without removing the complete box unfortunately - there's another plastic clip at the lower (hidden) end of the red cover. I have tried to unclip just the top edge but that wasn't enough. The box has to come out first. Any removal procedure available?
Or maybe a parts diagram which might show how it's held in?
Or maybe a parts diagram which might show how it's held in?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: X7 Tourer rear 12v socket problem
No, nothing specific.
I’m sure I took mine off to check a fuse on the MK II and don’t recall any issues, but I can’t remember now.
I’m sure I took mine off to check a fuse on the MK II and don’t recall any issues, but I can’t remember now.
Please Don't PM Me For Technical Help
Marc
Marc
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: X7 Tourer rear 12v socket problem
Paul
I've got the battery out of my X 7, I'll have a look after this rain shower.
Kenny
I've got the battery out of my X 7, I'll have a look after this rain shower.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: X7 Tourer rear 12v socket problem
Paul,

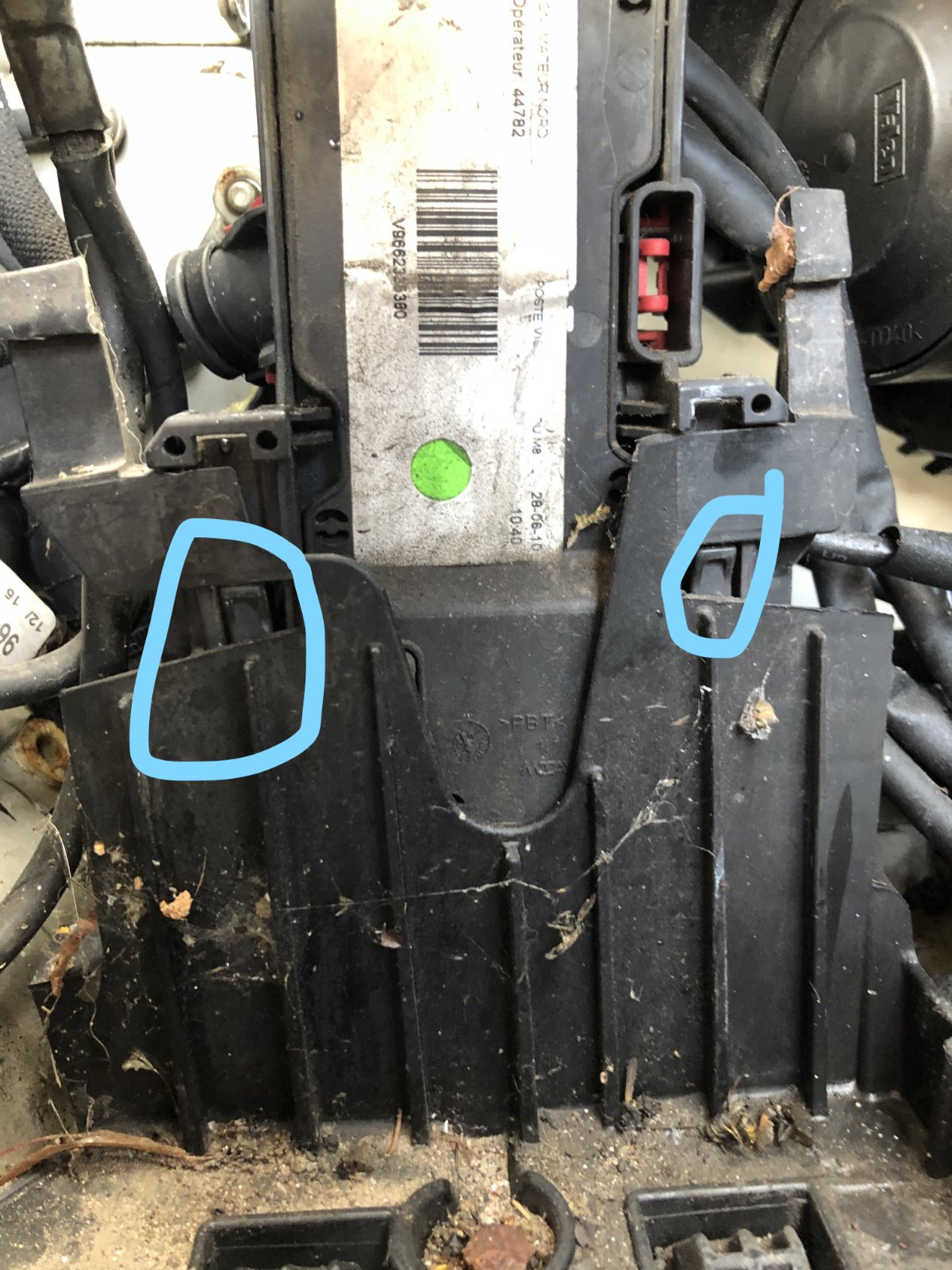

You will have to remove your battery then push in the 2 clips circled in blue and the box slides out.
