Xantia side airbag warning light
Moderator: RichardW
-
- Posts: 6
- Joined: 02 Nov 2016, 00:08
- Location: London
- My Cars: Xantia II Exclusive 2.0i Auto Estate '99
wish I still had:
BX19TZi '91
Renault 5 '80
Renault 4 '78
Dyane '75 - x 3
Xantia side airbag warning light
I have a problem with my side-airbag warning light on a ’99 2.0i Exclusive. It's been intermittent for some time but lately more persistent. I get error code 06 with the Sykes ACR4 reader indicating ‘warning light malfunction’ on RH side-airbag. Tried all sorts: under-seat connectors, substituting airbag with appropriate low ohm resistor, even tried alternative good secondhand main airbag ECU module, all to no avail. Just wondered if anyone had any thoughts on this or maybe could point me towards the wiring diagram for the Autoliv 550 74 09 00 system on the Xantia. Suspect it must be a wiring fault but where? Many thanks in advance, Charles
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Xantia side airbag warning light
Pop your VIN up - there are a lot of different diagrams according to options including multiple airbag combos, so need to get the correct one for you.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 13745
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3008
Re: Xantia side airbag warning light
On a Xantia I had the side impact ECU (L/H) had failed. Replacing it cleared the fault. I am NOT saying this was the same problem as yours, but it is something to be aware of.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
-
- Posts: 6
- Joined: 02 Nov 2016, 00:08
- Location: London
- My Cars: Xantia II Exclusive 2.0i Auto Estate '99
wish I still had:
BX19TZi '91
Renault 5 '80
Renault 4 '78
Dyane '75 - x 3
Re: Xantia side airbag warning light
Thanks guys, VIN is VF7**************[VIN obfuscated, can be read by forum staff] - it's a Sept '99 2.0i Exclusive Auto Estate - I think it just has the two front airbags, plus side airbags in the front seats.
re. ECU, presumably it is is just the main centre ECU module below the centre console?
Charles
re. ECU, presumably it is is just the main centre ECU module below the centre console?
Charles
- xantia_v6
- Forum Admin Team
- Posts: 9094
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 835
Re: Xantia side airbag warning light
There are also side airbag ECU/trigger units, one inside each 'B' pillar, they are accessed after removing the front seat belt reel.
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Xantia side airbag warning light
Here's the Airbag Circuit for your Xantia with your specific options / fittings.
Most Equipment Codes can be found in numerical order on our Wiki here:
https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

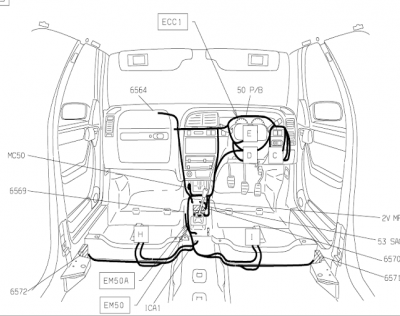

Here is a physical layout of some of the harnesses:
Most Equipment Codes can be found in numerical order on our Wiki here:
https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes
Here is a physical layout of some of the harnesses:
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 6
- Joined: 02 Nov 2016, 00:08
- Location: London
- My Cars: Xantia II Exclusive 2.0i Auto Estate '99
wish I still had:
BX19TZi '91
Renault 5 '80
Renault 4 '78
Dyane '75 - x 3
Re: Xantia side airbag warning light
Absolutely brilliant! Thank you to all, will have a good poke around and report back.
-
- Posts: 6
- Joined: 02 Nov 2016, 00:08
- Location: London
- My Cars: Xantia II Exclusive 2.0i Auto Estate '99
wish I still had:
BX19TZi '91
Renault 5 '80
Renault 4 '78
Dyane '75 - x 3
Re: Xantia side airbag warning light
Good news problem solved - it was indeed the RH side-airbag trigger module - managed to pick up a good second hand unit from a 2001 model Xantia. Tempted to look inside my faulty original unit, see if anything looks wrong, my suspicion is a dry joint maybe? Thanks again for all assistance with this.
-
