X7 lost Satalites

Post by Trainman »

Well, here we are again, the X7 satnaff isn't working, so figuring out that the logical thing to do after making sure the earth was still good, was to replace the aerial booster, does anyone have any idea where its located?

its a 2010 Exclusive Tourer with Rneg

thanks in advance
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: X7 lost Satalites

Post by GiveMeABreak »

Steve, I don't have your VIN for the C6. Pop it up and I'll see what system you have.
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: X7 lost Satalites

Post by Hell Razor5543 »

Marc, Steve mentioned X7.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: X7 lost Satalites

Post by GiveMeABreak »

That's me looking at your bottom signature again :roll:

Thank you James.

Leave it with me Steve.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: X7 lost Satalites

Post by GiveMeABreak »

Trainman wrote: 03 Aug 2020, 19:20 Well, here we are again, the X7 satnaff isn't working, so figuring out that the logical thing to do after making sure the earth was still good, was to replace the aerial booster, does anyone have any idea where its located?

its a 2010 Exclusive Tourer with Rneg

thanks in advance
Steve, before you do any faffing, has the car been on lockdown for any length of time?

If so, it can take a a journey of up to 10 minutes of actual driving - (engine running and standing still won't cut it), for the satellites to lock in again after a period of innactivity.
Please Don't PM Me For Technical Help

Marc
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 lost Satalites

Post by Trainman »

Marc,

Not really, though the battery did go flat, however it’s had a few good runs since, it’s only the last few days I’ve noticed it
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: X7 lost Satalites

Post by GiveMeABreak »

Ok, so one thing to do too - make sure you have unchecked the synchronise time with GPS signal option. Since the GPS N week rollover happened this can cause not only the time to be incorrect, but can affect the positioning too, leading to incorrect data. You must switch this option off.

As for the Aerial, the GPS Aerial is shared with the GSM of the services module and is on the roof directly - the amplifier module is only for the radio aerials not the GPS.
Please Don't PM Me For Technical Help

Marc
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 lost Satalites

Post by Trainman »

Cool, thanks I’ll have a check in the morning
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 lost Satalites

Post by Trainman »

Right, had a look at the clock settings this morning, the time and date are correct and the box is NOT ticked, and its still the same, next step I presume is to change the aerial.
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: X7 lost Satalites

Post by GiveMeABreak »

A few things I would suggest.

1) Test the internal GSM phone - does that work (as they use the same aerial)?
2) Before attacking the aerial on the roof, you can purchase a cheap GPS aerial that you can plug into the back of the NG4 (blue connection is the GPS) and stick it on the dash temporarily, then go for a spin. If the satellites come back you'll know it's an aerial issue - if not, then it may be internal to the NG4 unit Steve.
ng4 gps.PNG

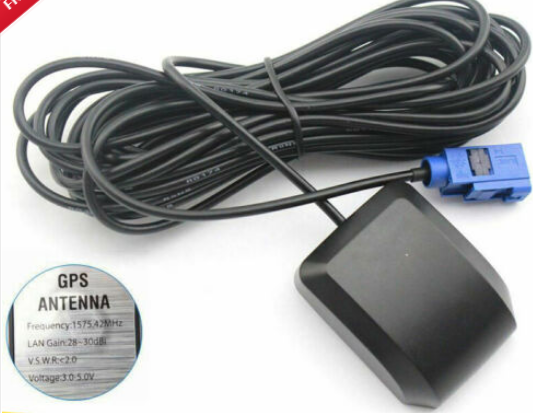

Something like this for £6.49:
gps aerial.PNG
https://www.ebay.co.uk/itm/Fit-For-VW-R ... Sw35Be~H5m
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: X7 lost Satalites

Post by GiveMeABreak »

Also, to check how many satellites are visible, Press and hold the "SETUP" button, then Select GPS coverage. That will tell you how many satellites it can see.

There is another procedure to reset the system to rule out a software problem, but of course it will mean loss of the your settings (station settings, audio settings, navigation history, paired telephones, telephone contacts, etc.). This clears out the list of satellites and resets the software.

To reset the audio-navigation to zero, follow the procedure below:
  • Press buttons 1-3-5 simultaneously
  • Wait to hear an audible beep
  • Release the buttons 1-3-5
  • Allow the audio-navigation system to restart
Carry out a road test of 5 km using your cheap GPS aerial - if it picks up the satellites, then it will be your original aerial cable or aerial. If it still does not locate any satellites after this, then the unit may be faulty.
Please Don't PM Me For Technical Help

Marc
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 lost Satalites

Post by Trainman »

Thanks Marc,

I’ll try the reset first, I’ve already done a factory reset, but that didn’t work.
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 lost Satalites

Post by Trainman »

Did the reset today and it’s the same, replacement aerial ordered.
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 lost Satalites

Post by Trainman »

replaced the antenna this morning and the nav is working again.

Rather than take the headunit out and start faffing, I cut the end off the new antenna and plug off the faulty roof antenna and spliced the 2 together as a temporary fix. I'll get a proper replacement sorted soon.
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
