2007 c5 suspension

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2007 c5 suspension

Post by GiveMeABreak »

Pop your VIN up so I know which system you have and I'll see if I can put something up.
Please Don't PM Me For Technical Help

Marc
citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

VF7**************[VIN obfuscated, can be read by forum staff] Thanks for your help
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2007 c5 suspension

Post by GiveMeABreak »

Here's the internals of the BHI, which is what I think your were after:
C5 MK II BHI.PNG
ReferenceDesignation
4Anti-pulse accumulator, flow regulator
5overpressure valve
6Hydraulic pump air intake aperture
7Hydraulic pump shaft
8Hydraulic pump piston
9Delivery valve
10Chamber containing compressible gas
Please Don't PM Me For Technical Help

Marc
citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

Thanks do you have anything that shows the 4 solenoid valves and on the other side of this ?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2007 c5 suspension

Post by GiveMeABreak »

I don't, but here is a complete stripdown of the earlier C5 BHI:

Please Don't PM Me For Technical Help

Marc
citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

yes i watched that pretty much i dentical to mine i think i will clean the motor and pull the diaphram and check it put it back together and give it another go, my other option is to start swopping stuff from my other car but i dont really wont to go that root.When you look at itin that picture there is not really that much to go wrong with the pump!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2007 c5 suspension

Post by GiveMeABreak »

The only other thing I can think of is the firmness regulator at the front. I know that constant sinking of the rears on a C6 and an X7 is due to a faulty valve on the rear hydraulic block and that can be cleaned up and repaired where it gets stuck. So it's possible you may have a similar issue on the front regulator with your C5.
C5 MK II firmness Reg.PNG
Key:

F: Soft status, electrovalve not supplied
G: Firm status, electrovalve supplied
ReferenceDesignation
"a"Towards the BHI
"b"Towards the right hand suspension
"c"Towards the reservoir return
"d"Towards the left hand suspension
22Hydractive sphere 3+
23Electrovalve slide valve
24Hydraulic isolation slide valve

G: Firm status:
Solenoid valve supply
Movement of the electrovalve slide (23), freeing the reservoir return and blocking the hydraulic supply coming from the BHI
The bottom part of the slide (24) is at the pressure of the hydraulic fluid reservoir. The top part of the slide (24) is at the pressure of the hydractive 3+ sphere
The difference in the pressure at each end of the slide (24) causes its movement. In its new position the slide (24) blocks the passage of hydraulic fluid between the RH suspension and the LH suspension. The hydractive 3+ sphere is isolated from the suspension circuit

F: Soft status:
Stopping of the supply of the electrovalve
The slide (23) moves under the effect of the supply pressure of the BHI
The return to the hydraulic fluid reservoir is blocked. The pressure under the lower part of the hydraulic isolation slide valve is identical to that of the BHI
The upper part of the hydraulic isolation slide valve is identical to that of the BHI. The slide (24) moves under the action of the integral spring
Flow of hydraulic fluid between the right hand and left hand suspension is possible. The hydractive 3+ sphere communicates with the suspension circuit
Please Don't PM Me For Technical Help

Marc
citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

Sounds like a plan I will read up on how to get the where off as it looks a tadge awkward!
citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

an update for anyone who hasnt lost the will to live! despite managing to get my chain wrench on the center sphere it was not moving, so i made a new tool using an oil filter wrench and broke it ,plan c then was to remove unit complete which i have managed!! the trick was to losen off the anti roll bar and with a bit of jiggery pokery it will come out i am going to attempt to strip it and see if there is any obvious problem but in the mean time if anyone has a spare block please let me know!
citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

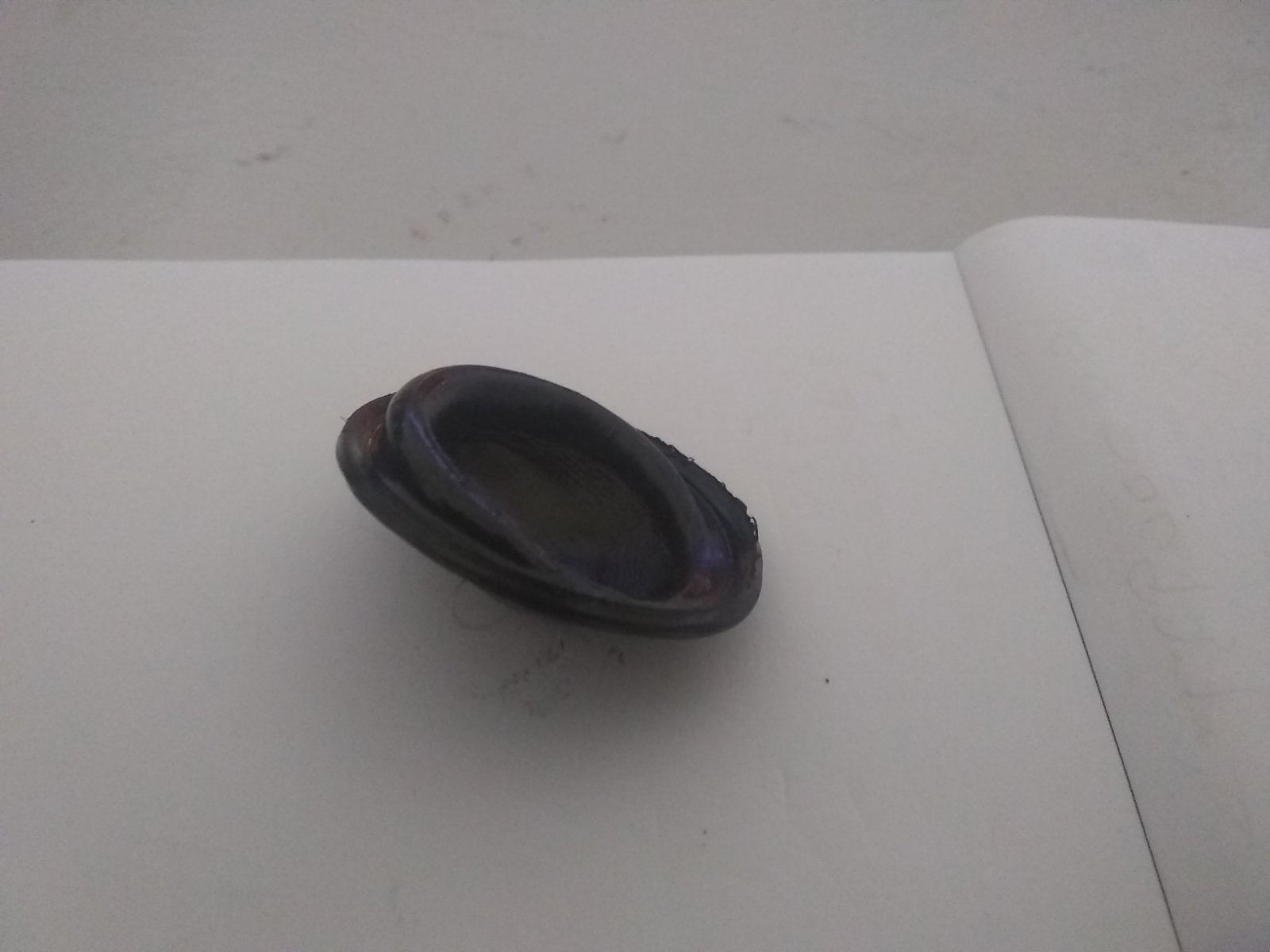

i wonder could this be the problem? this is the rubber diaphram at the end of the pump very much out of shape compared to the video i would love to share some pictures but cant remember how!
User avatar
myglaren
Forum Admin Team
Posts: 25362
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: 2007 c5 suspension

Post by myglaren »

citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

well i have fixed it! as of 6pm it is sat normally in the garage as to what was the problem i dont know the only item i found defective was the the diaphram which i reshaped using hot water,and the only other item replaced was the center sphere. the suspension initially started to sink as before but after some arobics it slowed the sinking down and then out of curiosity i hit the sport button and the sinking went away so i cycled it up and down and put it back into normal and it has been fine ever since so tomorrow i will put it back together and give it a test run Citroens dont you just love them!!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2007 c5 suspension

Post by GiveMeABreak »

By switching to sport mode you'll have triggered the electrovalves in the firmness regulators, so I'm wondering if they became stuck and this has possibly freed it. Fingers crossed that this is it, but if it is - then it's likely the valve is sticking and that is causing the fluid return to the reservoir.
Please Don't PM Me For Technical Help

Marc
citroen7
Posts: 151
Joined: 09 Jun 2006, 10:29
Location: northern ireland
My Cars: 73 stag,86 bx gt 89 bxgti 90 bxgti 4x4 91 metor auto 97 p38 2004 c5 2.0 vtr 2006 c5 estate 1.6
x 1

Re: 2007 c5 suspension

Post by citroen7 »

It could well be marc there was nothing obvious when i stripped it plus the addition of a new sphere which incedently is for an x7 but the guy i got it from said it would be fine,spent nearly an hour on the phone with him he has pumps available for all citroens and over 2000 items in his ebay shop of redundant citroen stock,let me know if it ok to post a link.
