Vacuum parts

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Vacuum parts

Post by GiveMeABreak »

So first picture is the brake vacuum hose that runs to the inlet manifold. This is used to supply the brake servo and is used for the braking assistance when you hit the brake pedal. It has nothing to do with your engine performance.
Please Don't PM Me For Technical Help

Marc
rrijken
(Donor 2020)
Posts: 56
Joined: 29 Mar 2020, 04:39
Location: Nakatsu Japan
My Cars: Citroen C5 X7 tourer 2009
x 2

Re: Vacuum parts

Post by rrijken »

Thanks Marc, do you however have the part number for the brake servo vacuum hose? Maybe also for the breather hose?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Vacuum parts

Post by GiveMeABreak »

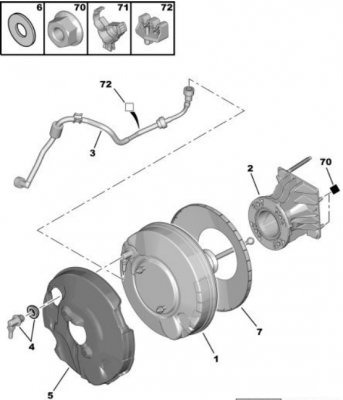

The Brake Servo Hose (3) is part: 4578H7, costing £54.98 inc. UK VAT for reference.
Brake Servo.PNG
I'm not sure which other hose you're referring to, can you be more specific?
Please Don't PM Me For Technical Help

Marc
rrijken
(Donor 2020)
Posts: 56
Joined: 29 Mar 2020, 04:39
Location: Nakatsu Japan
My Cars: Citroen C5 X7 tourer 2009
x 2

Re: Vacuum parts

Post by rrijken »

Marc, thanks. Took off the hose the other day and blew on the manifold side, sometime I can blow, sometimes I can't so the valve is stuck sometimes and thus this might be the leak I am looking for?

Second line probably is the first picture you posted. Can you tell where the canister is located? Will look at it when the rains finally stop here.

Robert
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Vacuum parts

Post by GiveMeABreak »

The canister itself is near the fuel tank, but I wouldn't be worrying about that to be honest. To get to the electrovalve though, you need to remove the motorised butterfly housing - and if doing that, it is recommended that the seal is replaced when refitting.

Are you really sure you need to be doing all this though? Have you had it read by Diagbox yet to check for faults? You'll find that on these all the electrovalves are ECU controlled. Blowing down a pipe is really not going to give you a definitive answer as to a leak to be honest as the control units can leave the valves in different positions depending on conditions.

A thorough diagnostic may be a better and ultimately less expensive way to start if if can indicate a problem.
Please Don't PM Me For Technical Help

Marc
rrijken
(Donor 2020)
Posts: 56
Joined: 29 Mar 2020, 04:39
Location: Nakatsu Japan
My Cars: Citroen C5 X7 tourer 2009
x 2

Re: Vacuum parts

Post by rrijken »

Read it with Lexia several times, no faults, also none in the journal that's why I am left with just changing stuff around to see if it improves....
Electrovalve is easily accessible (see my pictures).... How can I test this valve?
rrijken
(Donor 2020)
Posts: 56
Joined: 29 Mar 2020, 04:39
Location: Nakatsu Japan
My Cars: Citroen C5 X7 tourer 2009
x 2

Re: Vacuum parts

Post by rrijken »

Hi Marc,

You have the part number for the seal under the throttle body for me? Or can I just use a liquid seal here?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Vacuum parts

Post by GiveMeABreak »

It's the intake valve seal, part: 0348V5 and no, I would not use a liquid seal.

Remember if you are removing the motorised throttle housing, you'll need to wait 15 minutes after you last switched the ignition off and before disconnecting the battery (BSI Reset / Battery Disconnect / Reconnect Procedure) to allow the various ECUs time to store all their parameters.
Please Don't PM Me For Technical Help

Marc
Post Reply
