My C5 V6 01 is not driving smooth anymore since a month now. I lost two coils in a week whenever I tried to drive the car in sports mode. Sometimes rpm does not go over 2000rpm in normal drive mode, but when I switch to manual and driven in first gear it works normal. Rpm fluctuate little bit when idle and exhaust does not sound normal. So I plugged the lexia first time to find out what causing the issue and it gives attached error message under injector and bsi. It also reported error in other section like aircon.
BSI Errors:
Permanent fault: Wheel emitter 1 battery worn
Permanent fault: Wheel emitter 2 battery worn

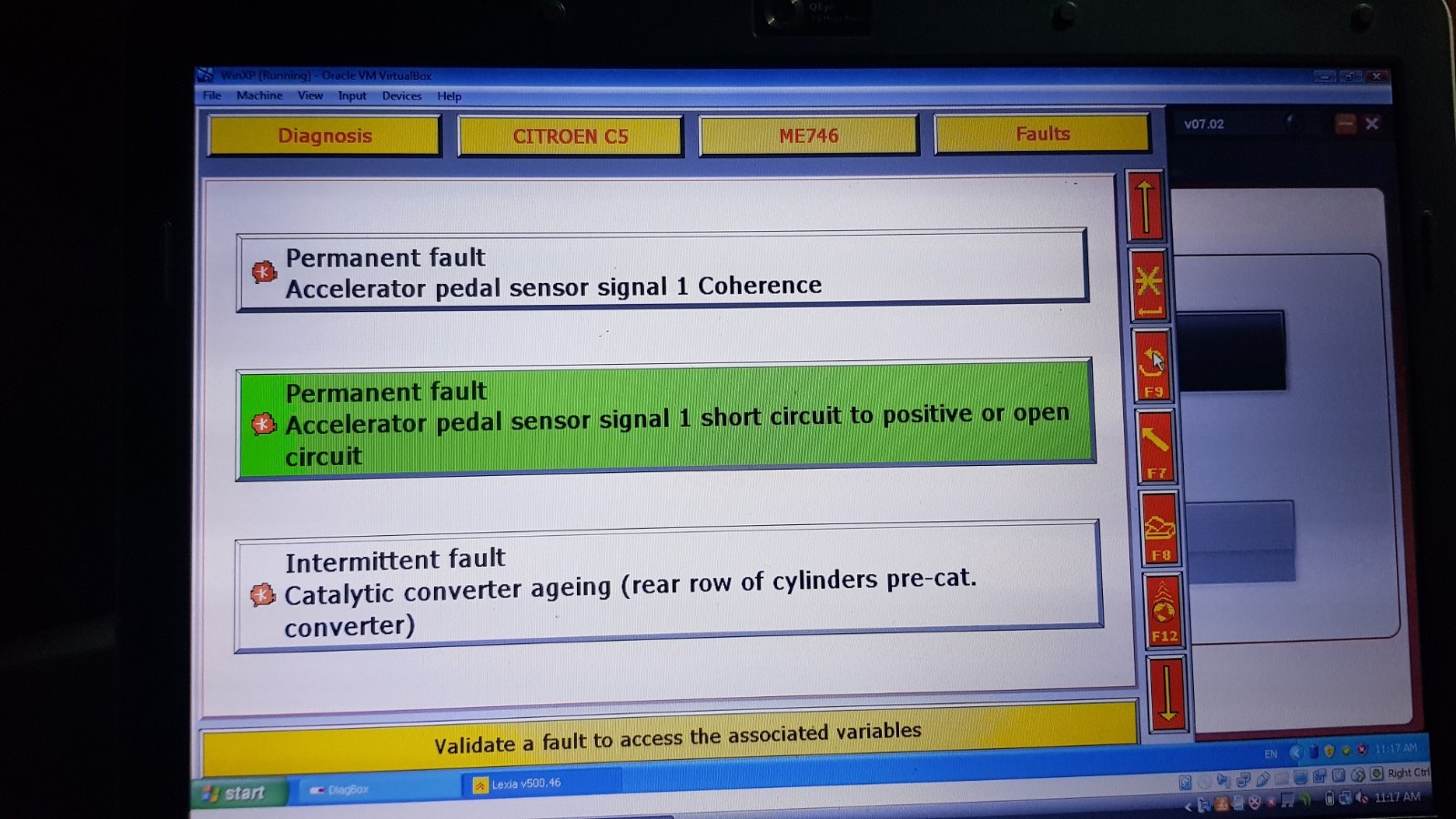

Injector Errors:
Permanent fault: Accelerator pedal signal 1 coherence
Permanent fault: Accelerator pedal signal 1 short circuit to position or open circuit
Intermittent fault: Catalyst converter ageing (rear pre-cat) - This has been there for more than 1 year now.
I had the pedal sensor error first time came up last year when the floor mate slide under the pedal. I cleared error code using generic obd scanner at that time.
Is the issue related to pre-cat ageing or something else is also causing this issue.
I reset the BSI but it still does not drive smoothly.
C5 does not drive properly
Moderator: RichardW
-
- Posts: 124
- Joined: 18 Jul 2017, 11:07
- Location: Australia
- My Cars: Citroen C5
- x 6
- GiveMeABreak
- Forum Admin Team
- Posts: 37403
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 does not drive properly
The first 2 are telling you that 2 of the Tyre Pressure Monitoring System Sensor batteries are wearing out. The batteries are not replaceable and are designed to last the life of the sensor (about 10 years), so if these are original you have done well out of them.
As for the accelerator pedal - you'll have one of 2 options fitted. You will either have an accelerator pedal with throttle position sensor built into the pedal or the versions where the accelerator pedal operates a mechanical wire to the throttle potentiometer in the engine bay. Either way, it thinks there is a problem with the sensor or the circuit.
As for the accelerator pedal - you'll have one of 2 options fitted. You will either have an accelerator pedal with throttle position sensor built into the pedal or the versions where the accelerator pedal operates a mechanical wire to the throttle potentiometer in the engine bay. Either way, it thinks there is a problem with the sensor or the circuit.
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6939
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1379
Re: C5 does not drive properly
The batteries aren't officially replaceable. It depends on how dirty you want to get with the sensors.
https://www.youtube.com/results?search_ ... ms+battery
https://www.youtube.com/results?search_ ... ms+battery
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
- Posts: 124
- Joined: 18 Jul 2017, 11:07
- Location: Australia
- My Cars: Citroen C5
- x 6
Re: C5 does not drive properly
If it does not cause any issue, i can ignore it.
- Paul-R
- Donor 2023
- Posts: 6939
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1379
Re: C5 does not drive properly
I suppose that depends on whether your annual vehicle test (you do have them?) includes the valves or not. And whether any error messages on the dash are a fail.
Things have tightened up in the UK and now any error or warning light is a fail. You can't even turn them off on later cars (about 2011 on I think) as having a warning system for tyre deflation is now a legal requirement.
Things have tightened up in the UK and now any error or warning light is a fail. You can't even turn them off on later cars (about 2011 on I think) as having a warning system for tyre deflation is now a legal requirement.
