How can I find out what I have here?
Moderator: RichardW
-
- (Donor 2020)
- Posts: 14
- Joined: 20 Jun 2020, 21:29
- Location: Walsall, West Midlands
- My Cars: Citroen Relay High Cube Box Van 1996
Re: How can I find out what I have here?
That was easy enough! Have donated for your hard work and thank you for any information I can get. Super job!
-
- (Donor 2020)
- Posts: 14
- Joined: 20 Jun 2020, 21:29
- Location: Walsall, West Midlands
- My Cars: Citroen Relay High Cube Box Van 1996
Re: How can I find out what I have here?
The sticker in the cab is an svtech plate. It just feels wrong all over though. We removed a 100kg Honda generator from the van and it's still 300kg over.
- GiveMeABreak
- Forum Admin Team
- Posts: 37015
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: How can I find out what I have here?
Ok, leave it with me and I'll dig out what I have.
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37015
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: How can I find out what I have here?
Ok, so these are the official weights for this vehicle body type (Cab)
(?): These weights may vary depending on the equipment
Bear in mind there are a multitude of options for these vans, they were supplies in all sorts of chassis designs, length, glazing and panel options. They were available as cabs, double cabs, vans etc.
So the above is what I have for your engine and cab type as listed. But the van could of been modified and hence why it may have a separate plate on to reflect the modifications from a custom coach builder.
But parts wise, this shouldn't come into it, assuming nothing mechanically has been altered on it. We can get the available PSA part numbers you may need from the VIN.
Cab chassis 18Q average wheelbase | |
Type code | 232K92 |
ENGINE | T8ADJ5T |
Unladen weight in running order (?) | 1635 |
- on the front axle | 1255 |
- on the rear axle | 380 |
Gross vehicle weight (GVW) | 3500 |
Maximum admissible load | |
- on the front axle | 1850 |
- on the rear axle | 2120 |
Gross train weight | 5100 |
Weight of the trailer within the limits of GVW | |
Trailer without brakes | 750 |
Trailer with brakes | 1600 |
Payload (including the driver) | 1865 |
So the above is what I have for your engine and cab type as listed. But the van could of been modified and hence why it may have a separate plate on to reflect the modifications from a custom coach builder.
But parts wise, this shouldn't come into it, assuming nothing mechanically has been altered on it. We can get the available PSA part numbers you may need from the VIN.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 14
- Joined: 20 Jun 2020, 21:29
- Location: Walsall, West Midlands
- My Cars: Citroen Relay High Cube Box Van 1996
Re: How can I find out what I have here?
Hi there, donation sorted. Could I have any weights data please. I need some part numbers for the clutch cable and speedo cable too if at all possible. Thank yoooou for your help.
-
- (Donor 2020)
- Posts: 14
- Joined: 20 Jun 2020, 21:29
- Location: Walsall, West Midlands
- My Cars: Citroen Relay High Cube Box Van 1996
Re: How can I find out what I have here?
Sorry... I can see more info now I have posted again. Your post was missing. Thank ye very much.
- GiveMeABreak
- Forum Admin Team
- Posts: 37015
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: How can I find out what I have here?
The Clutch Cable (5) was either part 2150T8 for the BVM ME Gearbox or 2150L3 for the BVM MG5T Gearbox (Long 1734)
Both these parts showing as no longer available from Citroen.
The Speedo cable (2) was part 6123J8 - again no longer available. These are the other bits: (Click the images to magnify)
Anything marked as NFP are no longer available from Citroen.
That doesn't mean you can't get parts - just not from Citroen any longer. You at least have their part numbers and may be able to use these to help locate aftermarket substitutions.
The additional problem here is the age of the vehicle and at a time when a lot of the data was not transferred over to the electronic system. Another issue it would appear is the type of gearbox fitted - this may vary according to original specs, so they list all the compatible boxes - so I have put the diagrams and the part numbers up as I can't tell you exactly which box you have.
Both these parts showing as no longer available from Citroen.
The Speedo cable (2) was part 6123J8 - again no longer available. These are the other bits: (Click the images to magnify)
Click on End Piece: Part Nos | Screw on End Piece: Part Nos |
That doesn't mean you can't get parts - just not from Citroen any longer. You at least have their part numbers and may be able to use these to help locate aftermarket substitutions.
The additional problem here is the age of the vehicle and at a time when a lot of the data was not transferred over to the electronic system. Another issue it would appear is the type of gearbox fitted - this may vary according to original specs, so they list all the compatible boxes - so I have put the diagrams and the part numbers up as I can't tell you exactly which box you have.
Please Don't PM Me For Technical Help
Marc
Marc
- xantia_v6
- Forum Admin Team
- Posts: 9053
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: How can I find out what I have here?
It is very likely that this vehicle is fitted with the MG5 gearbox, as it was the only gearbox fitted to the Citroen XM with the 2.5TD engine, The ME gearbox would not have been strong enough.
-
- (Donor 2020)
- Posts: 14
- Joined: 20 Jun 2020, 21:29
- Location: Walsall, West Midlands
- My Cars: Citroen Relay High Cube Box Van 1996
Re: How can I find out what I have here?
Epic info guys!! Off on a search for those bits now. Super job and I feel thoroughly helped!
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: How can I find out what I have here?
The recently added mechanics' handbooks will help in identifying both engine and gearbox.
Chris
-
- (Donor 2020)
- Posts: 14
- Joined: 20 Jun 2020, 21:29
- Location: Walsall, West Midlands
- My Cars: Citroen Relay High Cube Box Van 1996
Re: How can I find out what I have here?
Hi there, I need some part numbers for the three piece clutch on this van? Do I need to pay any more to find them out?
- GiveMeABreak
- Forum Admin Team
- Posts: 37015
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: How can I find out what I have here?
No, your contribution will cover you for up to 2 years. However, as I think I mentioned, data on this older engine is not as comprehensive as later models, as the part nunmbers are only internal PSA part numbers - which in a lot of cases here are no longer available given the age of the vehicle.

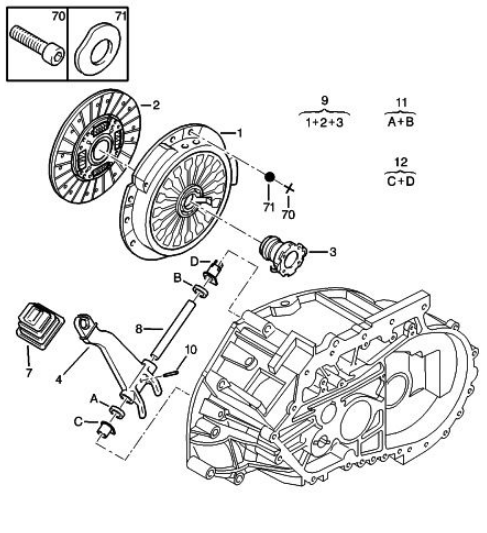

Click images to magnify
Here are the associated part numbers: The numbers on the table far left represent the numbers of the parts on the diagram.
Click images to magnify
Here are the associated part numbers: The numbers on the table far left represent the numbers of the parts on the diagram.
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37015
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: How can I find out what I have here?
As per your PM, here is the info for the Flywheel parts:
Click images to magnify
Anything else you need, let us know.
Click images to magnify
